Low Profile SMD Shielded Power Inductor Inductance Ranging 1uH - 100uH
Low Profile SMD Shielded Power Inductor Inductance Ranging 1uH - 100uH
Specifications
Brand Name :
Shinhom
Model Number :
SDRH6025/6028 Series
Certification :
RoHS
Place of Origin :
China
Inductance :
1.0 to 100uH
Current up to :
2.7A
Base :
SMD plastic base
Pad size :
6.3*6.3mm
Operating temperatures :
-40 to 105°C
Storage temperature :
-40 to 105°C
MOQ :
5000PCS
Packaging Details :
Carton
Delivery Time :
4~8 Weeks
Payment Terms :
T/T
Supply Ability :
1000000/MONTH
Price :
Negotiation
Description

SDRH6025/6028 Series Low-Profile SMD Type Shielded Inductors with Inductance Ranging From 1uh to 100uh

FEATURES:

  • With plastic base
  • Magnetically Shielded Structure
  • Low DC Resistance
  • Large current up to 2.7A
  • Compact and thin
  • Large current and low DC resistance
  • Lead-free
  • RoHS compliant
  • Magnetically shielded chip inductor
  • Shielded SMD power chip inductor
  • For high current and very low DCR
  • Re-flow and hand soldering are available
  • Good solder fillets and character prevents damage during soldering re-flow
  • Suitable for reflow soldering
  • More competitive prices and fast delivery service

COMMON APPLCATIONS:

  • Notebook computer
  • Battery power equipment
  • DC/DC converter
  • Digital camera and scanner
  • CD-ROM/DVD and PDA
  • Small size communication equipment
  • Filtering of supply voltages
  • Coupling, decoupling
  • Automotive electronics

TEST EQUIPMEN AND CONDITIONS:

Tested at 100kHz, 0.1Vrms/1KHz,0.1Vrms

Inductance: K=±10%,M±20%,N=±30%
DC current at which the inductance drops 10% (type) from its value without current
Operating temperatures: range -40 to 105°C

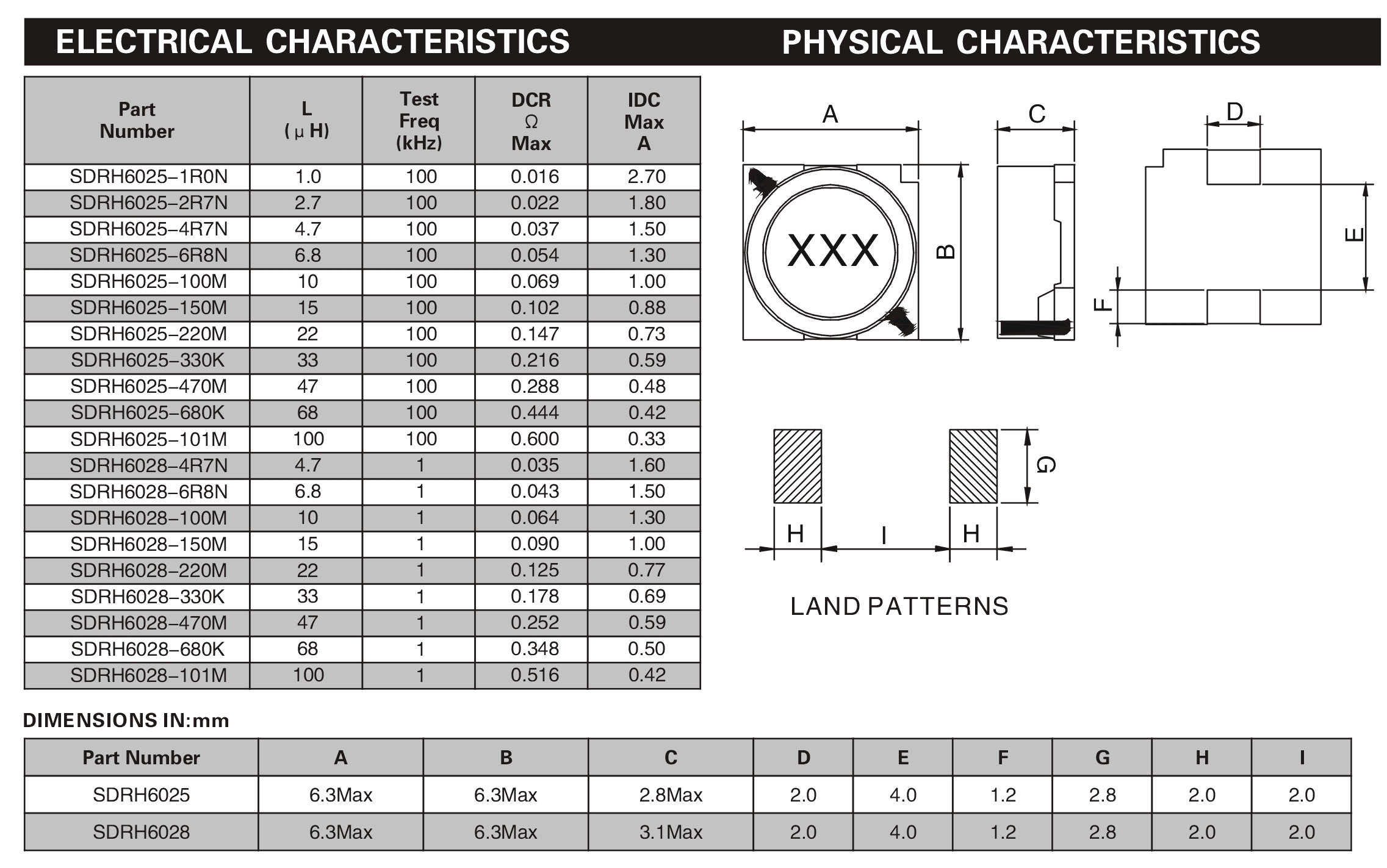

Electrical characteristics at 25°C:

Low Profile SMD Shielded Power Inductor Inductance Ranging 1uH - 100uH

Note: Product specifications can be customized.
