High Frequency Encapsulated Pcb Transformer Epoxy Encapsulated Transformer
High Frequency Encapsulated Pcb Transformer Epoxy Encapsulated Transformer
High Frequency Encapsulated Pcb Transformer Epoxy Encapsulated Transformer
High Frequency Encapsulated Pcb Transformer Epoxy Encapsulated Transformer
Specifications
Brand Name :
shinhom
Model Number :
PEE25
Certification :
RoHs
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000000/month
Delivery Time :
4-8 weeks
Packaging Details :
Carton
Frequency :
High frequency
Hi-Pot :
4.0KV
Potting :
Epoxy
Potting Color :
Black/Gray

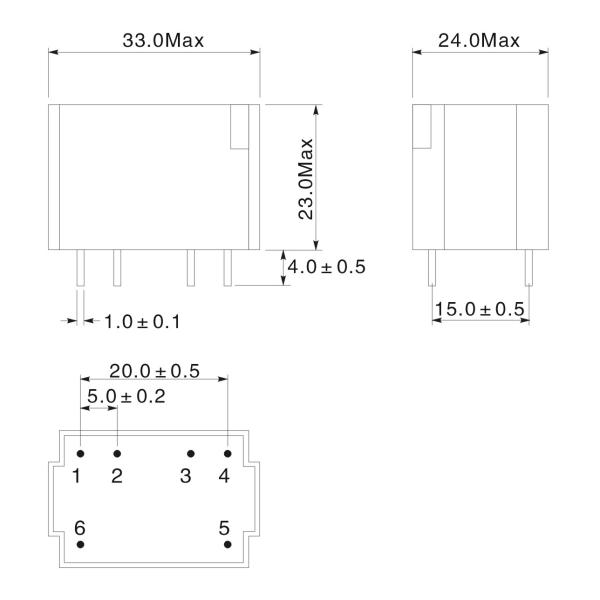

Pad :
33*24mm
Installation :
pcb
Description

High frequency Encapsulated pcb transformer,Epoxy encapsulated transformers

Electrical specification:

  1. Inductance(1-2): 68uH±15%@1KHz,0.25V
  2. Inductance(3-4): 17uH±15%@1KHz,0.25V
  3. Inductance(6-5): 1.25H±15%@1KHz,0.25V
  4. DCR(1-2): 37mΩ±30%@20℃
  5. DCR(3-4): 55mΩ±30%@20℃
  6. DCR(6-5): 307Ω±30%@20℃
  7. Hi-Pot: 4.0KVac,1mA,2S Pin2,3 to Pin6

Characteristics:

  1. acuum epoxy resin encapsulated,100℃/6hours High temperature aging,long woking life 20 years, and with high delectric strength.
  2. Reasonable structure,convenient installation,low noise,strong earthquake,airtight waterproof,moistureproof.
  3. Work temperature:-30℃~+70℃
  4. Insulation grade:B grade(130℃)
  5. UL94-V0
  6. Dielectric strength:4000V AC/min 5mA

High Frequency Encapsulated Pcb Transformer Epoxy Encapsulated Transformer

Note: Product specifications can be customized.

High Frequency Encapsulated Pcb Transformer Epoxy Encapsulated TransformerHigh Frequency Encapsulated Pcb Transformer Epoxy Encapsulated Transformer
