73A Surface Mount Transformer Planar Shape Pad Size 23.5mm * 19.5mm
73A Surface Mount Transformer Planar Shape Pad Size 23.5mm * 19.5mm
73A Surface Mount Transformer Planar Shape Pad Size 23.5mm * 19.5mm
73A Surface Mount Transformer Planar Shape Pad Size 23.5mm * 19.5mm
73A Surface Mount Transformer Planar Shape Pad Size 23.5mm * 19.5mm
73A Surface Mount Transformer Planar Shape Pad Size 23.5mm * 19.5mm
73A Surface Mount Transformer Planar Shape Pad Size 23.5mm * 19.5mm
73A Surface Mount Transformer Planar Shape Pad Size 23.5mm * 19.5mm
Specifications
Brand Name :
Shinhom
Model Number :
PE20
Certification :
RoHS
Place of Origin :
China
MOQ :
Negotiation
Packaging Details :
Carton
Delivery Time :
4~8 Weeks
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Price :
Negotiation
Type :
SMT high current Planar transformer
Current up to :
73A

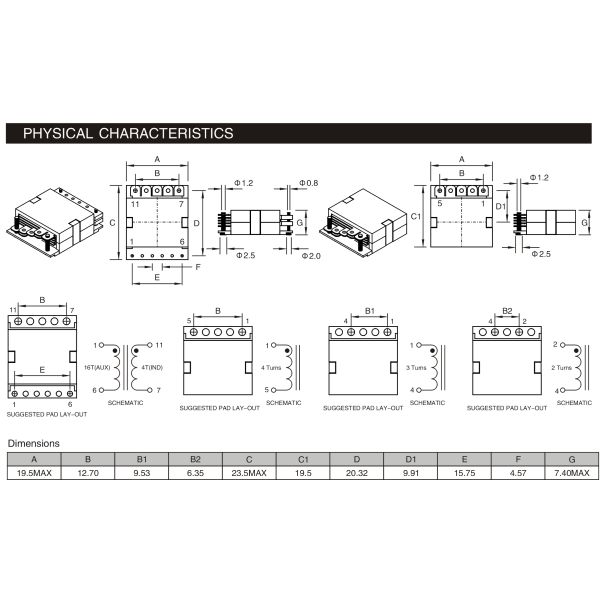

Pad size :
23.5*19.5mm
Thickness :
7.4mm
Operation temperature :
-40℃ to +130℃
Customized :
Customized
Description

Planar Transformer for DC/DC and DC/AC Converter,Current ranting up to 73A,Pad size 23.5mm*19.5mm

FEATURES:

  • Low-profile planar transformer
  • High-power planar transformer
  • High-frequency planar transformer
  • PCB planar transformer
  • Planar switching power transformer
  • EE14/EE16/ EE18/EE22/EE32/EE38/EE43/EE64/EE100 planartransformer
  • Off the shelf SMT planar transformer
  • Power range: up to 3000W
  • Very low Leakage Inductance (less than 0.2% for un-gapped cores).
  • Cost effective and competitive prices.
  • Minimum Electromagnetic Interference (EMI).
  • High specific power density (5W-25kW per one component).
  • High Creepage and Clearance distances between primary and
  • Applicable to all SMPS topologies.
  • Various mounting and terminals options (Horizontal, Vertical, Through-holes, SMT, Pins, Flying-cables and more).
  • Specially designed heat-dissipating Clasps.

APPLICATIONS:

  • High density and high energy efficiency.
  • High current DC/DC power supplies high current.
  • The main windings inductor serves as an output choke,
  • While the auxiliary windings controls, Input current to the PM(TI25S1604).
  • Telecommunications, industrial control systems,
  • Automotive and heavy equipment vehicle systems

TECHNICAL INFORMATION:

  • Inductance of PE 20s1604 measured on Agilient/HP4284 between pins 7 & 11 at 100kHz, 0.1 Vrms.
  • The IDC rated is either 85% of the IDC saturation or the IDC heating depending which is lower.
  • The IDC saturation is the current which causes the inductance to drop by 15% of its nominal value.
  • The IDC heating is the current which causes the temperature of the part to increase by approximately 45℃.

73A Surface Mount Transformer Planar Shape Pad Size 23.5mm * 19.5mm

73A Surface Mount Transformer Planar Shape Pad Size 23.5mm * 19.5mm

73A Surface Mount Transformer Planar Shape Pad Size 23.5mm * 19.5mm
