Radio Frequency Wideband Balun Transformer Coils With Enameled Copper Wire
Radio Frequency Wideband Balun Transformer Coils With Enameled Copper Wire
Radio Frequency Wideband Balun Transformer Coils With Enameled Copper Wire
Radio Frequency Wideband Balun Transformer Coils With Enameled Copper Wire
Radio Frequency Wideband Balun Transformer Coils With Enameled Copper Wire
Radio Frequency Wideband Balun Transformer Coils With Enameled Copper Wire
Radio Frequency Wideband Balun Transformer Coils With Enameled Copper Wire
Radio Frequency Wideband Balun Transformer Coils With Enameled Copper Wire
Specifications
Frequency :
5-3000MHz
Characteristic Impedance :
75Ω
RF power :
0.25W
DC current :
30mA
Operating temperature :
-40℃ to 85℃
Storage temperature :
-55℃ to 100℃
Brand Name :
Shinhom
Model Number :
RF3S-0059
Certification :
RoHS
Place of Origin :
China
MOQ :
Negotiation
Packaging Details :
Carton
Delivery Time :
4~8 Weeks
Payment Terms :
T/T
Supply Ability :
1000000/MONTH
Price :
Negotiation
Description

SMD Balun RF Transformers Coils with Enameled Copper Wire, Base Pin Terminal in Surface Mounting

Features:

  • 1: 1 Impedance
  • 75Ω Characteristic Impedance
  • RF power: 0.25W
  • DC current: 30mA

Applications:

  • For broadband and wireless communications
  • For VHF/UHF receivers/transmitters and push-pull amplifiers

ELECTRONICAL SPECIFICATIONS(25℃,Z=75Ω)

  • Frequency: 5-3000MHz
  • Operating temperature: -40℃ to 85℃
  • Storage temperature: -55℃ to 100℃

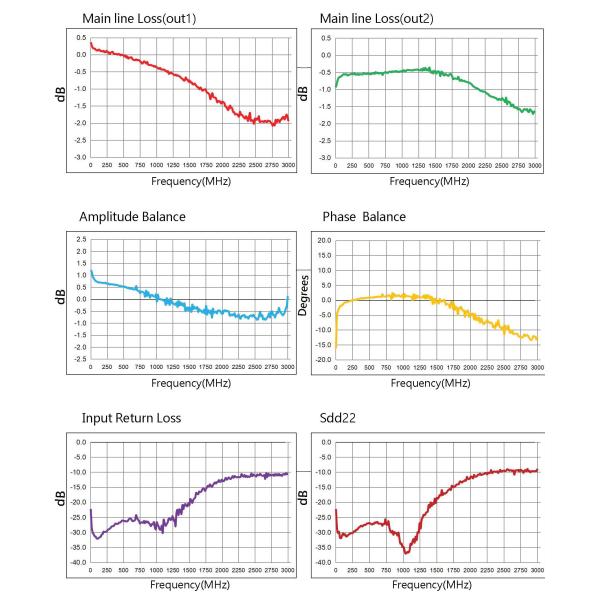

Parameter Test Conditions Units Min Typ Max
Main line Loss(out1) 5-3000MHz dB － 1.7 3.5
Main line Loss(out2) 5-3000MHz dB － 1.5 3.5
Amplitude Balance 5-3000MHz dB － ±0.5 ±1.0
Phase Balance 5-3000MHz Degrees － ±2.0 ±18.0
Input Return Loss 5-3000MHz dB 6.0 25.0 －
