Wound Molded SMD Chip Inductor , Ferrite Core Inductor Surface Mount
Wound Molded SMD Chip Inductor , Ferrite Core Inductor Surface Mount
Wound Molded SMD Chip Inductor , Ferrite Core Inductor Surface Mount
Wound Molded SMD Chip Inductor , Ferrite Core Inductor Surface Mount
Wound Molded SMD Chip Inductor , Ferrite Core Inductor Surface Mount
Wound Molded SMD Chip Inductor , Ferrite Core Inductor Surface Mount
Wound Molded SMD Chip Inductor , Ferrite Core Inductor Surface Mount
Wound Molded SMD Chip Inductor , Ferrite Core Inductor Surface Mount
Wound Molded SMD Chip Inductor , Ferrite Core Inductor Surface Mount
Wound Molded SMD Chip Inductor , Ferrite Core Inductor Surface Mount
Specifications
Brand Name :
Shinhom
Model Number :
AISM1008 Series
Certification :
RoHS
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000000/MONTH
Delivery Time :
4~8 Weeks
Packaging Details :
Carton
Working Frequency :
High Frequency
Size :
2.5*2.0*1.8mm
Structure of Magnetizer :
Ferrite Coil
Inductance :
10nH to 100uH
Type :
SMD Chip inductor
Current range :
60mA-530mA
Description

AISM1008 Series surface mount wound molded chip inductor,Multilayer Chip Beads SMD Ferrite core Inductor

Features:

  • Molded construction
  • Heat Resistant Molded Resin
  • Excellent Mechanical Strength
  • Excellent Solderability
  • High Reliability
  • Low Profile
  • Lead free are RoHS complaint
  • Sizes 1008 / 1210 / 1812 / 2220

Applcations:

  • VCRs DC/DC Converts
  • Video Cameras CTV, VCR HIC
  • Communication System
  • Automotive Systems
  • LCD/PDP Televisions
  • Hard Disk Drives
  • Network Systems
  • Computer Peripheral Equipment

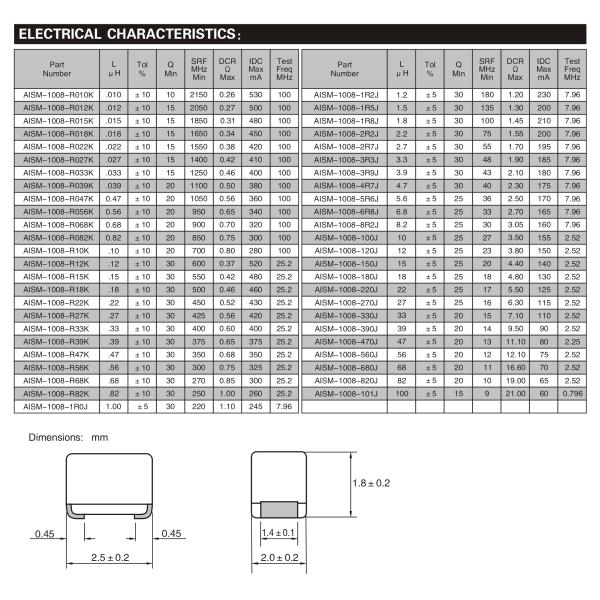

Technical information:

  • Testing: (Equivalent acceptable) Q: .010 μH to .10 μ H--HP4291A, 12μH to 100μH--HP4285A
  • SRF: .010μH to .10μH--HP8720B, 12μH to 100μH--HP4191A
  • RDC: QuadTech 1880 Milliohmmeter
  • Inductance:.010 μH to .10 μH--HP4291A: .12μH to 100μH--HP4285A
  • Solderability:90% Terminal coverage Preheat @ 230℃±5℃ for 5±.5 seconds Flux: Methanol solution with 25% colophony
  • IDC:The maximum DCvalue having L decrease within 10% and Temperature lncrease only 20℃ with the application of DC bias
  • Operating Temperature: -40℃ to +105℃
  • Storage Temperature: -40℃ to +105℃

Wound Molded SMD Chip Inductor , Ferrite Core Inductor Surface Mount

Notes: Product size and inductance can be customized
