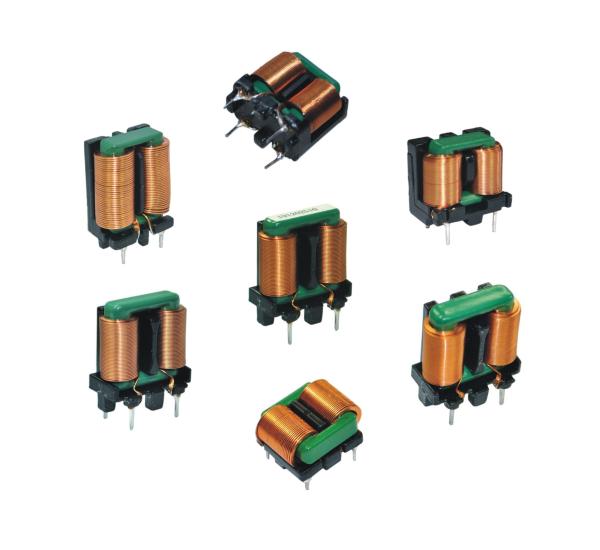

10kHz Common Mode Choke Coil Magnetic Core Flat Wire Inductor
10kHz Common Mode Choke Coil Magnetic Core Flat Wire Inductor
10kHz Common Mode Choke Coil Magnetic Core Flat Wire Inductor
10kHz Common Mode Choke Coil Magnetic Core Flat Wire Inductor
Specifications
Brand Name :
Shinhom
Model Number :
SQ
Certification :
RoHS
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000000/MONTH
Delivery Time :
4~8 Weeks
Packaging Details :
Carton
Wire :
Width 1.0-2.0mm, Thickness 0.1-0.5mm
Turns ratio :
1:1
Core :
Ferrite Hollow square
Test frequency :
10kHz
Type :
EMI Filter
Operating temperature :
-40ºC to +150ºC
Description

Common Mode Choke Coil , Flat Wire Inductor , Inductance Customized

Flat Wire Inductor High current, small profile, high efficiency with High frequency skin effect of flat wire, unit current density can reach 1.5-2 times of round copper wire, and the volume will be 0.5-1.0 times smaller under the same condition,Lower temperature coefficient, only around once layer winding, perfect efficiency of heat sink , the temperature raise is much lower than the toroidal inductor

FEATURES:

  • Rated voltage (V): 85 to 250V AC, 50/60Hz
  • Turns ratio: n1: n2=1:1
  • Insulation resistance: 100mΩ min at 500DC
  • Replacement for: EE16,EE19,EE25,EF16,EF20,EF25,UU10.5, UU16,toroidal common mode inductors
  • Interturn capacitance is smaller than toroidal core, high insulation strength and high reliability
  • The closed magnetic core design
  • Single phase winding, thereby dramatically reduce stray capacitance
  • EMI suppression is excellent
  • Fully automatic winding, neat line arrangement, no overlapping, high production efficiency, low labor

APPLICATION:

  • Switching power supply, Adapter and UPS
  • Computer products
  • LED power supply
  • LCD TV & Monitor Displays Power Boards
  • Consumer Electric Products & Battery Charger, Printers

Notes: Customized is available
