RoHS / SGS / ISO16949 Pulse Transformers For Broadband PLC System
RoHS / SGS / ISO16949 Pulse Transformers For Broadband PLC System
RoHS / SGS / ISO16949 Pulse Transformers For Broadband PLC System
RoHS / SGS / ISO16949 Pulse Transformers For Broadband PLC System
RoHS / SGS / ISO16949 Pulse Transformers For Broadband PLC System
RoHS / SGS / ISO16949 Pulse Transformers For Broadband PLC System
Specifications
Brand Name :
Shinhom
Model Number :
GT2011
Certification :
RoHS/SGS/ISO16949
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000000/MONTH
Delivery Time :
4~8 Weeks
Packaging Details :
Carton
Name :
Pulse Transformer
Product name :
Broadband PLC transformer
Turns ratio :
1 : 1：1
Operating temperature :
-20 ℃to +85℃
Hi-pot :
up to 3.2KV
Description

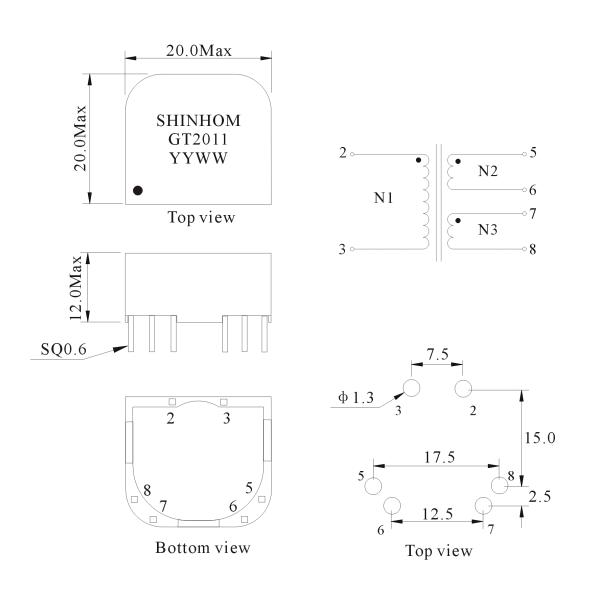

Pulse transformers for broadband PLC system

Turns ratio: N1:N2:N3=1:1:1

Inductance(N1=N2=N3): 0.8mH+50%/-30%@10KHz,0.1V

Lk: 25uH Max@10KHz,0.1V

DCR(N1=N2=N3): 0.4Ω±20%

Voltage-time area : 200V*us Min

Rise time: 1.5uS Max

Trigger current: 0.25A

Load resistance: 40Ω

Power dissipation: 0.7W

Coupling capacity: 30pF Max@100KHz,1V

Working voltage: 700VRMS Max

Hi-Pot: 3200VAC,50Hz,2S N1 to N2,N3

3200VAC,50Hz,2S N2 to N3

Operating temperature: -20℃ to +85℃

Storage temperature: -30℃ to +70℃
