High Strength Spiral Bevel Gear for Crusher Reducers
High Strength Spiral Bevel Gear for Crusher Reducers
Specifications
Brand Name :
Ruida
Model Number :
custom made
Certification :
ISO9001
Place of Origin :
Hunan,China
MOQ :
1
Price :
Negotiable
Payment Terms :
50% T/T, 50% T/T before shipment
Supply Ability :
5000 sets/year
Delivery Time :
45-60 days
Packaging Details :
wooden packing
Accuracy Grade :
grade 5-8 (depond on requirementt)
machinery test report :
Provided
Material :
Carbon Steel, Alloy Steel, Etc.（Customizable)
Teeth Number :
Based On Drawings
Description

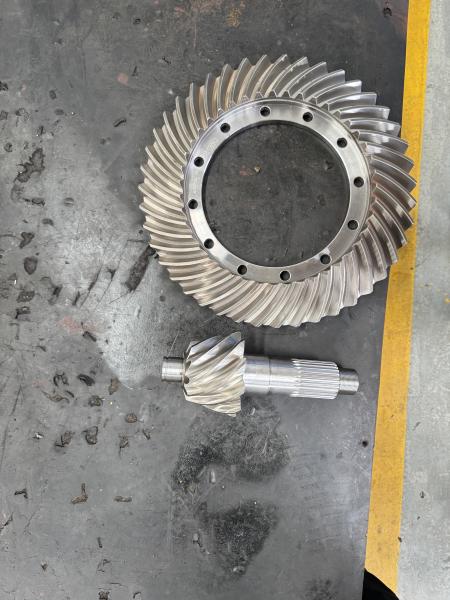

High Strength Large Spiral Bevel Gear Crusher Reducer Accessories

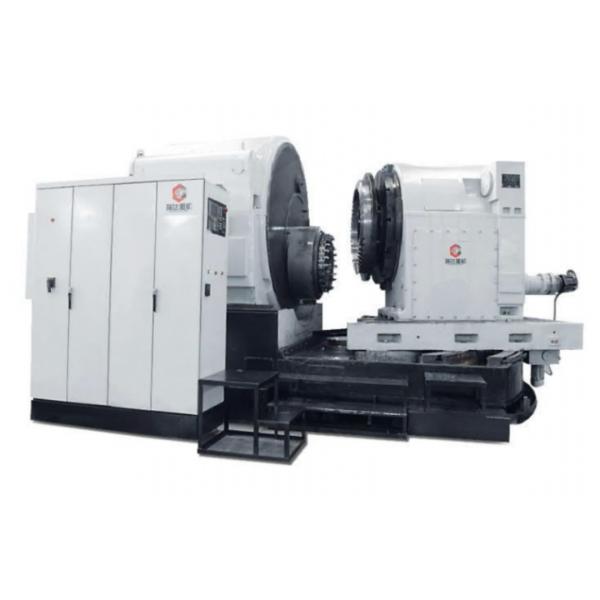

Bevelgear milling machines

Our company possesses a series of spiral bevel gearmiling machines with different processing specifications.with a processing range of 50mm to 2300mm, which issufficient to meet the majority of the market's requirementsfor spiral bevelgear milling processing.

Device Name Bevel gear milling machines
Max.workplece diameter 50mm-2000mm
Max.module range 2-40mm
Max.workpiece shaftdiameter diameter220mm, axiallength 1300mm
Geartoothtype 2000sets/year
Highest machining accuracy DIN 3965-86 grade7
production capacity 2000 sets/year
Spiralanglerange 0-50°
Max.face width 10-350mm
Axioloftset ±50-100mm
