High Precision Viscose Spinneret With Aperture Tolerance 0.002mm HV600-700 Hardness
High Precision Viscose Spinneret With Aperture Tolerance 0.002mm HV600-700 Hardness
High Precision Viscose Spinneret With Aperture Tolerance 0.002mm HV600-700 Hardness
High Precision Viscose Spinneret With Aperture Tolerance 0.002mm HV600-700 Hardness
High Precision Viscose Spinneret With Aperture Tolerance 0.002mm HV600-700 Hardness
High Precision Viscose Spinneret With Aperture Tolerance 0.002mm HV600-700 Hardness
Specifications
Chemical Resistance :
Acid / Solvent Resistant
Industry :
Textile Machinery / Composite Material Equipment
Optional Material :
Tungsten Carbide / Ceramic Insert
Surface Treatment :
Polishing / Hard Coating / Ceramic Coating
Working Temperature :
Customized
Packaging Details :
Wooden box
Product Name :
Fiber Spinneret/Spinning Plate / Spinneret Plate / Filament Spinneret
Base Material :
Stainless Steel / Alloy Steel / Nickel Alloy
Certification :
ISO9001
MOQ :
No MOQ
Wear Resistance :
High
Brand Name :
Meet Precision
Application :
Fiber Production Line
Corrosion Resistance :
Excellent
Place of Origin :
Hunan, China
Description
High Quality Viscose Spinneret for High-Precision Hole Design
We specialize in customizing various types of spinnerets according to specific customer requirements for fiber production applications.
Applications
Our spinnerets are widely used in the production of Lycel fiber, viscose fiber, carbon fiber, aramid, Vinylon, polyamide, acrylic fiber, glass fiber, and other synthetic fibers.
Product Features
  • Excellent consistency of aperture and pitch dimensions
  • Minimal non-roundness of holes for precision performance
  • High surface finish and smooth passage
  • Easy to maintain and clean for extended service life
  • Superior research and development capabilities
Detailed Product Specifications

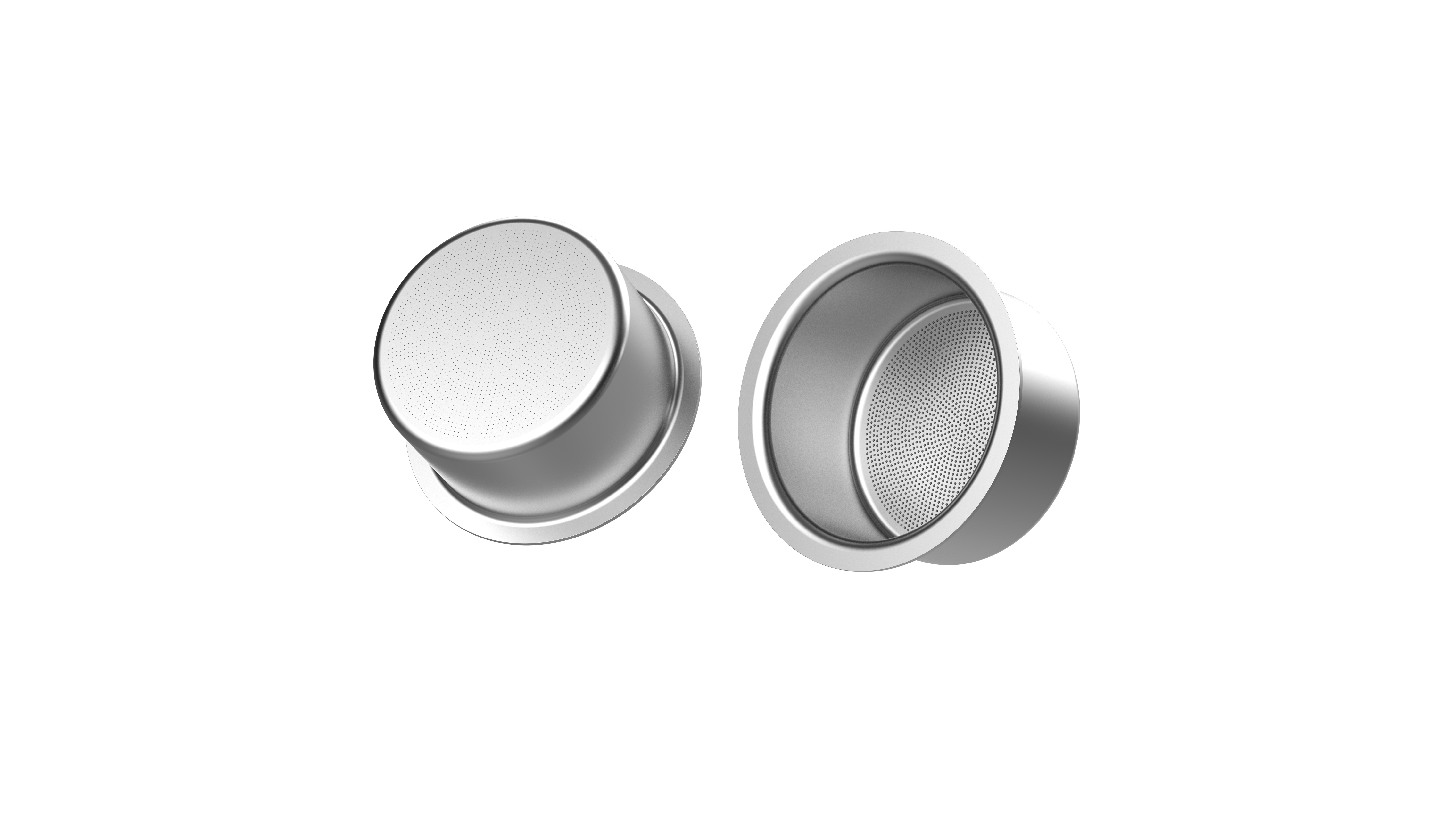

ф16x2300xф0.055 Cap-shaped Spinneret
Used for wet spinning of viscose staple fiber
Characteristics
Good consistency of aperture and pitch. The non-roundness of the hole is small with high finish of surface and passage.
Parameter Control
  • Aperture tolerance: 0.002mm
  • Pitch-row tolerance: <0.02mm
  • Surface roughness: Ra≤0.1 on spinneret surface, Ra≤0.1 on straight hole surface
  • Ra≤0.2 on guide hole surface, and the rest is Ra≤0.4
  • Non-roundness of the hole: <0.002mm
  • Circle spacing tolerance: <0.02mm
  • Hardness: HV600~700

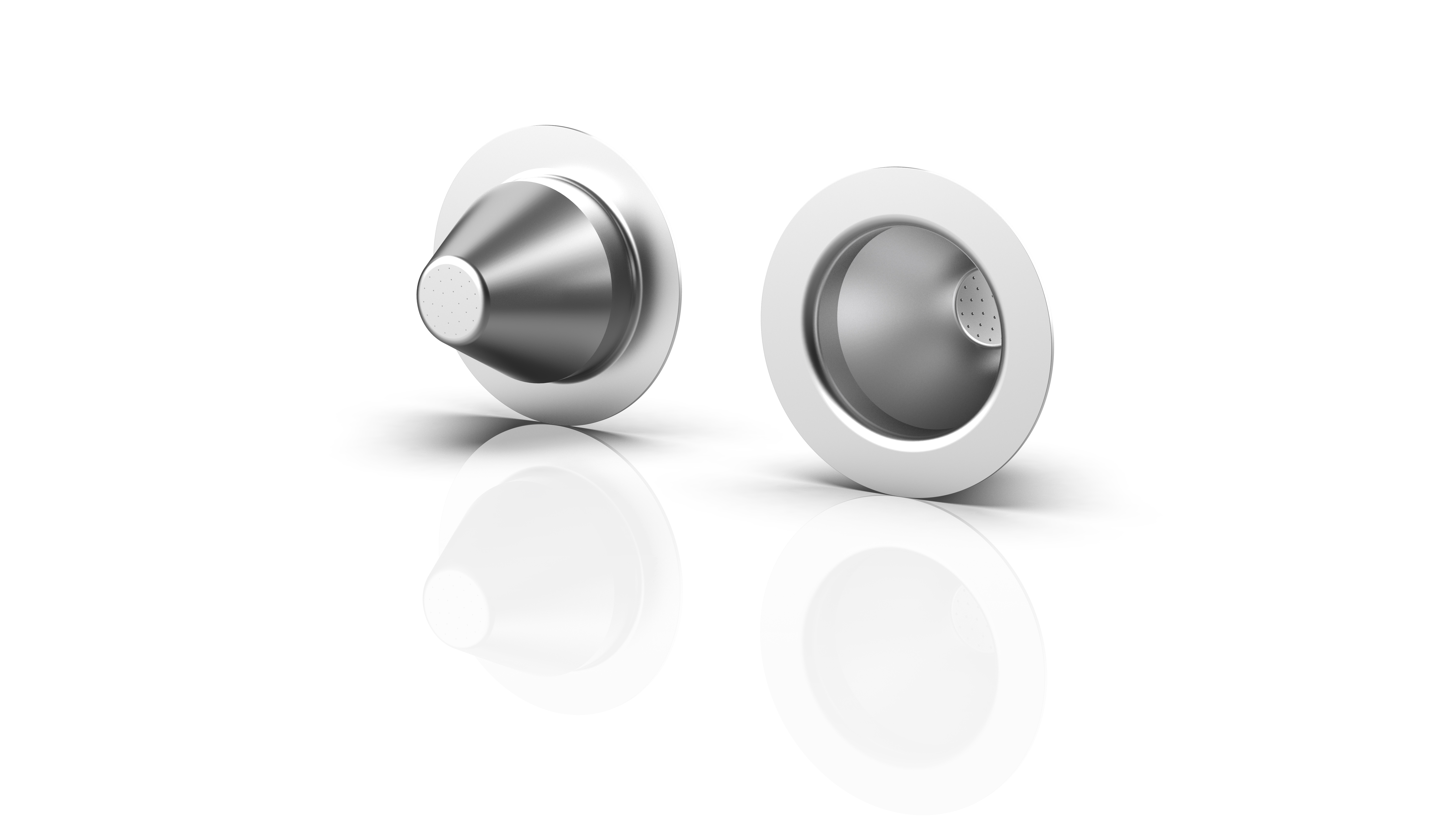

ф12-5x30xф0.078 Tapered Nozzle Head
Used for wet spinning of viscose filament
Characteristics
Good consistency of aperture and pitch. The non-roundness of the hole is small with high finish of surface and passage.
Parameter Control
  • Aperture tolerance: 0.002mm
  • Pitch-row tolerance: <0.02mm
  • Surface roughness: Ra≤0.1 on spinneret surface, Ra≤0.1 on straight hole surface
  • Ra≤0.2 on guide hole surface, and the rest is Ra≤0.4
  • Non-roundness of the hole: <0.002mm
  • Circle spacing tolerance: <0.02mm
  • Hardness: HV600~700
