Customized Chemical Fiber Spinning Spinneret Carbon Fiber Spinneret Stainless Steel
Customized Chemical Fiber Spinning Spinneret Carbon Fiber Spinneret Stainless Steel
Customized Chemical Fiber Spinning Spinneret Carbon Fiber Spinneret Stainless Steel
Customized Chemical Fiber Spinning Spinneret Carbon Fiber Spinneret Stainless Steel
Customized Chemical Fiber Spinning Spinneret Carbon Fiber Spinneret Stainless Steel
Customized Chemical Fiber Spinning Spinneret Carbon Fiber Spinneret Stainless Steel
Customized Chemical Fiber Spinning Spinneret Carbon Fiber Spinneret Stainless Steel
Customized Chemical Fiber Spinning Spinneret Carbon Fiber Spinneret Stainless Steel
Specifications
Chemical Resistance :
Acid / Solvent Resistant
Corrosion Resistance :
Excellent
Optional Material :
Tungsten Carbide / Ceramic Insert
Wear Resistance :
High
Place of Origin :
Hunan, China
Brand Name :
Meet Precision
Working Temperature :
Customized
MOQ :
No MOQ
Packaging Details :
Wooden box
Certification :
ISO9001
Industry :
Textile Machinery / Composite Material Equipment
Application :
Fiber Production Line
Product Name :
Fiber Spinneret/Spinning Plate / Spinneret Plate / Filament Spinneret
Base Material :
Stainless Steel / Alloy Steel / Nickel Alloy
Surface Treatment :
Polishing / Hard Coating / Ceramic Coating
Description

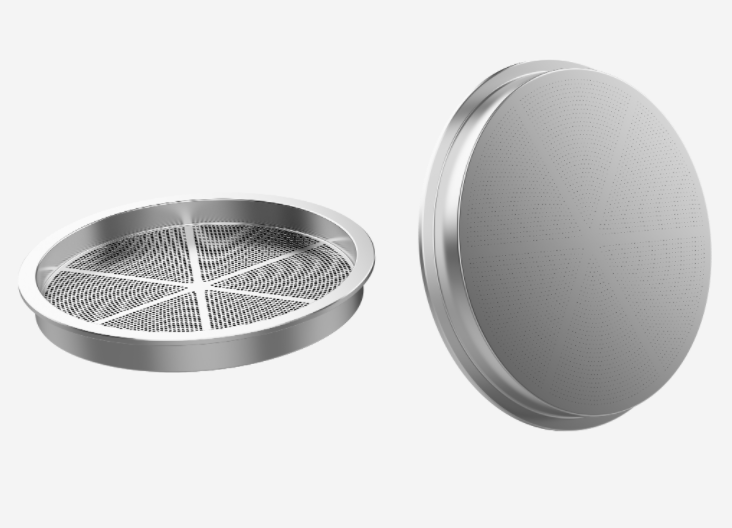

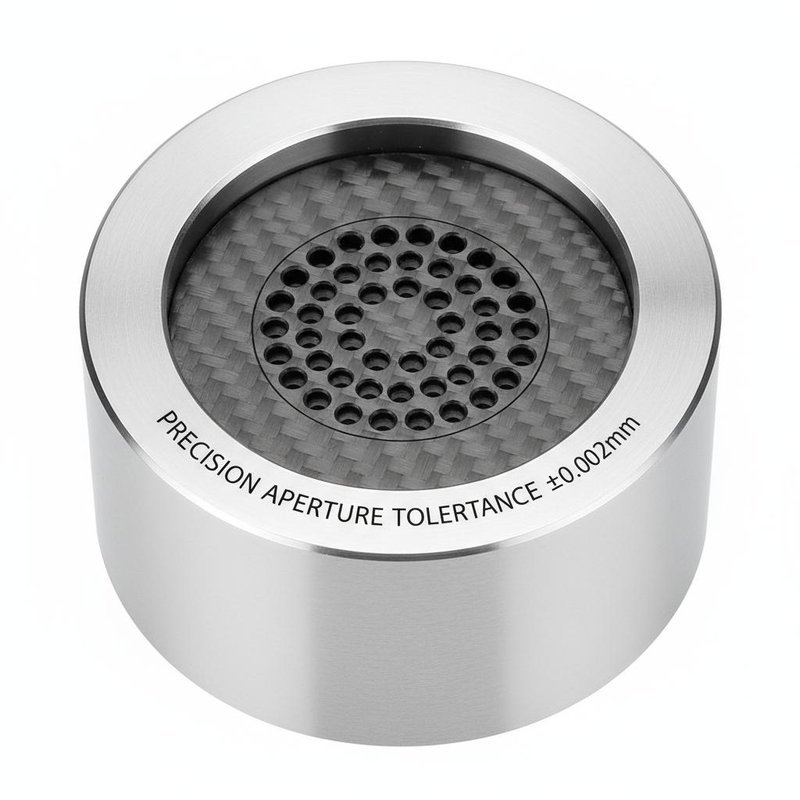

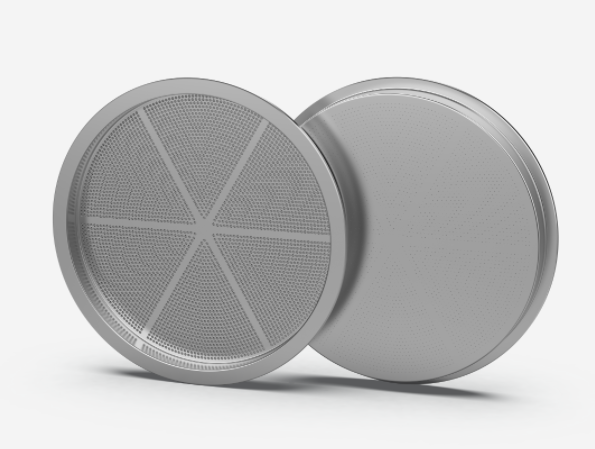

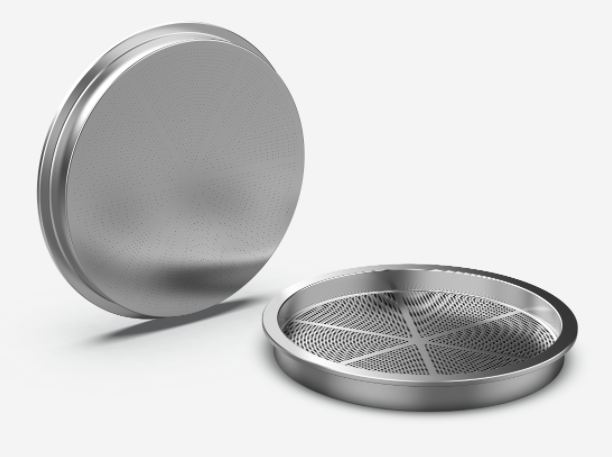

High Quality Spinneret for Chemical Carbon Fiber
Customized Carbon Fiber Spinneret for Textile Machine. Premium stainless steel chemical fiber spinneret designed for spinning machines, specifically engineered for wet drying high-quality Carbon Fiber production.
Custom Manufacturing Capabilities
We specialize in customizing various types of spinnerets according to specific customer requirements for fiber production applications.
Applications
Our spinnerets are widely used in the production of Lyocell fiber, viscose fiber, carbon fiber, aramid, Vinylon, polyamide, acrylic fiber, glass fiber, and other synthetic fibers.
Product Features
  • Excellent consistency of aperture and pitch dimensions
  • Minimal non-roundness of holes for precision performance
  • High surface finish and smooth passage
  • Easy to maintain and clean for extended service life
  • Superior research and development capabilities
Technical Specifications
ф74x2000xф0.08 Cap-shaped spinneret
Used for carbon fiber, aramid fiber and other dry jet wet spinning
Characteristics
Good consistency of aperture and pitch. The non-roundness of the hole is small, with high finish of surface and passage.
Parameter Control
Parameter Specification
Aperture Tolerance ±0.002mm
Pitch-Row Tolerance <0.02mm
Non-roundness of the Hole <0.002mm
Surface Roughness (Spinneret Surface) Ra≤0.1
Surface Roughness (Straight Hole Surface) Ra≤0.1
Surface Roughness (Guide Hole Surface) Ra≤0.2
Surface Roughness (Remaining Areas) Ra≤0.4
Hardness HV600~700
