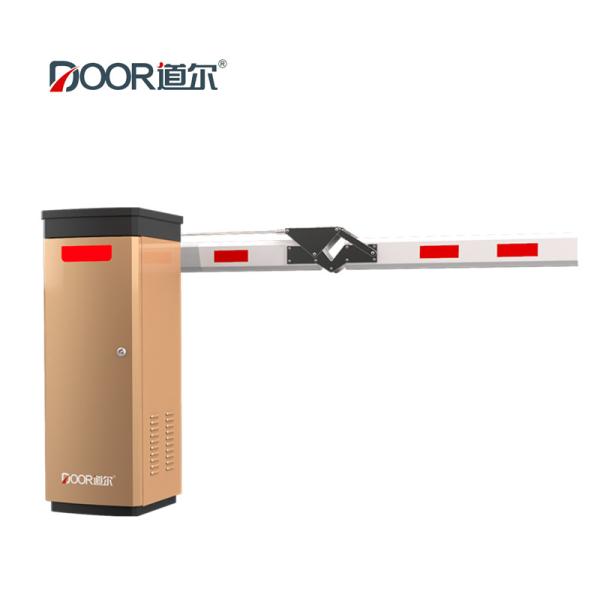

6M Boom Barrier Gate for Parking Lots IP55 Rated
6M Boom Barrier Gate for Parking Lots IP55 Rated
Specifications
Brand Name :
DOOR
Model Number :
DR.DZ.02
Certification :
CE / IS09001
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
3000 sets per month
Delivery Time :
5-7 working days
Packaging Details :
Cartons
Boom Length: :
Max 6M (Customized)
Level :
IP55
Color :
Silver-black(other colors can be customized)
Warranty :
1 Year
Application :
Parking Lot / Entry&Exit
UP/Down Speed: :
1s,3s,6s
Voltage :
AC110V/AC220V
Length Type :
Straight / Folding / Fence
Dimensions :
L340*W305*H1050mm
Motor Wattage :
120W
Arm to ground :
0.85M
Arm opening time :
6s, 3s, 1s optional
Straight arm length :
Straight Arm:＜6m
Folding arm length :
≤ 4.5m
Two-fence arm length :
≤ 4.5m
Three-fence arm length :
＜ 4m
Working temperature :
-20℃-+65℃
Description
Optimized Description:
  1. Manual Release & Reset: Features an advanced manual release mechanism for quick arm operation during power failure. Automatically resets to standard operation upon power restoration.
  2. Smooth Boom Operation: Boom movement is powered by a motor-driven crankshaft transmission system, ensuring exceptionally smooth and reliable operation.
  3. Remote Control: Supports remote control operation for raising and lowering the barrier arm.
  4. Safety Features:
    • Auto-Reverse: The boom automatically reverses direction if it encounters an obstruction during descent.
    • Auto-Stop (Optional): Offers an optional mode where the boom stops immediately upon detecting an obstruction.
  5. Obstruction Detection Interfaces:
    • Infrared Photocells Interface: Ready for integration with infrared safety beams (photocell device required).
    • Loop Detector Interface: Ready for integration with vehicle detection loops (loop detector required). Enables:
      • Obstruction avoidance (prevents boom from hitting vehicles).
      • Automatic lowering of the boom after a vehicle passes through.
  6. Communication & Control:
    • Integrated RS485: Provides an industrial-standard RS485 communication interface for computer-controlled operation (raise, lower, stop).
    • Traffic Light Interface: Includes a dedicated interface for connecting and synchronizing with traffic signal lights.
  7. Advanced Counter & Auto-Closing Logic:
    • Integrated Counter: Tracks and stores the number of valid opening signals received.
    • Auto-Deduct & Lower: Automatically deducts a count upon confirmed vehicle passage (via loop detector) and lowers the boom afterward, significantly improving traffic flow efficiency.
    • Auto-Closing Function: Works in coordination with the counter:
      • If the number of vehicles passed is less than the stored opening signal count, the boom initiates a countdown to automatic lowering.
      • The countdown timer is reset upon receiving a new "raise" signal or a vehicle detection signal from the loop detector.
