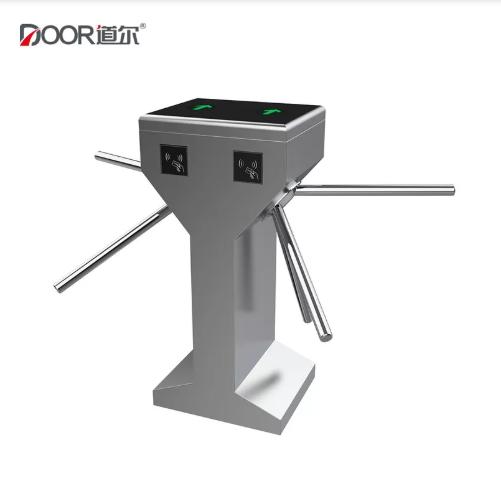

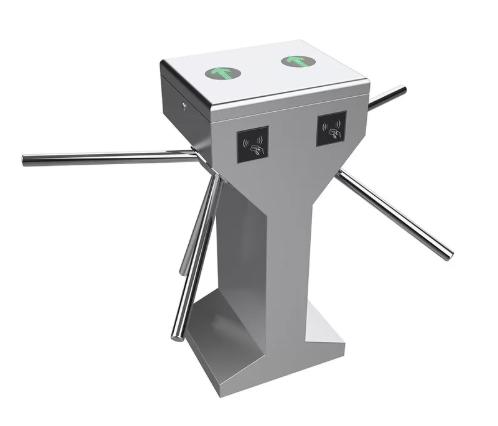

Industrial Heavy-Duty Tripod Turnstile with SUS304 Stainless Steel
Industrial Heavy-Duty Tripod Turnstile with SUS304 Stainless Steel
Industrial Heavy-Duty Tripod Turnstile with SUS304 Stainless Steel
Industrial Heavy-Duty Tripod Turnstile with SUS304 Stainless Steel
Specifications
Brand Name :
DOOR or OEM
Model Number :
DRTD6371XS
Certification :
CE / IS09001
Place of Origin :
China
MOQ :
2 sets
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
2500 sets per month
Delivery Time :
5-7 working days
Packaging Details :
wood carton
Material :
304# Stainless Steel
Suitable For :
Access Control, Entrance And Exit Control
Turnstile Material :
SUS304 Stainless
Communication Interface :
RS485 TCP/IP
Power Supply :
AC110/AC220+/-10%
Swing arm available :
Acrylics Or Tempered Glass
Driving Motor :
DC24V Brushless Motor
Opening Signal Input: :
Dry Contact
Working environment :
-20℃-+60℃
Pass speed :
20 personal/min
Support System :
Face Recognition,ic/id Card,fingerprint
Motor :
DC24V Brushless Motor
Passage Width :
500mm
IP Rating :
IP55
Mean Cycles Between Failure :
20 million times
Voltage :
AC110V/AC220V±10% 50-60Hz
Operating Power :
30W
Method of position :
Motor Driving
Mtbf :
5 Million Times
Size :
L420*W330*H9800mm
Opening Speed :
1s
Odm/oem: :
Accepted
Description
LumenSync Turnstile / LumenSync Gate
Product Specifications

▍Structural Integrity
・Armor-Graded SUS304｜Brushed Finish Anti-Vandalism
・Reinforced Body: 2.0mm Top Cover + 1.5mm Full-Wrap Steel Shell
・Heavy-Duty Tripod Arm: Ø32mm Stainless Steel Tube
・Dimensions: 420(L)×330(W)×980(H)mm (Compact Footprint)

▍Performance Engineering
・HyperFlow Passage:550mm Clear Width｜20+ Persons/Min (30% Faster Than Industry Avg.)
・Lightning Access: 1s Opening Response｜5ms Motor Activation
・Extreme Environment Ready: -20℃~60℃ Operation｜IP55 Shield (Dust/Jet Water Resistant)
・Military Durability: 5 Million MCBF｜20-Year Corrosion Resistance

Key Features
  • Seamless Third-Party Integration: Compatible with industry-standard access control devices (IC/ID card readers, QR code scanners, facial recognition terminals, etc.).
  • Emergency Safety: Dedicated fire button interfaces with the system for automatic gate release during emergencies.
  • High-Speed Detection: 8 military-grade infrared sensors with advanced algorithms prevent tailgating, reverse passage, and clamping.
  • Enhanced Safety: Multi-layer anti-pinch design and optional widened lane for luggage/wheelchair access.
  • Seamless Integration: Compatible with RS485, TCP/IP (optional), and dry contact interfaces, works with all major access control systems.

(Note: Recognition systems not included; product provides standardized connection interfaces only)

Applications

Widely used for official or corporate buildings, sectioning off certain areas in University lab access points, industrial buildings or hospital radiology departments.

Customization Options
  • Customized logo (Min. order: 2 pieces)
  • Customized packaging (Min. order: 2 pieces)
  • Graphic customization (Min. order: 2 pieces)
Supplier's Customization Ability
  • Minor customization
  • Drawing-based customization
  • Sample-based customization
  • Full customization
