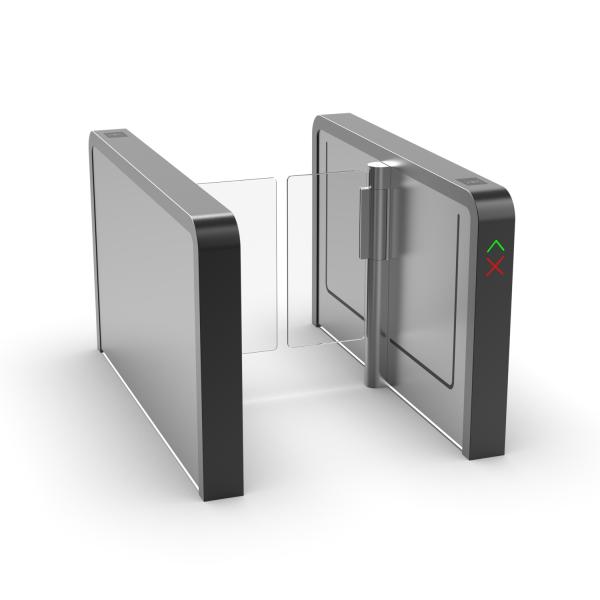

High Speed Swing Turnstile Gate with RFID QR Code Access Control
High Speed Swing Turnstile Gate with RFID QR Code Access Control
High Speed Swing Turnstile Gate with RFID QR Code Access Control
High Speed Swing Turnstile Gate with RFID QR Code Access Control
High Speed Swing Turnstile Gate with RFID QR Code Access Control
High Speed Swing Turnstile Gate with RFID QR Code Access Control
High Speed Swing Turnstile Gate with RFID QR Code Access Control
High Speed Swing Turnstile Gate with RFID QR Code Access Control
High Speed Swing Turnstile Gate with RFID QR Code Access Control
High Speed Swing Turnstile Gate with RFID QR Code Access Control
High Speed Swing Turnstile Gate with RFID QR Code Access Control
High Speed Swing Turnstile Gate with RFID QR Code Access Control
Specifications
Brand Name :
DOOR or OEM
Model Number :
DR.TD.6629
Certification :
CE / IS09001
Place of Origin :
China
MOQ :
1 lane
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
2500 sets per month
Delivery Time :
5-7 working days
Packaging Details :
Plywood box ，L1600×W140×H1000mm
Material :
SUS304 Stainless Steel + Aluminum Alloy
Working environment :
-25℃-+70℃
Pass speed :
35-40 personal/min
Motor :
Servo motor
Photocell :
12 pairs
Passage Width :
Standard 600mm, max 900mm
Swing arm available :
Acrylic
IP Rating :
IP42
Mean Cycles Between Failure :
20 million times
Voltage :
AC110V/AC220V±10% 50-60Hz
Operating Power :
Single Core 100w, dual core 200w
Method of position :
Motor + clutch + encoder
Description
Customization options
Customized logo (Min. order: 2 pieces)
Customized packaging (Min. order: 2 pieces)
Graphic customization (Min. order: 2 pieces)
+1 more options
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.


High-End Screwless Fast Speed Turnstile Gate With 0.3S Servo Motor
Discriptions of pedestrian speed gate turnstile
The speed gate top cover is made of aluminum alloy, the body is made of stainless steel and brushed SUS304 thickness 2.0mm, which is matched with elegant champagne gold
The turnstile top cover aluminum alloy surface is anodized after sandblasting. It is bright,delicate and smooth
Traditional mortise and tenon process design, the appearance of the whole machine has no screws and no keyholes.
The new design is Industry new trend that come with hidden infrared design, the infrared are hidden between double tempered glass
The gap between the top cover and side cover of the whole machine and the body without filler is less than 0.2mm, showing the craftsman spirit
The servo motor running come with and self-developed FOC control technology, which can effectively accurately control and locate the moving position and force of the door. Realize the stability and mute control of the door during operation.
Open door time as fast as 0.3 seconds.


Functions
Anti-trailing function:
Multiple sets of infrared beam monitoring can pass one person and one card to personnel,to prevent trailing and alarm prompt.
Anti-reverse:
Precise actuarial calculation,infrared beam monitoring,reverse passage,automatic blockade of channels,voice alarm prompt.
Anti-clip and anti-collision monitoring:
Triple safety protection mechanism to ensure the safe passage of person
A.Infrared anti-clip and anti-collision
B.Passing process logic anti-pinch and anti-collision
C.Current detection anti-clamp and anti-collision

More optional for Speed Gate DRTD6629

Slim speed gate optional

High Speed Swing Turnstile Gate with RFID QR Code Access Control

High Arm Speed Gate

High Speed Swing Turnstile Gate with RFID QR Code Access Control

Screwless Speed Gate Dimension

High Speed Swing Turnstile Gate with RFID QR Code Access Control

Applications for Speed Gate Turnstile
This new released speed gate can use at office and administrative buildings,Ministries and public buildings.Banks and financial institutions,Industrial installations, Residential areas,Schools, colleges and universities


Packing details of Speed Gate
Size: 169*34*118mm
GW: Side cabinet: 125kg
Middle cabinet: 135kg
