Specifications
Place of Origin :
Guangdong, China
Brand Name :
3nh
Model Number :
CR8
IP Rating :
IP68
Type :
Portable Colorimeter
Operating Temperature :
0℃~40℃
Light Source :
Spectral Lamps
Communication Method :
Bluetooth
Wavelength Resolution :
5nm
Model :
CR8
Product name :
Spectrophotometer
MOQ :
1pcs
Certificate :
CE, ROHS
Color :
White
Package :
Carton box
Size :
81X71X214 mm
Brand :
3NH
Feature :
8mm
Customized support :
OEM
Description
Products Description
8mm Digital Portable Spectrometer LED Economic Colorimeter for Factory Lab Testing 3nh New Title

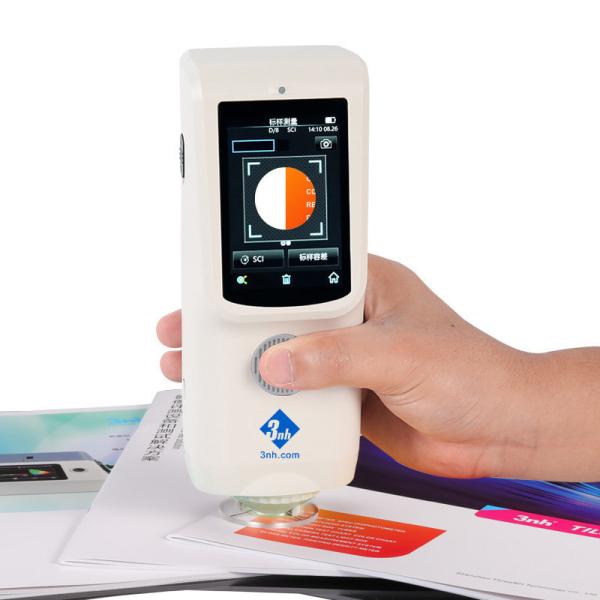

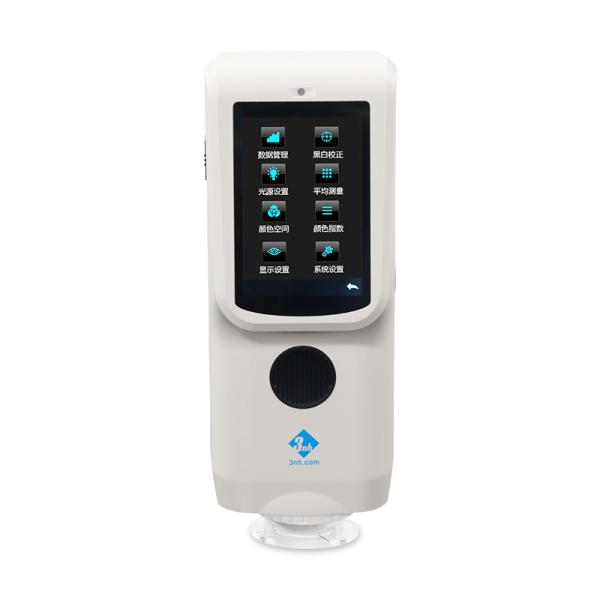

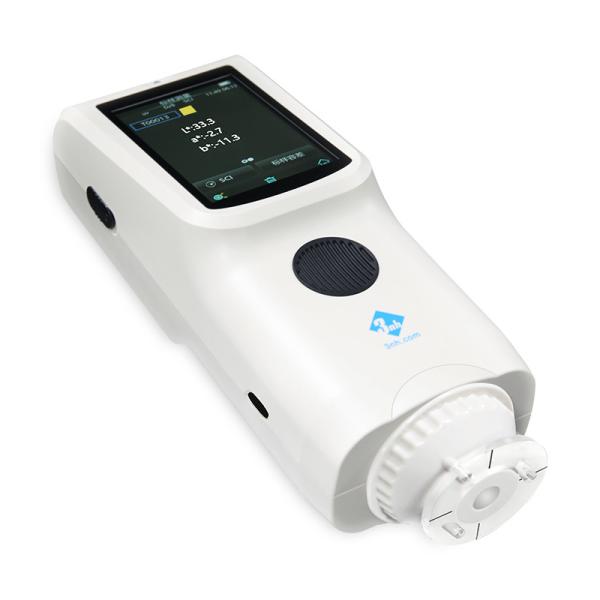

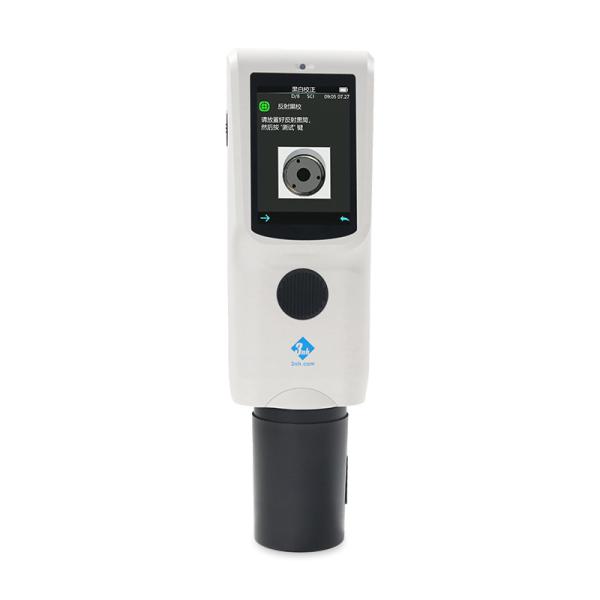

CR8 Portable Colorimeter

CR8 realizes the two-in-one spectrophotometer and spectrocolorreader, easy to use and not expensive. It is a masterpiece that integrates high precision, high performance, and high cost performance.
Product Paramenters
The CR8 (Professional) is a portable spectrophotometer developed by 3nh using its own core technology of spectroscopy. It uses a built-in silicon photodiode array (dual-row 24 groups) sensor, an imported white board, and the repeatability ΔE*ab can be easily controlled within 0.04. CR8's powerful performance configuration and excellent inter-instrument error make color measurement more professional, while also ensuring the consistency of measurement data of multiple devices. The CR8 spectrocolorreader takes into account the measurement speed and the convenience of operation at the same time. The color can be controlled through the PC-side software, and it can also be seamlessly connected to the mobile device through Bluetooth.It greatly expands the application space of the colorimeter, and makes the traditional colorimeter glow with a different application charm.
8mm Digital Portable Spectrometer LED Economic Colorimeter for Factory Lab Testing 3nh New Title
8mm Digital Portable Spectrometer LED Economic Colorimeter for Factory Lab Testing 3nh New Title
8mm Digital Portable Spectrometer LED Economic Colorimeter for Factory Lab Testing 3nh New Title
Model
CR8 (Professional)
Optical geometry
D/8 (diffuse illumination, 8° direction reception)
SCI measurement
Comply with standard CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Characteristics
Customized single measurement aperture for accurate color difference control in plastic and electronic, paint and ink, textile and
garment printing and dyeing, printing, ceramics and other industries
Integrating sphere size
Φ40mm
Light source
Combined full-spectrum LED light source
Spectroscopic method
Planar grating
Sensor
Silicon photodiode arrays (dual row 32 groups)
Wavelength range
400~700nm
Wavelength interval
10nm
Semiband Bandwidth
10nm
Measurement range
L:0~120
Reflectivity: the instrument can test the reflectivity at 3 specific wavelengths specified by the user (default 440nm, 550nm,
600nm), APP can realize the full-band wavelength display
Measurement aperture
Single aperture: Φ8mm ( Φ4mm optional)
Focusing method
Fixed Focus
Specular component
SCI
Color space
CIE LAB,XYZ,Yxy,LCh
Color difference formula
ΔE*ab,ΔE*00
Other colorimetric indexs
Multiple colorimetric indexs are realized through APP
Observer angle
10°
Illuminant
D65,A,F2(CWF)
Displayed data
Reflectivity(at 3 specific wavelengths specified by the user)chromaticity value, color difference value/graph, pass/fail result,
color simulation, color offset
Display Accuracy
0.01
Measurement time
Approx. 1.5s
Repeatability
Chromaticity value: MAV/SCI, ΔE*ab within 0.04 (When a white calibration plate is measured 30 times at 5 second intervals after
white calibration)
Inter-instrument error
MAV/SCI, within ΔE*ab 0.35(Average for 12 BCRA Series II color tiles)
Measurement method
Single measurement, average measurement (2~99 times)
Locating method
Stabilizer locating
Size
LxWxH=81X71X214mm
Weight
About 460g
Battery power
Lithium battery, 6000 times in 8 hours
Illuminant life span
5 years, more than 3 million times measurements
Display
TFT true color 3.5inch, capacitive touch screen
Data port
USB, Bluetooth® 5.0
Data storage
500 standard samples, 1,0000 samples , APP mass storage
Language
Simplified Chinese, English, Traditional Chinese
Operating temperature range
0~40℃, 0~85%RH (no condensation), altitude< 2000m
Storage temperature range
-20~50℃, 0~85%RH (no condensation)
Standard Accessories
Power adapter, data cable, manual, SQCX quality management software (official website download), black and white calibration box,
protective cover, wrist strap, single aperture: Ø8mm (optional Ø4mm) platform aperture, MOBCCS APP (official website download)
Optional Accessories
USB micro printer, powder test box, Bluetooth micro printer,holder base
Notes.
Technical parameters are for reference only, subject to the actual sales of products
Company Profile
Guangdong Threenh Technology Co.,Ltd. and Shenzhen TILO Technology Co., Ltd. was found in 1998, and we are specializes in the R&D, production and sales of colorimeter, spectrophotometer, color density meter, gloss meter, color light box, color proof table, coating thickness gauge, iso test chart, etc., which is the leading producer in the color and glossy surface measurement field in China. We are also the national high technology enterprise.Till now we have received more than 20 patents and passed CE, ISO 9001, ROHS, FCC, TUV etc certifications.
8mm Digital Portable Spectrometer LED Economic Colorimeter for Factory Lab Testing 3nh New Title
8mm Digital Portable Spectrometer LED Economic Colorimeter for Factory Lab Testing 3nh New Title
8mm Digital Portable Spectrometer LED Economic Colorimeter for Factory Lab Testing 3nh New Title
8mm Digital Portable Spectrometer LED Economic Colorimeter for Factory Lab Testing 3nh New Title
8mm Digital Portable Spectrometer LED Economic Colorimeter for Factory Lab Testing 3nh New Title
8mm Digital Portable Spectrometer LED Economic Colorimeter for Factory Lab Testing 3nh New Title
Exhibition
8mm Digital Portable Spectrometer LED Economic Colorimeter for Factory Lab Testing 3nh New Title
8mm Digital Portable Spectrometer LED Economic Colorimeter for Factory Lab Testing 3nh New Title
8mm Digital Portable Spectrometer LED Economic Colorimeter for Factory Lab Testing 3nh New Title
Customer Photos
8mm Digital Portable Spectrometer LED Economic Colorimeter for Factory Lab Testing 3nh New Title
8mm Digital Portable Spectrometer LED Economic Colorimeter for Factory Lab Testing 3nh New Title
8mm Digital Portable Spectrometer LED Economic Colorimeter for Factory Lab Testing 3nh New Title
Product packaging
8mm Digital Portable Spectrometer LED Economic Colorimeter for Factory Lab Testing 3nh New Title
FAQ


1. Which brand can 3nh spectrophotometer compare with in the world?
Answer: 3nh instruments can be used to compare with famous brands like Xrite, Minolta, BYK, Datacolor and Hunterlab.

2. Are you a trader or a manufacturer?
Answer: We 3nh is a professional manufacturer from China for 22 years. We research and develop, design and produce, market and sell color measuring instruments and gloss meters, color light box etc.

3. What's your main market?
Answer: We sell to the global market.

4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.

5. What is your payment terms?
Answer: The payment term is 100% T/T in advance. Of course the first suggested payment method is by starting the order here via Alibaba platform.

6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.

7. Do you support OEM and ODM service?
Answer: Yes, we support. Our MOQ for OEM and ODM service is 5 pcs for one model.

8. What about the warranty?
Answer: We offer 12 months warranaty for the instrument except consumables, and we offer the lifespan maintenenace for all goods.
