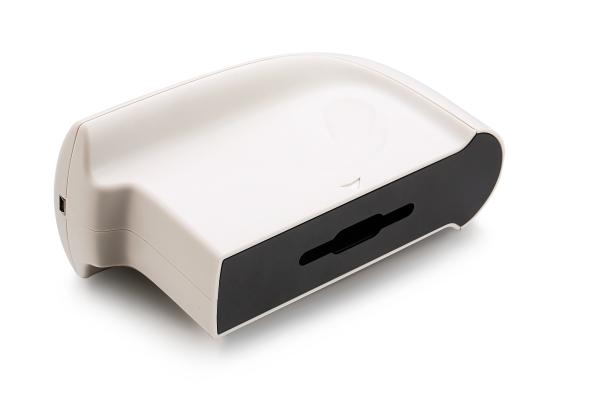

3nh NHG268 Intelligent Handheld Glossmeter Multi-Angle Testing Equipment for 20 60 85
3nh NHG268 Intelligent Handheld Glossmeter Multi-Angle Testing Equipment for 20 60 85
3nh NHG268 Intelligent Handheld Glossmeter Multi-Angle Testing Equipment for 20 60 85
3nh NHG268 Intelligent Handheld Glossmeter Multi-Angle Testing Equipment for 20 60 85
3nh NHG268 Intelligent Handheld Glossmeter Multi-Angle Testing Equipment for 20 60 85
3nh NHG268 Intelligent Handheld Glossmeter Multi-Angle Testing Equipment for 20 60 85
3nh NHG268 Intelligent Handheld Glossmeter Multi-Angle Testing Equipment for 20 60 85
3nh NHG268 Intelligent Handheld Glossmeter Multi-Angle Testing Equipment for 20 60 85
3nh NHG268 Intelligent Handheld Glossmeter Multi-Angle Testing Equipment for 20 60 85
3nh NHG268 Intelligent Handheld Glossmeter Multi-Angle Testing Equipment for 20 60 85
3nh NHG268 Intelligent Handheld Glossmeter Multi-Angle Testing Equipment for 20 60 85
3nh NHG268 Intelligent Handheld Glossmeter Multi-Angle Testing Equipment for 20 60 85
3nh NHG268 Intelligent Handheld Glossmeter Multi-Angle Testing Equipment for 20 60 85
3nh NHG268 Intelligent Handheld Glossmeter Multi-Angle Testing Equipment for 20 60 85
Specifications
warranty :
1 Year
customized support :
OEM, ODM
Place of Origin :
Guangdong, China
Brand Name :
3nh
power :
44
Voltage :
100-240v
Type :
Testing machine
Measure Angle :
20/60;/85
Measurement Range :
20;:0~2000gu 60:0~1000gu 85:0~160gu
Division Value :
0.1gu
Displayed Accuracy :
0.01
Measuring Time :
1.0s
Description

3nh NHG268 Intelligent Handheld Glossmeter Multi-Angle Testing Equipment for 20 60 85

Product Description

NHG268 gloss meter features with 20, 60 and 85° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NHG268 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.

NHG268 gloss meter can test material with high gloss (0-2000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.

Advantages

3nh NHG268 Intelligent Handheld Glossmeter Multi-Angle Testing Equipment for 20 60 853nh NHG268 Intelligent Handheld Glossmeter Multi-Angle Testing Equipment for 20 60 85

Product Parameters

NHG268 Multi-angle Precise Gloss Meter

Measuring Angle

20°/60°/85°
Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457

Measuring Area (mm)

20°: 10x10 60°: 9x15 85°: 5x36

Measuring Range

20°:0~2000GU 60°:0~1000GU 85°:0~160GU

Division Value

0.1GU

Measurement Range Repeatability Reproducibility

0-10GU 10-100GU 100-2000GU
± 0.1GU ± 0.2GU ± 0.2%GU
± 0.2GU ± 0.5GU ± 0.5%GU

Measurement Standard

Conform with JJG696 first class glossmeter working requirement

Chromaticity Corresponding

Corresponding with CIE 1931(2°) under CIE C light source

Errors

±1.2 , ± 1.2%

Measuring Time

1.0s

Dimension

L*W*H : 160mm*75mm*90mm

Weight

350g

Language

Chinese/English

Battery

3.7V,3200mAh Li-ion Battery ,>10000 times(within 8 hours)

Display

TFT 3.5 inch, capacitive touch screen

Interface

USB/RS-232

Storage

Basic mode: 1000; Statistical Mode: 5000,Continuous mode : 5000

Software

GQC6 Quality Control Software with QC report printing functions and more extended functions.

Operation Temperature

0~40ºC(32~104°F)

Storage Temperature

-20~50ºC(-4~122°F)

Humidity

<85% relative humidity, no condensation

Standard Accessories

Power Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate

Optional Accessories

Miniature Printer

Note

The specifications are subject to change without notice.
