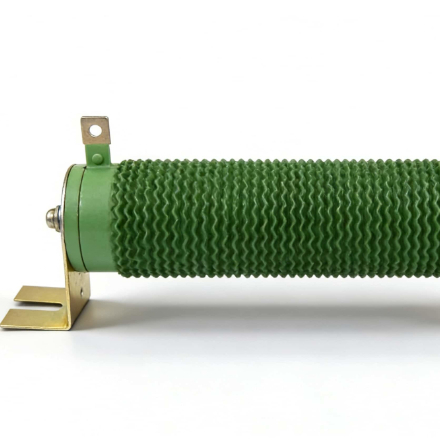

Ripple Painted High Power Resistors Corrugated Resistors
Ripple Painted High Power Resistors Corrugated Resistors
Specifications
Brand Name :
TYOHM
Place of Origin :
China
MOQ :
0.5K
Price :
Please contact us for details
Payment Terms :
T/T
Supply Ability :
Depending on the specific circumstances, it generally takes 5-7 work days to complete
Delivery Time :
7-10 work days
Packaging Details :
T/B
overload :
10 times of rated wattage for 10 seconds. ( ±2% )
Terminal tensile strength :
20N，30S
collision :
Frequency 48-80 times/minute, 2000 times
Vibrate :
10～500Hz，0.75mmm or 98m/s²，6h
Solderability :
Welding groove method 235 ± 5 ℃, 2s
Steady damp-heat :
40±2℃，93±3%RH，1000h
Description

Ripple Painted Wire Wound Resistor

Product Overview

Corrugated enameled wire-wound resistors utilize high-quality resistance wire spirally wound onto a ceramic substrate and coated with a high-temperature resistant insulating varnish layer, providing excellent heat dissipation and high-temperature load capacity. Their unique corrugated structure effectively increases the heat dissipation area, enabling the resistor to maintain stable resistance characteristics and low temperature rise even under high-power operating conditions.

The product employs a fully welded structure design, ensuring reliable contact, stable performance, and long-term safe operation, making it an ideal choice for various high-power applications.

Ripple Painted High Power Resistors Corrugated Resistors

Product Parameters

Item Parameter Description
Product Name Corrugated Wirewound Resistor
Manufacturing Process High-temperature corrugated wire winding + insulating varnish encapsulation structure
Resistance Accuracy ±1%, ±2%, ±5%, ±10%
Housing Material High-strength ceramic or metal tube
Terminal Structure Fully soldered or screw-mounted
Optional Accessories Mounting bracket, heat sink (optional)

Key Features

This resistor features a wide power range and excellent high-temperature load performance, enabling stable operation in high-temperature, high-humidity, or high-vibration environments. Its all-welded structure design ensures a robust and reliable conductive path and excellent resistance to mechanical shock. The surface insulating varnish layer provides moisture-proof, dust-proof, and corrosion-resistant properties, extending its overall service life. Optional mounting accessories are also available for flexible installation and heat dissipation in various devices.

Ripple Painted High Power Resistors Corrugated Resistors

Applications

  • Large power supplies and power control equipment
  • Electrical drives and automation systems
  • Locomotive, elevator, and crane braking circuits
  • Motor starting and speed control systems
  • Electrical testing and dummy load devices
