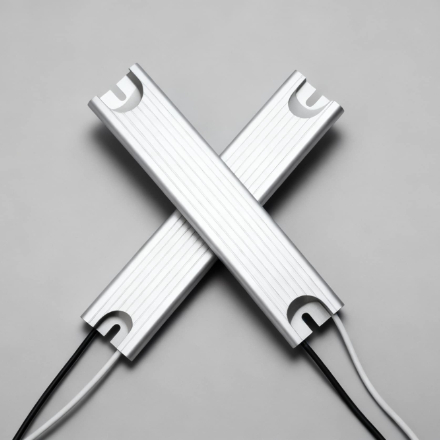

Ultra Thin Aluminum Resistor 500V Aluminum Housed High Current Resistors
Ultra Thin Aluminum Resistor 500V Aluminum Housed High Current Resistors
Specifications
Place of Origin :
China
Brand Name :
TYOHM
MOQ :
0.5K
Price :
Please contact us for details
Packaging Details :
T/B
Delivery Time :
7-10 work days
Payment Terms :
T/T
Supply Ability :
Depending on the specific circumstances, it generally takes 5-7 work days to complete
Resistance Range :
1Ω ~ 10KΩ
Resistance Accuracy :
±1%, ±2%, ±5%, ±10%
Wattage Range :
50W ~ 200W
Max. Working Voltage :
700V ~ 1200V
Withstand Voltage :
450V ~ 1200V
Operating Temperature :
-55℃ ～ +275℃
Description
High Power Ultra Thin Aluminum Housed Resistor
Product Introduction

The AS-B series high-power ultra-thin aluminum-cased resistors feature a high thermal conductivity aluminum alloy housing, offering excellent heat dissipation and a robust structural design. Their thin and lightweight nature makes them particularly suitable for mounting on heat sinks.

Internally, they utilize highly reliable alloy resistive elements encapsulated in high-temperature resistant inorganic materials, enabling stable operation in harsh industrial environments. With high power handling capacity, superior heat dissipation, and excellent insulation safety, the AS-B series is an ideal high-performance load solution for various power electronic systems and industrial equipment.

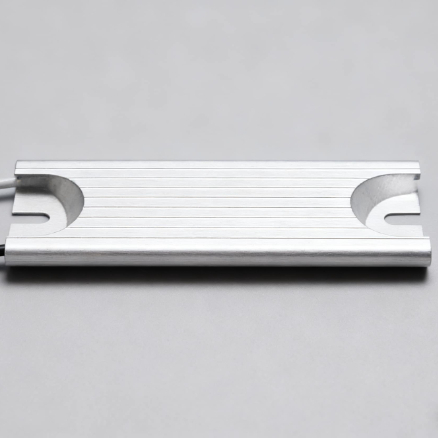

Ultra Thin Aluminum Resistor 500V Aluminum Housed High Current Resistors

Product Parameters
Item Specification
Model AS-B Series
Insulation Resistance ≥100MΩ (DC 500V)
Housing Material Aluminum Alloy
Internal Element Alloy Wirewound or Metal Film Structure
Encapsulation Flameless Inorganic Insulating Material
Mounting Suitable for fixed installation on heat sinks
Connection Form Multiple connection methods including lead wire or terminal type
Performance Characteristics

Excellent Heat Dissipation and Power Handling Capacity

The aluminum casing of the AS-B resistor has excellent thermal conductivity, allowing direct mounting on heat sinks, significantly improving power density and thermal efficiency.

Compact Structure, Ultra-thin and Lightweight Design

The ultra-thin design is suitable for installation on space-constrained circuit boards and equipment, saving assembly space and facilitating modular layout.

High Insulation Safety and Shock Resistance

The resistor element is encapsulated in non-flammable inorganic materials, providing excellent insulation and shock resistance, enabling long-term stable operation in vibration and high-temperature environments.

Diverse Installation Methods

Can be installed via leads, inserts, or screws, offering multiple connection methods for easy integration and maintenance in various systems.

Ultra Thin Aluminum Resistor 500V Aluminum Housed High Current Resistors

Typical Applications

Power Supply and Variable Frequency Systems

Used as a braking and current-limiting resistor in power supply filtering, voltage regulation circuits, and variable frequency drives to ensure operational safety and stable current control.

Industrial Automation Equipment

Used in servo drives, elevator control, motor load testing, and electric braking systems, providing stable and reliable energy absorption performance.

Audio and Communication Equipment

Provides low-noise, high-stability resistive loads in demanding applications such as high-fidelity audio equipment, transmitters, and power amplifiers.

High-Reliability Applications

Suitable for aerospace, rail transportation, military power supplies, and other environments with stringent requirements for heat dissipation and insulation.
