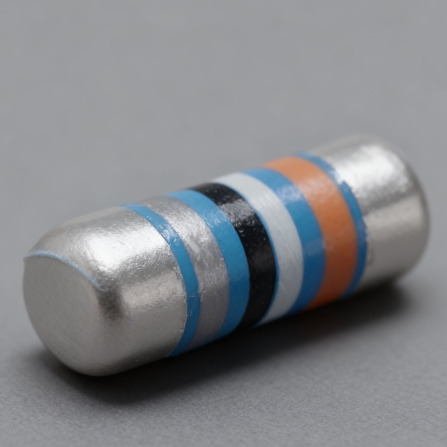

MM Series High Resistance Resistor SMD Moisture Resistant MELF Resistors
MM Series High Resistance Resistor SMD Moisture Resistant MELF Resistors
Specifications
Brand Name :
TYOHM
Model Number :
MM
Place of Origin :
China
MOQ :
1K
Price :
Please contact us for details
Payment Terms :
T/T
Supply Ability :
Depending on the specific circumstances, it generally takes 5-7 work days to complete
Delivery Time :
7-10 work days
Packaging Details :
T/B
Resistance Temp. Coeff. :
±25ppm/°C、±50ppm/°C、±100ppm/°C
Short-Term Overload :
2.5 times of rated wattage for 5 seconds ( ±2% )
Dielectric Withstanding Voltage :
Max. Overload Voltage for 1 minute ( No evidence of mechanical damage or insulation breakdown )
Insulation Resistance :
10,000MΩ ( DC 100V or 500V megger )
Moisture-proof Load Life :
Rated power load 90 minutes ON 30 minutes OFF 40°C 93% RH 56 days ( ΔR/R≤±1.5% )
Dismensions :
Please check the attachment
Description
Metal Film Melf Resistors
High-Quality Metal Film MELF Resistors ( MM Series )

1. SMD enabled structure with excellent solderability

2. Conformal multi-layer coating against humidity

3. 5% tolerance uses 3-band coding; 2% and below use 4-band coding

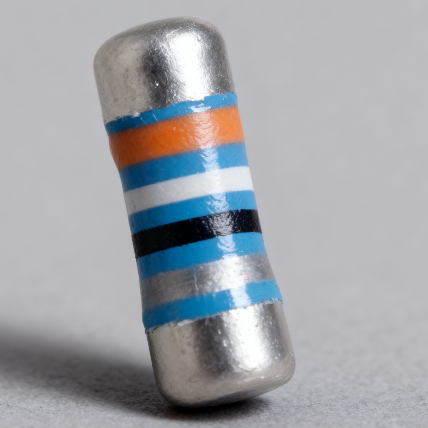

MM Series High Resistance Resistor SMD Moisture Resistant MELF Resistors

Product Overview

Metal film MELF resistors are surface mount resistors manufactured using metal film technology, offering high stability and precise resistance control.

These products utilize a MELF leadless package, resulting in a compact structure suitable for space-constrained circuits. They also feature excellent solderability and a multi-layer protective coating for effective moisture protection, meeting the demands of high-reliability applications.

Depending on the resistance accuracy, they are available with 3-band (±5%) and 4-band (±2% and below) markings for easy user identification and selection.

Product Technical Specifications
Item Parameter Description
Product Name Metal Film MELF Resistor
Resistance Range 0.51Ω ～ 10MΩ
Resistance Tolerance ±1%, ±2%, ±5%
Package Type MELF (Metal Electrode Leadless Surface Mount)
Terminal Type Leadless Surface Mount (SMD)
Coating Type Multi-layer coating, moisture resistant
Encoding Band Type Three codes for 5% and below, four codes for below 2%
Operating Temperature Range -55°C ～ +155°C
MM Series High Resistance Resistor SMD Moisture Resistant MELF Resistors
Product Performance Advantages

Excellent Solderability

SMD Structure design simplifies soldering, making it suitable for automated production and improving assembly efficiency.

Conformal Coating

Multi-layer coating effectively prevents moisture from affecting the resistor, enhancing its reliability and ensuring long-term stable operation.

High Precision & Low TCR

Utilizing metal film technology, it features a low temperature coefficient and excellent resistance stability, making it suitable for high-precision applications.

Simple Coding System

Based on different resistance tolerances, it offers three-band coding (5% tolerance) and four-band coding (2% and below tolerance) for easy and accurate selection.

Applications

Metal Film Resistors are widely used in:

  • Consumer Electronics
  • Automotive Electronics Control Systems
  • Industrial Automation Systems
  • Medical Equipment & Instruments
  • Power Supply & Charging Devices
  • Telecommunication Devices
