25V ~ 200V 1/16W ~ 1W SMD Thick Film Chip Resistors
25V ~ 200V 1/16W ~ 1W SMD Thick Film Chip Resistors
Specifications
Brand Name :
TYOHM
Model Number :
RMC
Place of Origin :
China
MOQ :
5K
Price :
Please contact us for details
Payment Terms :
T/T
Delivery Time :
7-10 work days
Packaging Details :
T/B
Supply Ability :
Depending on the specific circumstances, it generally takes 5-7 work days to complete
Power Rating Load :
Rated voltage for 30 minutes ( Surface temp. 155°C Max )
Short Time Overload :
2.5 times of rated wattage for 5 seconds ( ±2% )
Insulation Resistance :
10,000MΩ ( DC 100V megger )
Temp. Cycle :
-55°C( 30 min.)→ Room Temp.( 3 min.)→+155°C( 30 min.) →Room Temp.( 3 min.) / ( 5 cycles) (ΔR/R≤±0.5%)
Load Life :
Rated power load 90 minutes ON 30 minutes OFF 70°C 1000 hours ( ΔR/R≤±1% )
Moisture-proof Load Life :
Rated power load 90 minutes ON 30 minutes OFF 40°C 95% RH 500 hours ( ΔR/R≤±1% )
Description
Thick Film Chip Resistors

1. Miniature size enables compact PCB designs

2. 8mm tape carrier packaging available for automated surface mounting

3. Excellent mechanical strength and electrical stability

4. Reduces assembly costs through efficient production

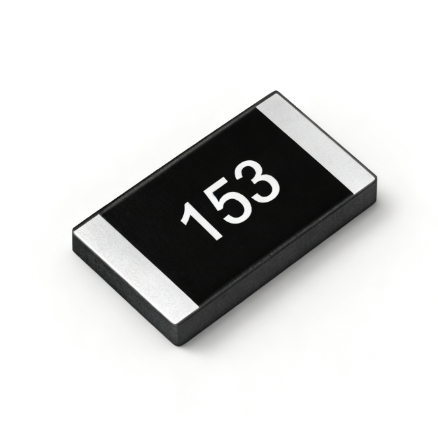

25V ~ 200V 1/16W ~ 1W SMD Thick Film Chip Resistors

Product Overview

Thick-film chip resistors are high-performance surface mount resistors manufactured using thick-film technology, specifically designed for the miniaturization and high-density assembly needs of modern electronic devices.

The product's compact size effectively saves printed circuit board (PCB) space and supports automated surface mount production.

The resistors are packaged in an 8mm carrier, ensuring high compatibility with automated surface mount technology (SMT) equipment, significantly improving production efficiency and reducing assembly costs.

Their excellent mechanical strength and electrical stability make them outstanding in high-reliability electronic systems.

Product Technical Specifications
Item Parameter Description
Product Name Thick Film Chip Resistors
Power Range 1/16W ~ 1W
Resistance Range 1Ω ~ 10MΩ
Resistance Tolerance ±1%, ±5%
Temperature Coefficient ±100ppm/°C ~ ±400ppm/°C
Package Size 0201, 0402, 0603, 0805, 1206, etc.
Operating Voltage 25V ~ 200V
Operating Temperature Range -55°C ~ +155°C
Packaging 8mm carrier tape (suitable for automatic placement)
Substrate Material High-strength Alumina (Al₂O₃)

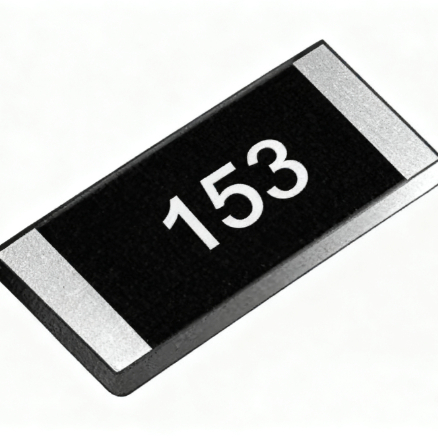

25V ~ 200V 1/16W ~ 1W SMD Thick Film Chip Resistors
Product Performance Advantages
  1. Miniature Size

    Compact structural design effectively saves circuit board space, suitable for high-density circuit layouts.
  2. High Reliability & Stability

    Thick-film structure ensures electrical stability and resistance to mechanical shock during long-term operation.
  3. Efficient Assembly

    Supports standard 8mm carrier tape packaging, compatible with automated SMT placement processes, reducing labor and production costs.
  4. Excellent Environmental Resistance

    Maintains stable performance in high-temperature and high-humidity environments, meeting industrial and consumer application standards.
Applications

Thick film resistors are widely used in:

  • Consumer Electronics
  • Telecommunication & Networking Devices
  • Industrial Control Systems
  • Automotive Electronic Modules
  • Power Management & Charging Systems
  • Measuring Instruments & Control Circuits
