3.9 ~ 4.7M Ohm Carbon Film Resistor Carbon Fixed Resistor
3.9 ~ 4.7M Ohm Carbon Film Resistor Carbon Fixed Resistor
Specifications
Brand Name :
TYOHM
Model Number :
RD
Place of Origin :
China
MOQ :
5K
Delivery Time :
7-10 work days
Payment Terms :
T/T
Price :
Please contact us for details
Packaging Details :
T/B
Supply Ability :
Depending on the specific circumstances, it generally takes 5-7 work days to complete
Resistance Range(Ω) :
3.9~4.7MΩ ; 3.9~10MΩ
Resistance Tolerance :
±5% ( J ) or ±2% ( G )
Resistance Temperature Coefficient :
0~-1300 ppm/°C
Short-Term Overload :
2.5 times of rated wattage for 5 seconds ( ±1% )
Moisture-proof Load Life :
Rated power load 90 minutes ON 30 minutes OFF 40°C 95% RH 500 hours ( ΔR/R≤±5% )
Dimensions :
Please check the attachment
Description
Cost-Effective Solution Durable Carbon Film Resistors

High-performance resistors featuring pure carbonhydric composition on ceramic cores, offering exceptional value and reliability for industrial applications.

1. Pure carbonhydric composition on durable ceramic cores

2. Cost-effective solution for various applications

3. Proven quality and long-term reliability

4. Available in flameproof type (RDN series)

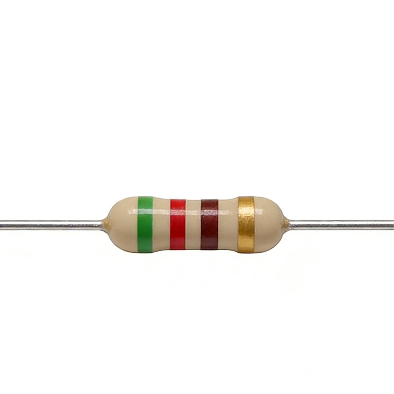

3.9 ~ 4.7M Ohm Carbon Film Resistor Carbon Fixed Resistor

Product Overview

Carbon film resistors are resistive elements made from high-quality hydrocarbon materials with a robust built-in ceramic substrate, offering excellent reliability.

This series achieves stable resistance by depositing a carbon film on the ceramic substrate, combining performance and cost advantages, making it suitable for a variety of electrical applications.

The products exhibit good temperature characteristics and durability, making them particularly suitable for low-power circuits; the RDN series also features a flame-retardant design, effectively improving safety and reducing the risk of overheating and fire.

Product Technical Specifications
Item Parameter Description
Product Name Carbon Film Resistor
Power Range 0.125W ～ 2W
Resistance Range 10Ω ～ 10MΩ
Resistance Tolerance ±5%, ±10%
Temperature Coefficient ±300ppm/°C
Operating Voltage 50V ～ 500V
Operating Temperature Range -55°C ～ +155°C
Material Hydrocarbon film, durable ceramic substrate
Flame Retardant Design RDN Series (Flame Retardant)
Package Type Cylindrical, Through-hole

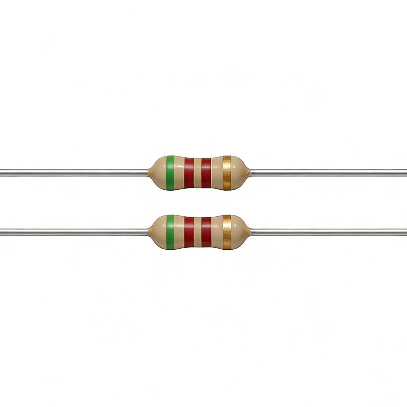

3.9 ~ 4.7M Ohm Carbon Film Resistor Carbon Fixed Resistor
Product Performance Advantages

Cost-Effective Solution

Utilizing hydrocarbon materials and a ceramic substrate design, it offers excellent cost-effectiveness, meeting the needs of budget-conscious circuits.

Good Temperature Coefficient

Carbon film resistors have a stable temperature coefficient, suitable for applications with significant temperature variations.

Flameproof Option

The RDN series offers a flame-retardant design, adding extra safety for circuits with high safety requirements.

Long-Term Reliability
Through rigorous quality control, carbon film resistors exhibit excellent long-term stability and reliability, suitable for long-term applications.

Applications
  • Consumer Electronics
  • Power Supply Systems
  • Home Appliances
  • Audio & Sound Systems
  • Low Power Circuits & Control Systems
