Features

• High power, small body size.
• It is suitable for protecting circuit boards.
• Noncombustible insulating coating; solvent proof and resistant to high temperature.
• Low temperature coefficient.
• Uniform in fusing time.
• UL1412 approved.

Product Positioning and Core Application

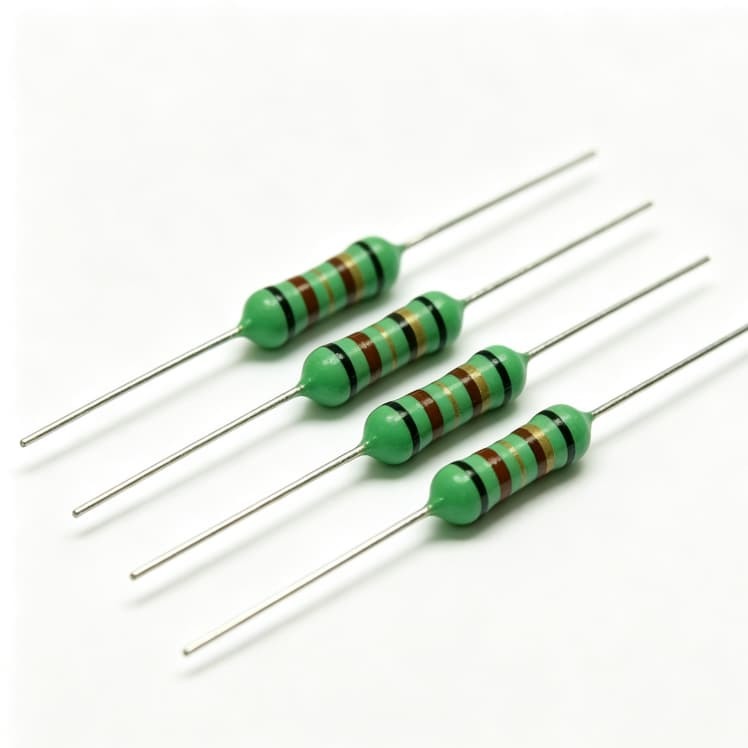

The FKN-S series is a small type flameproof fusible wire wound resistor designed to combine resistance and circuit protection functions in a single component. Its wire wound construction is intended for electronic circuits where a power resistor is also required to provide a defined fusing function under abnormal circuit conditions.

The FKN-S is specifically suitable for circuit board protection. When an abnormal overcurrent condition reaches the specified fusing condition, the resistor can fuse and change the circuit state for protection purposes. Its noncombustible insulating coating is also designed to provide solvent resistance and high-temperature resistance.

As a 2WS fusible resistor, the FKN-S combines a wire wound resistor structure with a fusible function, making it suitable for circuit designs that require both power resistance and circuit protection in a small component.

Product Specifications

Applications

Circuit Board Protection

The FKN-S can be applied to PCB circuits that require a fusible protection function. Its primary role is to provide a defined fusing response when the circuit reaches the specified abnormal overcurrent condition.

Electronic Circuit Protection

For electronic circuits requiring both resistance and protection functions, the FKN-S can be used as a flameproof resistor. Its noncombustible insulating coating, solvent resistance, and high-temperature resistance provide the structural characteristics required for the specified operating environment.

Power Resistor Applications

The FKN-S 2WS uses a wire wound construction and provides a resistance range of 0.1–300Ω. It can be considered for circuit designs requiring a 2WS rated power level. Where resistance and fusing functions are required in the same component, it can serve as a power wirewound resistor solution.

Circuit Protection Design

For electronic circuits requiring a defined fusing function, the FKN-S can be used as a fusible resistor. The product data specifies a fusing time of less than 60 seconds under the stated test conditions, providing a defined parameter for circuit protection design.
