Dance Floors Sound Active Line Array System 5 Inch Dual Array Equipment
Dance Floors Sound Active Line Array System 5 Inch Dual Array Equipment
Dance Floors Sound Active Line Array System 5 Inch Dual Array Equipment
Dance Floors Sound Active Line Array System 5 Inch Dual Array Equipment
Dance Floors Sound Active Line Array System 5 Inch Dual Array Equipment
Dance Floors Sound Active Line Array System 5 Inch Dual Array Equipment
Dance Floors Sound Active Line Array System 5 Inch Dual Array Equipment
Dance Floors Sound Active Line Array System 5 Inch Dual Array Equipment
Specifications
Brand Name :
CVR
Model Number :
W-25&W-12P
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
2 Pieces
Price :
USD 100-10000 Pieces
Payment Terms :
L/C, D/A, D/P, T/T, , Western Union, MoneyGram
Supply Ability :
10000 Pieces Per Month
Delivery Time :
3-10 Worjing Days
Packaging Details :
Good Quality Carton Box Or Flightcase
Type :
Dual 5 inch Line Array
Brand :
Cvr PRO Audio
Painting :
Textured Painting
Apply :
Mini Line Arry
Sound :
Clear sound system
Description

Dance Floors Sound 5 Inch Active Line Array System Dual Array Equipment

DESCRIPTION and APPLICATION

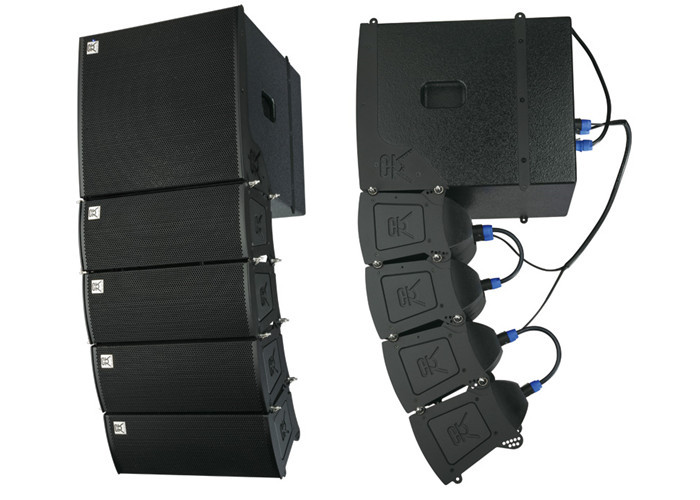

W-25 is a line array system which is made of two 5"woofers, a 1.4"titanium compression driver and high performance low distortion compression driver with innovative horn design of wave phase philosophy. It is a zero interfere line array with multi- speaker combined to produce accurate directivity and maximum dynamic impact. Wherever low frequency extension is required,a W-25 will integrate seamlessly with W-102P line array sub-bass system in a standard configuration. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely.

W-25 is veryversatile and scalable for a wide range of applications in touring performance,corporate and fixed installation fields.

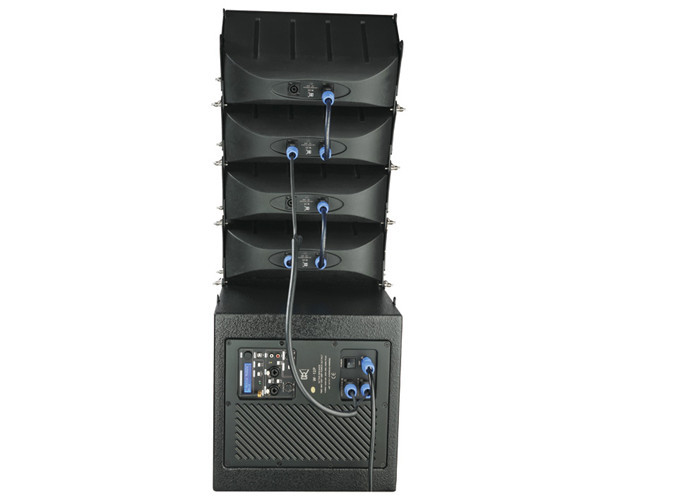

W-102P is a dedicated high performance sub-bass system designed to augment the low frequency output of W-25. The W-102P features a highly efficient power amp module and incorporate DSP. This efficient design enables the flown combination of W-102P and W-25.The physical dimensions of W-102P are identical to the W-25 and it's equipped with the same proprietary rigging system.It's features with two 10"inch woofers with magnet structure and suspensions engineered for maximum linear excursion.


SPECIFICATION:

Model

W-25 & W-102P
Type Line array system

Line array sub-bass system(W-102P)
Frequency Response 90Hz-20KHz±3dB
45Hz-150Hz±3dB(W-102P)
Power handing LF 160W(RMS)320W(PEAK)

HF 60W(RMS)120W(PEAK)
400W(RMS)800W(PEAK)(W-102P)
Sensitivity LF 92dB(1W-1M)
HF 108dB(1W-1M)
103dB(1W-1M)(W-102P)
Max-S.P.L LF 114dB(PEAK/1M)
HF 126dB(PEAK/1M)
129dB(PEAK/1M)(W-102P)
LF section 2×5"(135mm) woofer
35mm(1.5in)coil
Components 2×10"(260mm)woofers
50mm(2in)coil(W-102P)
Nominal impedance 16 ohm
4 ohm(W-102P)
HF section 1×1.4"compression driver
with 34mm titanium diaphragm
Nominal impedance 16 ohm
Output section 2-channel
Dispersion pattern 110°H×9°V
Finish Black paint

PACKAGE:

Array design Arrays of less than 3×W-25 will
provide poor dispersion control and
are neither recommended nor supported
Speaker cables 1(+)1(-)Built in crossover
Rigging system Please refer to the W-25 user
manual before any operation
Input connectors 2×NL4MP speakon
Recommend crossover 80Hz-20KHz
42Hz-120Hz(W-102P)
Dimensions 410×163×248mm(W×H×D)
408×300×493mm(W×H×D)(W-102P)
Package dimensions 480×230×320mm/0.04cbm
480×370×560mm/0.1cbm(W-102P)
Enclosure PU(W-25)/Plywood(W-102P)
Net weight 7.8kg(W-25) / 23kg (W-102P)
Gross weight 9kg(W-25) / 25kg (W-102P)
