Specifications
Brand Name :
CVR PRO AUDIO
Model Number :
CVR.W-110W-118P
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
100-10000 USD
Payment Terms :
T/T, Western Union
Supply Ability :
5000 BOXES ONE MONTH
Delivery Time :
7 WORKING DAYS
Packaging Details :
CARTONS OR FLIGHT CASE
TYPE :
PASSIVE/ACTIVE LINE ARRAY SYSTEM
MODEL :
THREE WAY .W-110
CABINET :
BIRCH PLYWOOD
LF :
12"X1 neodymium
HF :
1.75"X2 NEODYMIUM
POWER :
400W RMS, 800W PEAK
Description

2 Way Line Array Audio Speaker System For Stage Events , Crusade House Of Worship

ABOUT CVR:

CVR PRO AUDIO is a cutting edge professional audio speaker manufacturer specializing in designing and manufacturing professional audio systems,including PA speaker,indoor and outdoor line array speaker,subwoofer,floor monitor, power amplifier and speaker management system. We provide these products for indoor and outdoor events, stadiums, churches, performing arts venues, theatres,conference rooms, meeting halls, and any space where audio system are needed.

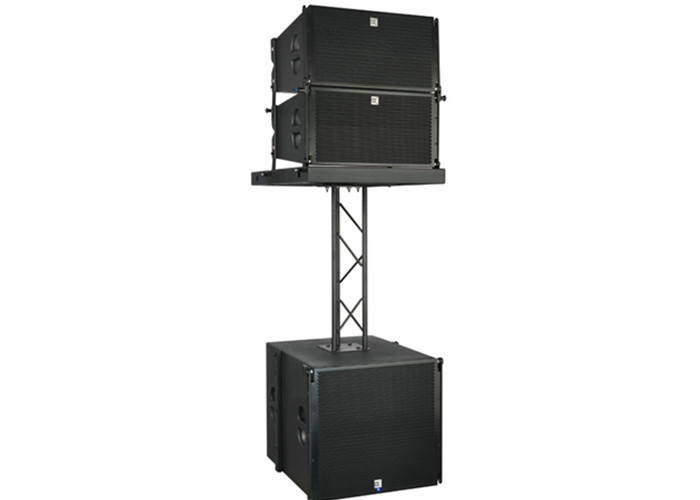

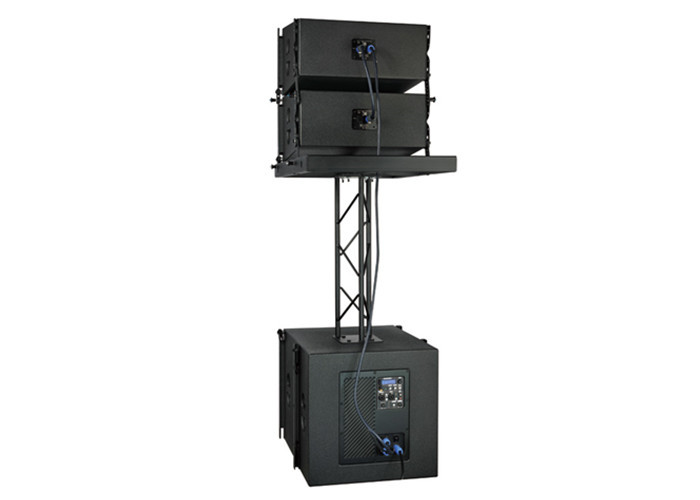

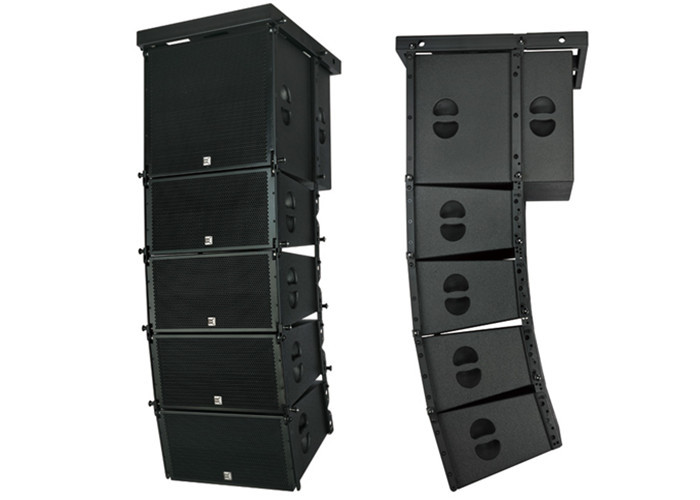

W-110 is a line array system which is made of one 10” neodymium woofers, two 1.75” titanium neodymium compression drivers and high-performance low-distortion compression driver with innovative horn design of waves phase philosophy. Wherever low frequency extension is required, a W-110 will integrate seamlessly with W-118 or W-118P line array sub-bass system in a standard configuration. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. W-110 is very versatile and scalable for a wide range of applications in touring performance, corporate and fixed installation fields.
W-118/W-118P is dedicated high performance sub-bass system designed to augment the low frequency output of the W-110, W-118/W-118P is a sub-bass enclosure which must be flown with W-110. Its physical dimensions are identical to the W-110 and it is equipped with the same proprietary rigging system. It features with a 18” neodymium woofers with magnet structure and suspensions engineered for maximum linear excursion. The W-118P with Bluetooth features a highly efficient power amp module and incorporated DSP.

Type Line array system
line array sub-bass system(W-118/W-118P)
Frequency Response 65Hz-20KHz±3dB
35Hz-500Hz±3dB(W-118/W-118P)
Power handling LF 400W(RMS)800W(PEAK)
HF 120W(RMS)240W(PEAK)
800W(RMS)1600W(PEAK)(W-118/W-118P)
Power amp 2X600W/4ohm + 1X900W/8ohm (W-118P)
Amplifier type Switching power amp, class D circuit
Other functions Bluetooth,DSP (W-118P)
Sensitivity LF 96dB(1W@1M)
HF 108dB(1W@1M)
109dB(1W@1M)(W-118/W-118P)
Max@S.P.L LF 122dB(PEAK/1M)
HF 125dB(PEAK/1M)
135dB(PEAK/1M)(W-118/W-118P)
LF section 1×10"(260mm) neodymium woofer
75mm(3in)coil
1×18"(460mm)woofer
100mm(4in)coil (W-118/W-118P)
Nominal impedance 8 ohm/8 ohm (W-118/W-118P)
HF section 2×1.75"compression driver with44mm
titanium diaphragm
Nominal impedance 16 ohm

Competitive Advantage:


1.High quality speaker drivers, high power handling capability, good sound quality, flyware easy for operation, beautiful mesh grille design,highest standards of workmanship and quality control.


2. A good solution for all sizes of indoor/outdoor live event,and indoors applications like disco,
night club, conference,school auditorium, and places of worship;


3.To avoid damage and scratch during transport,according to customers’requirement,we can put the items in extra cost flight cases.


4.Established in 2005, CVR PRO AUDIO has forged a reputation as one of the nation's most experienced and reliable manufacturer of pro sound equipment.
