Specifications
Brand Name :
Xleisure
Application :
Hot tub/spa shell
Product Name :
Rotary hot tub spa trimmer
Delivery Time :
40days
Price :
7463
Place of Origin :
CHINA
Total Power :
4 KW
Gross Weight :
Approx. 1300 KGS
Speed Range :
0.2 RPM -2 RPM
MOQ :
1
Payment Terms :
T/T
Model Number :
N/A
Packing Dimensions :
3200mm *2150mm * 1300mm (H)
Cutting Height Range :
20mm - 800mm
Description
Product Description

Features:

  • emi-automatic cutting, easy & efficient trimming for varied shapes & heights;
  • precision level cutting to have flat shell edge;
  • manual guide for diverse cutting of different shells, versatile applications;
    adjustable shell-edge cutting height: 20mm ~ 800mm (from shell top to trimmed edge);
  • applicable hot tub dimensions: 2500mm L * 2500mm W (maximum);
  • hot tub shell clamping: 250mm ~ 1050mm (overall shell height range);
  • protection shield on the saw blade, and guide rollers for smooth cutting;

Item Specification
Power Requirement 3 phase AC380V, reliable ground and neutral wire

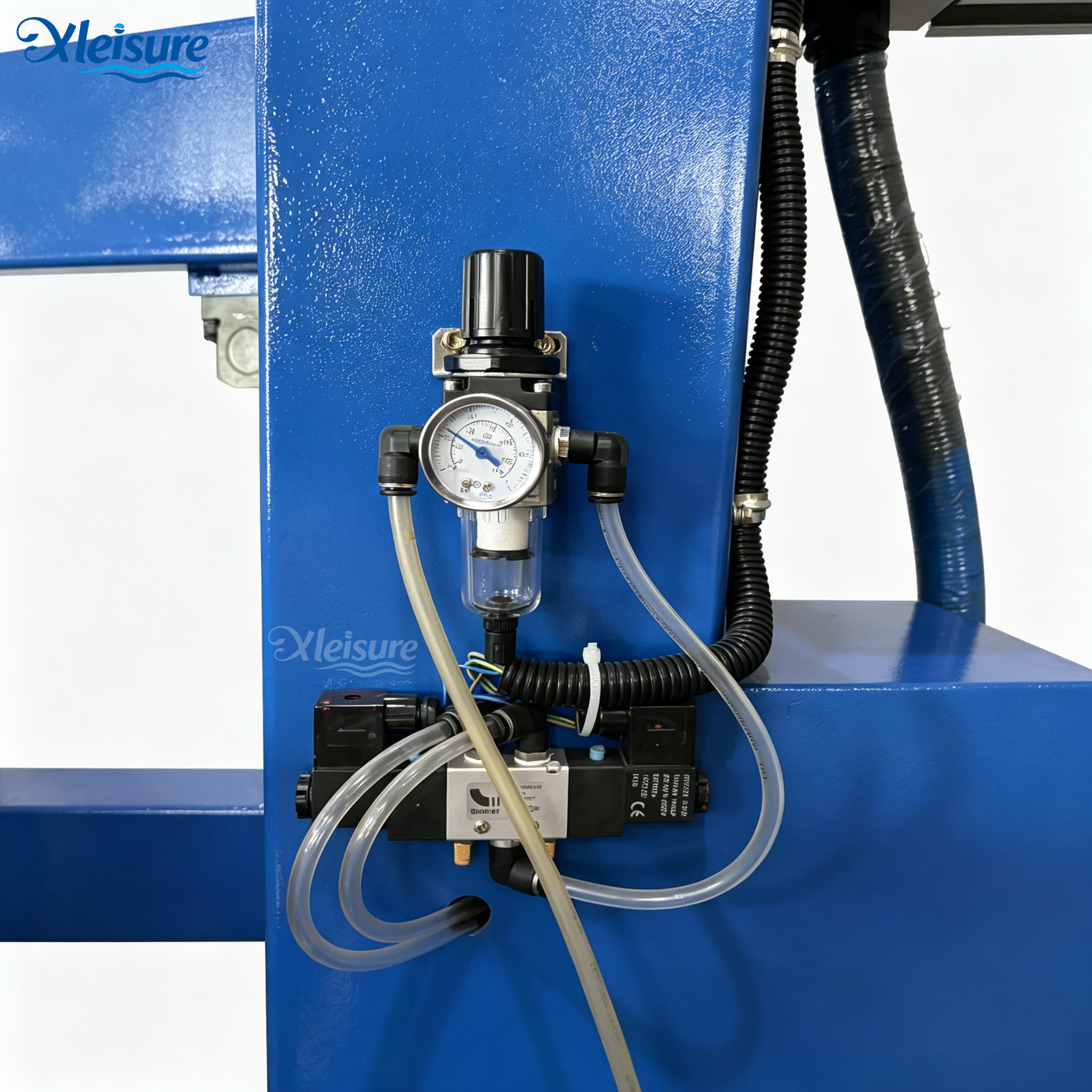

Air Source Requirement Compressed air pressure 0.35~0.4Mpa
Total Power 4 kW

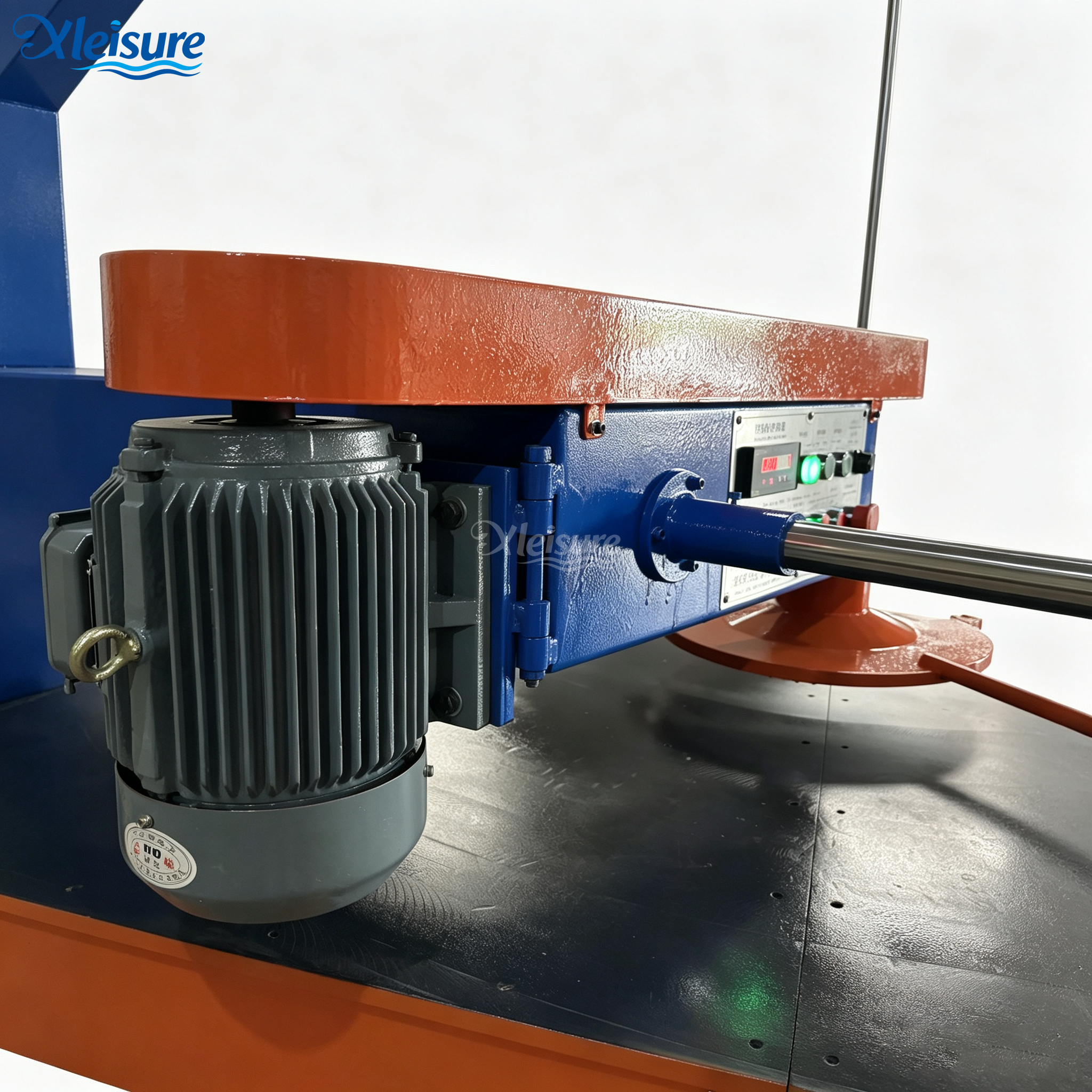

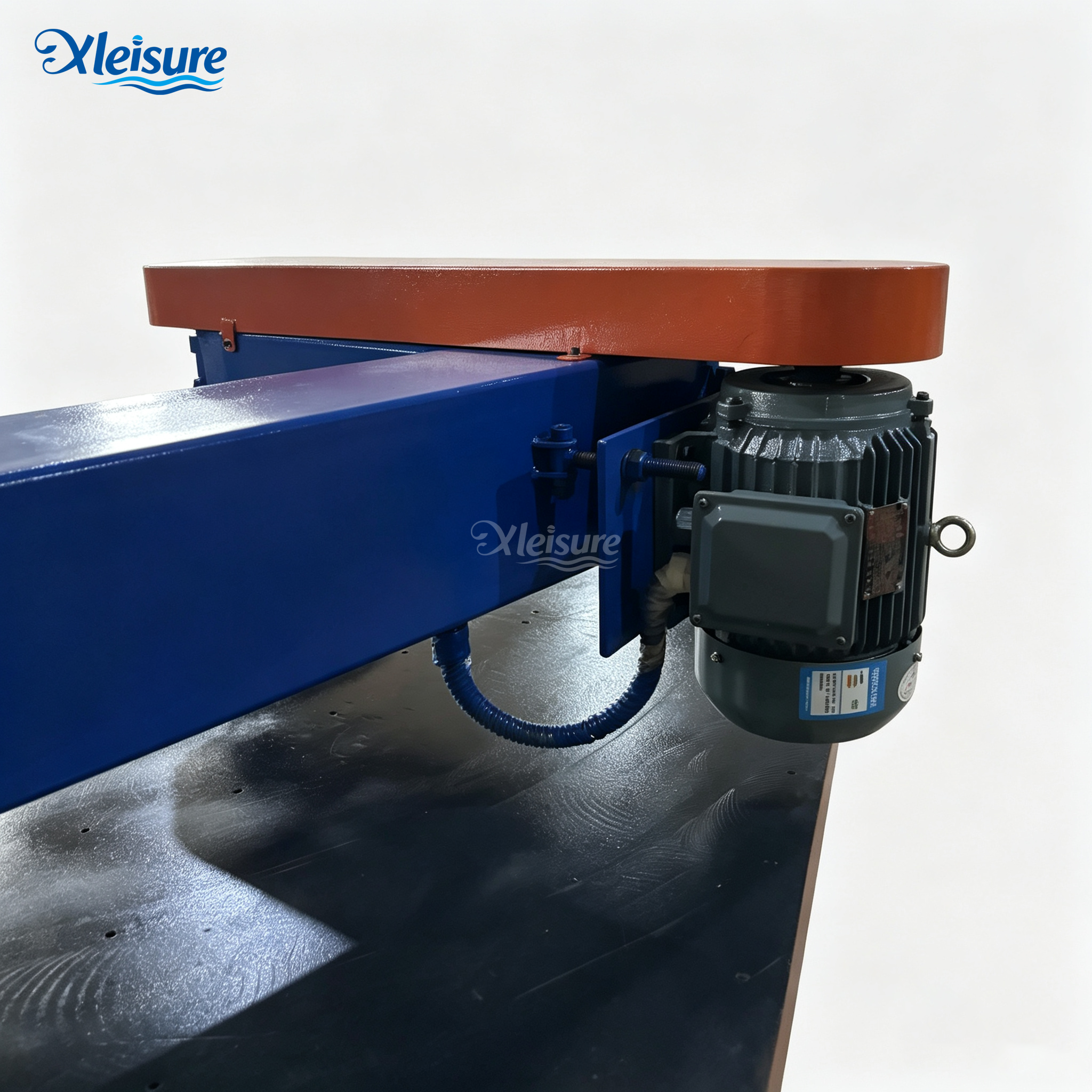

Rotary Table Driving Motor 0.55 kW

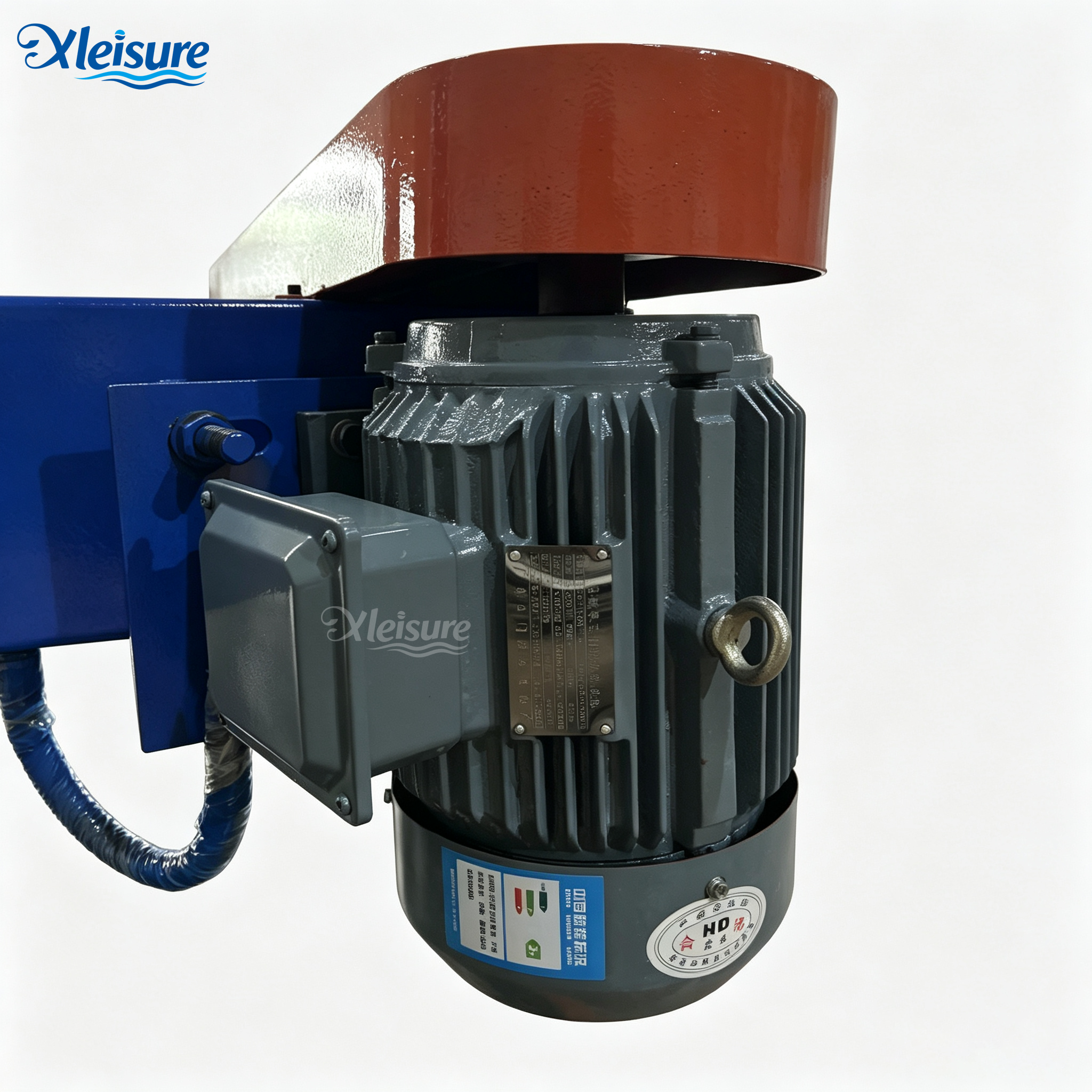

Cutting Machine Driving Motor 3.0 kW

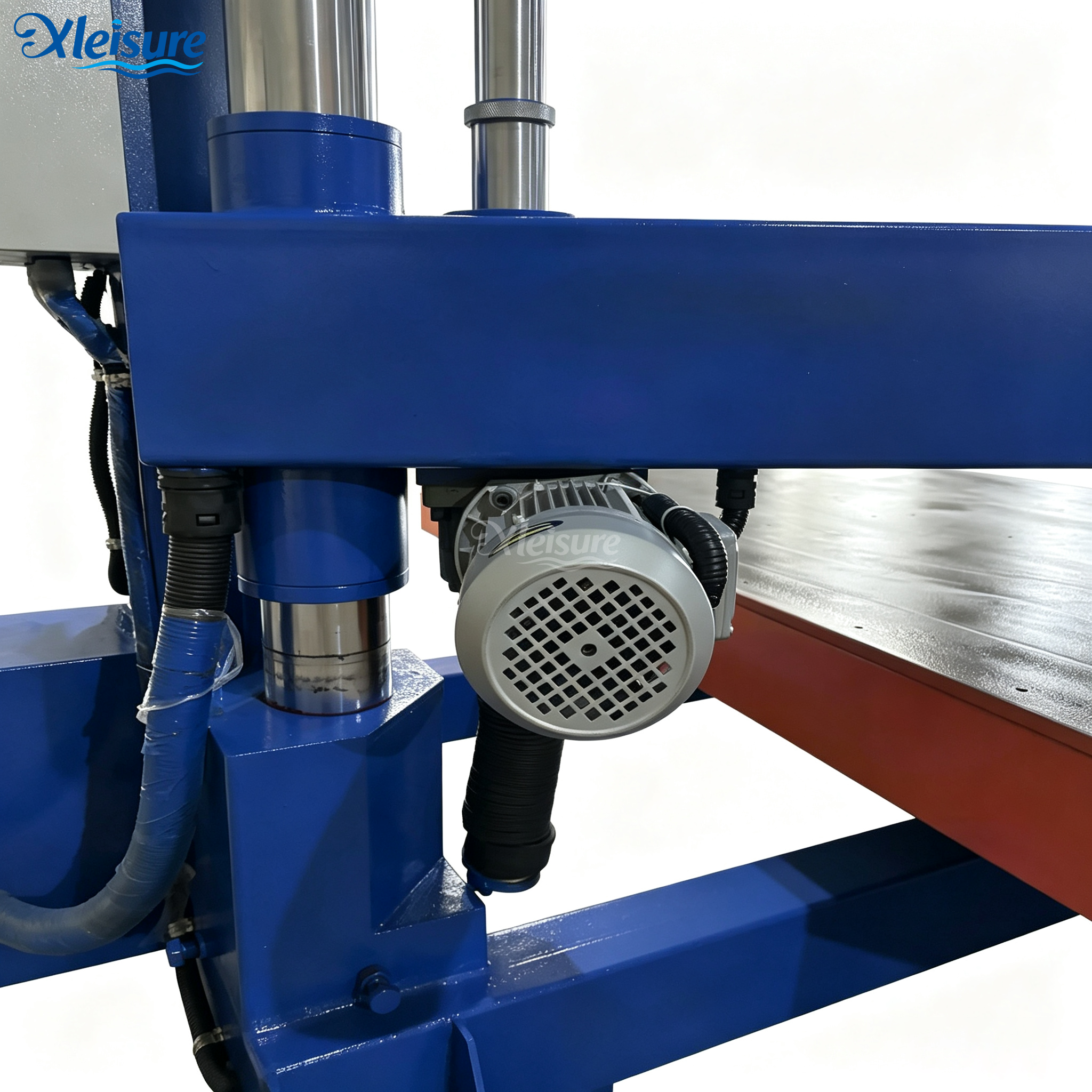

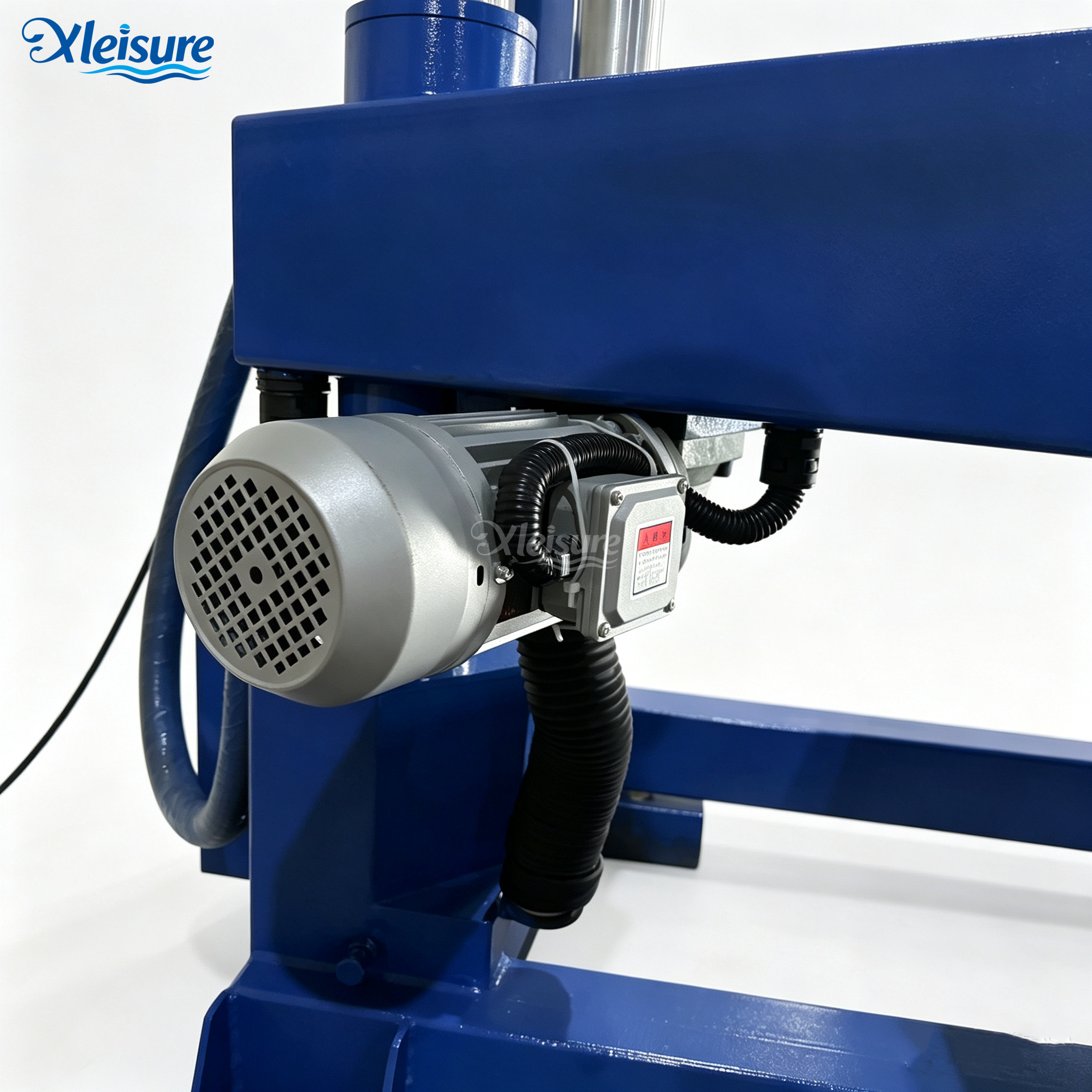

Cutting Machine Lifting Driving Motor 0.37 kW
Rotary Table Surface Area PVC tabletop, 2440×2440 mm (corner cut)
Rotary Table Load Capacity 150 KG
Rotary Table Rotation Speed Stepless speed regulation by frequency converter, 0.2~2 rpm
Platform Bearing Φ526 mm
Rotary Swing Arm Travel 40~700 mm
Compressor Travel 260mm
Compressor Driving Cylinder SC50×800
Max. Cutting Height 20~800mm
Cutting Blade Diameter Φ400 mm

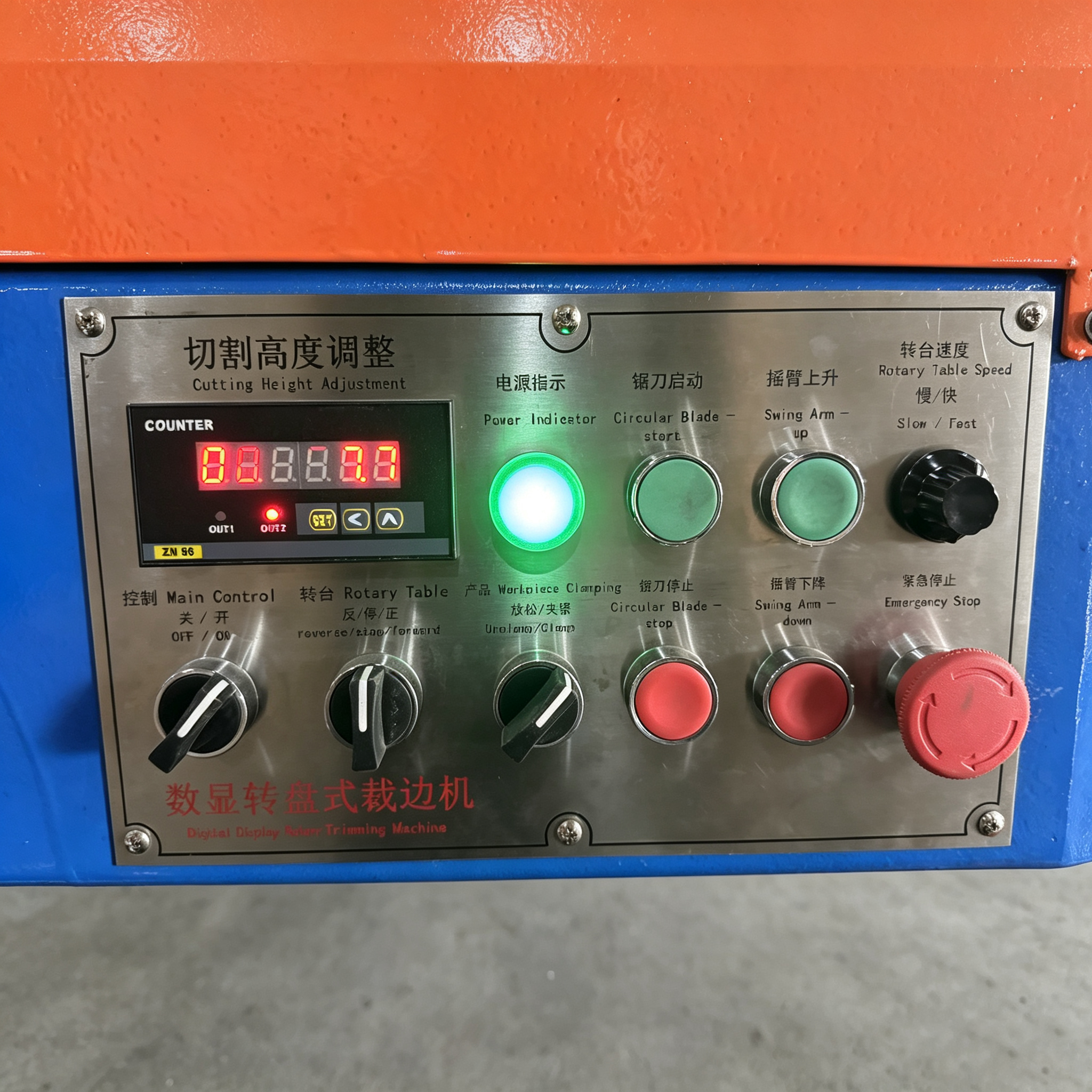

Control Mode Manual
