Stable Resistor Spark Plug Caps With No Resistance But Galvanical ≥30KV
Stable Resistor Spark Plug Caps With No Resistance But Galvanical ≥30KV
Specifications
Brand Name :
TY
Model Number :
TY0046B04
Certification :
ISO/TS 16949: 2009
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
250,000 pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Based on customer's demand
Color :
Black
Usage tem range :
-20℃~155℃
Customers :
BorgWarner, JANMOR etc.
Description

Stable and Durable PPS Spark Plug Resistor with no Resistance but Galvanical

Strength of product:

  1. Short-term heat resistance and long-term thermal stability are both better than any other current engineering plastics.
  2. Great dimension stability under the condition of high temperature and high humidity
  3. High mechanical strength but low abrasion
  4. No deformation, heat resistance, acid and alkali resistance, no dilatation
  5. Useful time is not less than 50,000 km or 3 years
  6. Can be designed and developed according to customer’s requirements

Product basic characteristics:

Resistance

0

Color

Black

Withstand voltage

≥30KV

Usage temperature

-20-155℃

Insertion and Removal forces

20N-70N

Material

PPS(Black)

Assembly way

Injection molding

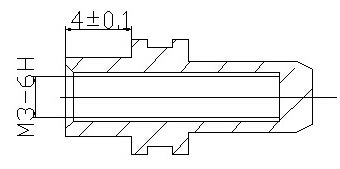

Assembly dimension: connecting ignition wire

Stable Resistor Spark Plug Caps With No Resistance But Galvanical ≥30KV

Assembly dimension: connecting Spark Plug

Stable Resistor Spark Plug Caps With No Resistance But Galvanical ≥30KV

Material properties of product:

Melting point

≥280℃

Heat distortion temperature

≥260℃

Luo's hardness

＞100HR

Tensile strength

＞170Mpa

Bending strength

＞220Mpa

Notched impact strength

＞16Mpa

Bending modulus

＞3.5x104

Molding shrinkage rate

＜0.0025%

Absorptivity

＜0.05%

Surface resistivity

≥1.0 X 1015Ω

Volume resistivity

≥1.0 X 1016Ω.m

Electrical strength

＞18KV/m

Friction coefficient

0.01-0.02

Applications:

  1. Used in the ignition system of auto engine

Product tags

non resistor spark plug cap

,

non resistor spark plugs

,

spark plug cap resistor
