30ft Sloping Roof Expandable Folding House with 56m² Building Area, Fully Galvanized Steel Structure, and Customizable 3 Bedroom Layout
30ft Sloping Roof Expandable Folding House with 56m² Building Area, Fully Galvanized Steel Structure, and Customizable 3 Bedroom Layout
30ft Sloping Roof Expandable Folding House with 56m² Building Area, Fully Galvanized Steel Structure, and Customizable 3 Bedroom Layout
30ft Sloping Roof Expandable Folding House with 56m² Building Area, Fully Galvanized Steel Structure, and Customizable 3 Bedroom Layout
30ft Sloping Roof Expandable Folding House with 56m² Building Area, Fully Galvanized Steel Structure, and Customizable 3 Bedroom Layout
30ft Sloping Roof Expandable Folding House with 56m² Building Area, Fully Galvanized Steel Structure, and Customizable 3 Bedroom Layout
30ft Sloping Roof Expandable Folding House with 56m² Building Area, Fully Galvanized Steel Structure, and Customizable 3 Bedroom Layout
30ft Sloping Roof Expandable Folding House with 56m² Building Area, Fully Galvanized Steel Structure, and Customizable 3 Bedroom Layout
Specifications
Brand Name :
FRAMER
Model Number :
30ft expandable folding house
Certification :
ISO 9001, CE
Place of Origin :
China
MOQ :
1
Price :
$16888
Payment Terms :
,T/T
Supply Ability :
100 Pcs/Month
Delivery Time :
30-45 days
Dimensions :
L9000*W6220*H2480MM
Internal dimensions :
L8740*W6060*H2200MM
Folding size :
L9000*W2200*H2480MM
Main frame :
Fully galvanized steel structure
Building area :
56m²
Weight :
≈ 6 tons
Power :
12KW
Unit type :

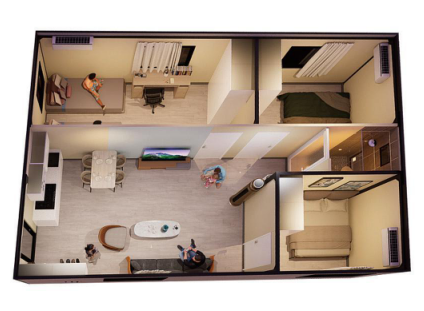

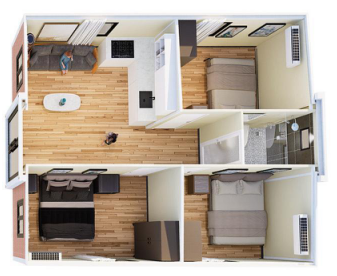

3 bedroom 1living room 1 bathroom （ Customizable）
Voltage :
Customizable
Description
30ft Sloping Roof Expandable Folding House - One Living Room Three Bedroom

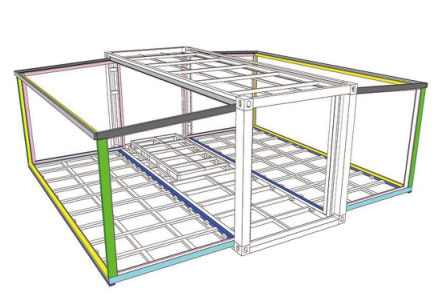

This innovative expandable folding house features mechanical expansion (double wing unfolding) to create a modern prefabricated structure that doubles its usable area when deployed. Designed to overcome the limitations of traditional housing, these units offer compact transportation dimensions while providing spacious living areas upon expansion.
Ideal for various applications, these expandable container houses can be customized as three-bedroom living spaces, dormitories, offices, homestays, cafes, medical stations, and more. Experience the unique flexibility and convenience of expandable container housing solutions.
Product Specifications
  • Product Name: Expandable folding house
  • Main Frame Material: Fully galvanized steel structure
  • Wall Material: 65mm thick EPS color steel sheet
  • Unfolded Area: 56m²

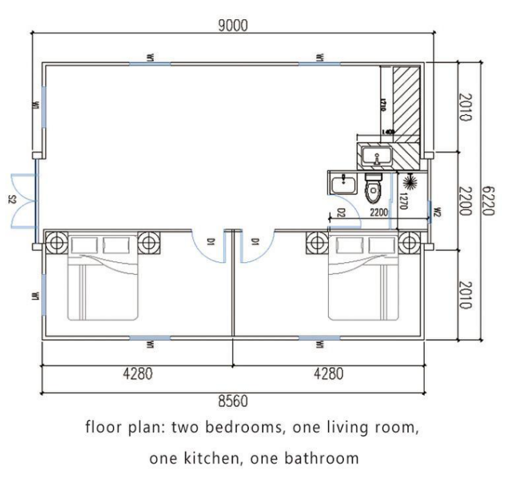

  • Expanded Size: L9000 × W6220 × H2480mm
  • Internal Size: L8740 × W6060 × H2200mm
  • Folded Size: L9000 × W2200 × H2480mm
  • Loading Capacity: One 40HQ container holds 1 set
30ft Sloping Roof Expandable Folding House with 56m² Building Area, Fully Galvanized Steel Structure, and Customizable 3 Bedroom Layout 30ft Sloping Roof Expandable Folding House with 56m² Building Area, Fully Galvanized Steel Structure, and Customizable 3 Bedroom Layout 30ft Sloping Roof Expandable Folding House with 56m² Building Area, Fully Galvanized Steel Structure, and Customizable 3 Bedroom Layout 30ft Sloping Roof Expandable Folding House with 56m² Building Area, Fully Galvanized Steel Structure, and Customizable 3 Bedroom Layout

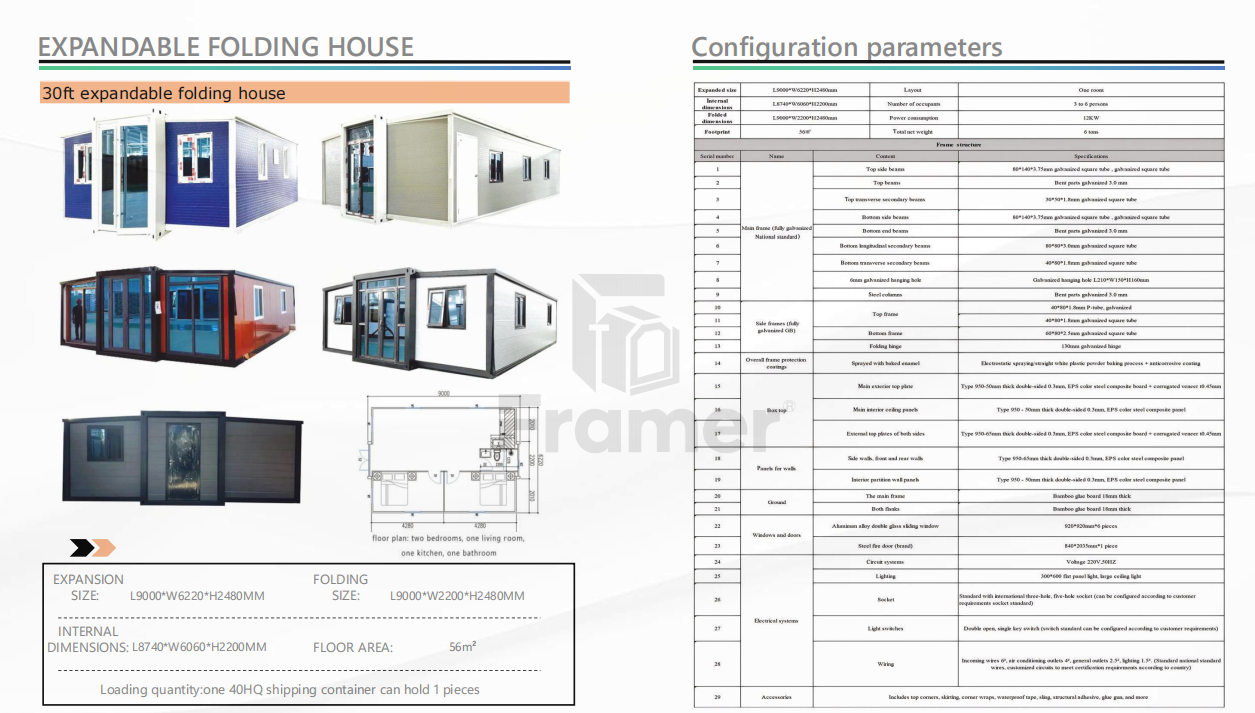

Main Structure Details
Model 30ft expandable folding house

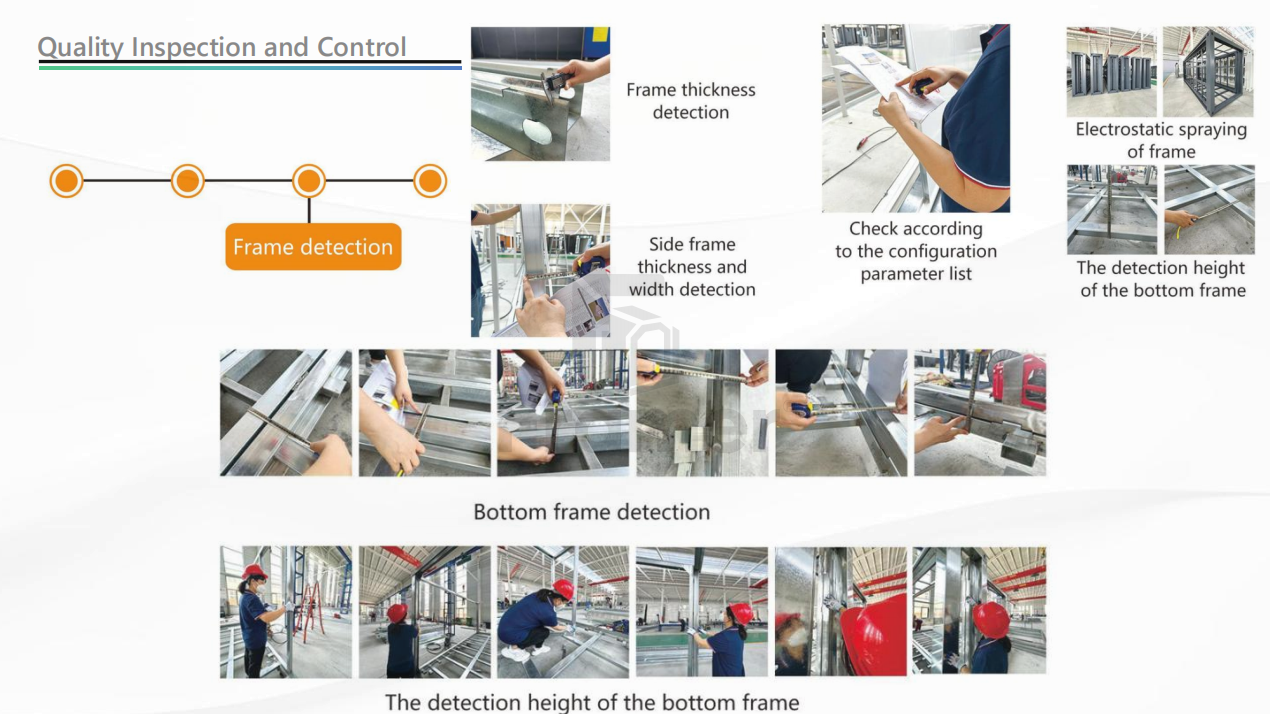

Skeleton Polishing Process After complete welding, polished for better plastic powder adhesion and increased service life
Bottom Skeleton Reinforced for stability - no shaking sensation when walking
Bottom Frame 60×80×2.5mm galvanized square tube
Main Ceiling Panel + External Ceiling Double-layer 50mm thick EPS color steel with nano insulation board
Spray Paint Electrostatic spraying with anti-corrosion treatment
Wall Material 65mm thick, 0.35mm on both sides, EPS composite board
Bathroom Polyurethane insulation at the bottom (optional)
Bathroom Bottom Guard 1.2mm thick stainless steel plate (optional)
Color Customizable
Sockets Customizable

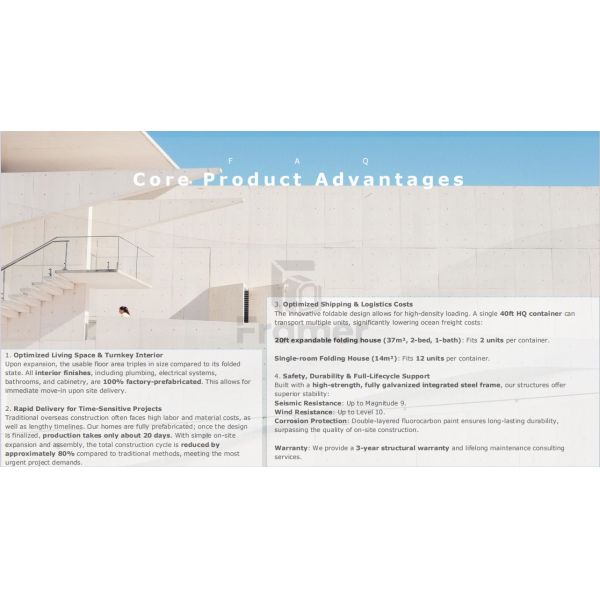

Product Advantages
