NIR Polymer Sorter Machine VPM Series SWIR Color Sorting Equipment
NIR Polymer Sorter Machine VPM Series SWIR Color Sorting Equipment
Specifications
Brand Name :
PHOENIX
Model Number :
VPM SWIR Sorter
Place of Origin :
Hefei
MOQ :
1
Price :
Price Negotiable
Payment Terms :
,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Delivery Time :
5-8 work days
Model :
VPM1
Chute :
1
Throughput (t/h) :
0.2-0.8
Air Pressure (MPa) :
0.6-0.8
Unpacked Weight (kg) :
660
Dimension (mm) :
1135*1928*2385
Description
VPM Series Aging Plastic Flakes Sorting Machine

VPM series aging flakes sorting machine uses a customized high-precision optical system, which can accurately detect the aging flakes and fluorescent flakes. The concentrated light source system is efficient, stable and reliable. Unique image enhancement algorithm can identify extremely faint flaws.

Product Description

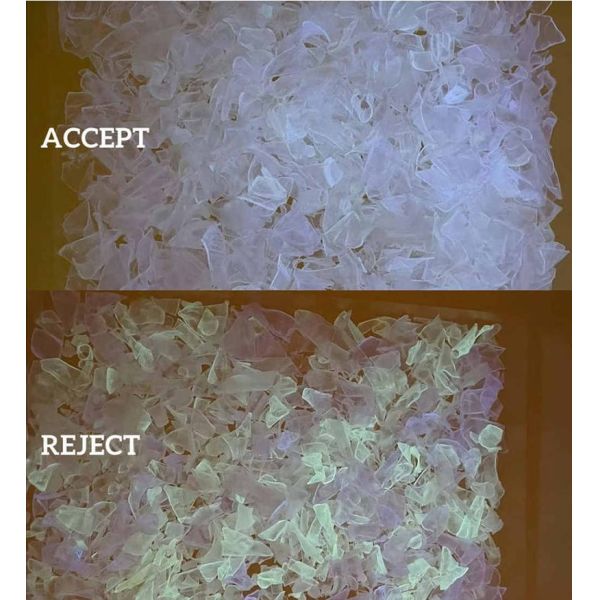

VPM series Aging plastic sorting machine integrates advanced ultraviolet light sorting technologies. With a VPM aged flakes sorter, you can remove yellowed, fluorescent flakes and aged flakes from high-quality PET flakes, as well as remove fluorescent flakes and light yellow flakes from HDPE flakes.

Our Advantages
  • Special customized high-precision optical system, accurately distinguish fluorescent film, aging film
  • Concentrated light source system, efficient and stable, safe and reliable
  • Unique image enhancement algorithm that can identify extremely weak flaws
Sorting Applications

NIR Polymer Sorter Machine VPM Series SWIR Color Sorting Equipment

Specifications
Model Chute Air Nozzle Throughput (t/h) Air Pressure (MPa) Air Consumption (m³/min) Power (kW) Unpacked Weight (kg) Dimension (mm)
VPM1 1 64 0.2-0.8 0.6-0.8 <0.5 1.3 660 1135*1928*2385
VPM4 4 256 0.8-3.0 0.6-0.8 <2.0 4.2 1250 2150*1928*2385
VPM6 6 384 1.0-4.0 0.6-0.8 <3.0 6.2 1850 2825*1928*2385
VPM8 8 512 2.0-6.0 0.6-0.8 <4.0 8.2 2300 3518*1928*2385
