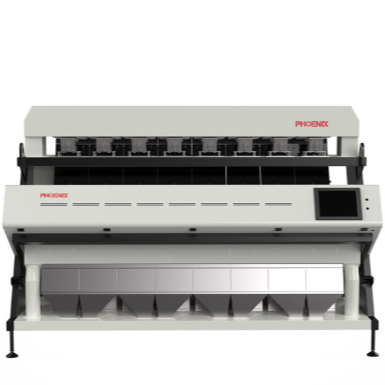

Z RGB Rice Color Sorter Machine 220V With 64 Nozzles Per Channel
Z RGB Rice Color Sorter Machine 220V With 64 Nozzles Per Channel
Z RGB Rice Color Sorter Machine 220V With 64 Nozzles Per Channel
Z RGB Rice Color Sorter Machine 220V With 64 Nozzles Per Channel
Specifications
Brand Name :
PHOENIX
Model Number :
Z RGB Sorter
Power :
0.9
Voltage :
220V ~ 50/60Hz
Dimension :
1255×2199×2076
Weight :
680
Condition :
New
Place of Origin :
Hefei
MOQ :
1
Delivery Time :
5-8 work days
Payment Terms :
D/A,D/P,T/T,,
Price :
Price Negotiable
Description
Z RGB Sorter Economical RGB Camera Optical Sorting System With 64 Nozzles Per Channel, Rice Color Sorter
Technical Features
  • An economical optical sorting solution specifically designed for rice
  • Efficient feeding and spreading realize uniform single-layer distribution of rice, minimizing overlap to the greatest extent
  • Sealed sorting chamber and electrical box, with industrial-grade dust-proof design, suitable for high-dust environments
  • Mature and reliable integrated dust removal control system, ensuring reliable continuous operation
  • Modular design, with the number of chutes selectable from 1 to 12 (1/4/6/8/10/12), matching different production capacity requirements
Cost-Effective 3-in-1 Inspection System
  • High-Resolution RGB Camera System
  • High-Intensity LED Illumination System
  • Superb precision detection to a wide range of defects of rice by color, size and shape:
    • Discolored Grains: Yellow rice, red rice, black/dark spots
    • Diseased/Moldy Grains
    • Broken/Cracked Grains
    • Immature Grains/Green Rice
    • Foreign Materials: Husks, straw, stones, glass, plastic, metal

Z RGB Rice Color Sorter Machine 220V With 64 Nozzles Per Channel

Specifications
Model Chute Air Nozzle Air Pressure (MPa) Air Consumption (L/min) Power (kW) Voltage Dimension (L×W×H)(mm) Weight* (kg)
Z1 1 64 0.6~0.8 <1000 0.9 220V ~ 50/60Hz 1255×2199×2076 680
Z4 4 256 0.6~0.8 <2000 2.9 220V ~ 50/60Hz 2170×2199×2076 1150
Z6 6 384 0.6~0.8 <3000 4.4 220V ~ 50/60Hz 2800×2199×2076 1480
Z8 8 512 0.6~0.8 <4000 5.9 220V ~ 50/60Hz 3430×2199×2076 1840
Z10 10 640 0.6~0.8 <5000 7.3 220V ~ 50/60Hz 4070×2199×2076 2180
Z12 12 768 0.6~0.8 <6000 8.8 220V ~ 50/60Hz 4835×2199×2076 2550
