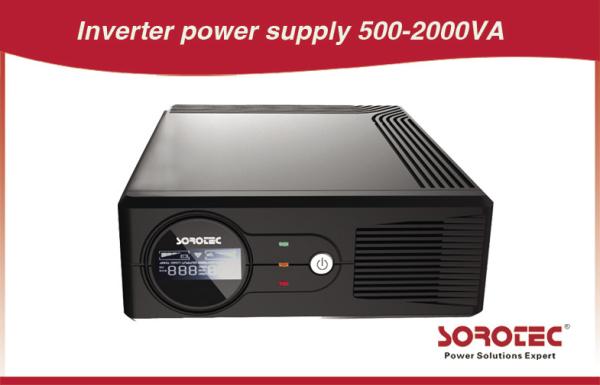

LCD 240VAC 24VDC UPS Power Inverter IG3110C 500VA / 300W, 1000VA / 600W for office
LCD 240VAC 24VDC UPS Power Inverter IG3110C 500VA / 300W, 1000VA / 600W for office
Specifications
Place of Origin :
China
Brand Name :
SOROTEC
Certification :
CE,ROHS,ISO9000
MOQ :
USD10000
Packaging Details :
Standard Exported Cartons and Pallets
Delivery Time :
Within 15-30days after receiving your 30% TT deposit
Payment Terms :
30% TT in advance, the balance before shipping
Supply Ability :
10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Model Number :
IG3110C Series 500 - 2000VA
Nominal voltage :
220/230/240VAC
Nominal frequency :
50/60Hz
Input Voltage Range :
176VAC-280VAC(±3VAC)
Input Frequency Range :
50/60Hz
Output Voltage Regulation :
220/230/240VAC±2%
Output Frequency Regulation :
50/60Hz+0.1Hz
Output Wave Form :
Modified sine wave
Operating Environment Temperature :
0℃～40℃
Operating Environment Humidity :
5%～95%(<40℃, no condensation)
Operating Environment Storage Temperature :
-25℃～55℃
Description

LCD 240VAC 24VDC UPS Power Inverter IG3110C 500VA / 300W, 1000VA / 600W for office

Key Features:

1.Auto change AC-DC
2.Over-load protection
3.Automatically restart
4.THree-steps intelligent charging control to recharging time
5.LED display, audible and visual alarm
6.LCD Display details
7.Full automatic and silent operation
8.Rack Tower design
9.Automatically charging
10.Built-in with 10Amp or 20Amp charger for up to 200Ah battery

Build-in with big charger:
IG3110C series long back up UPS Built-in with 10Amp charger for up to 100Ah battery

Full protection:
Protection for low battery voltage, over load, output short circuit and over- temperature
Restrain surge interference, eliminate noise, protection for Thunder striking, provide the reliable power

Applications:
Supply the reliable long back up time power for the Home appliances and office appliances (For example:DVD, Fan, TV etc)

Technical Specifications of LCD UPS inverter IG3110C 500-2000VA


Model

IG 3110C 500-2000VA

500-12

1000-12

2000-24

1000-24

Capacity

500VA/300W

1000VA/600W

2000VA/1200W

1000VA/600W

Nominal voltage

220/230/240VAC

Nominal frequency

50/60Hz

Input

Voltage Range

176VAC-280VAC(±3VAC)

Frequency Range

50/60Hz

Output

Voltage Regulation

220/230/240VAC±2%

Frequency Regulation

50/60Hz+0.1Hz

Wave Form

Modified sine wave

Switch time

Standard 2～4ms Typical 6ms

Current

Charge Current

10A

10A

10A

6A

DC Voltage

12V

12V

24V

24V

Overcharge Protection

15V

15V

30V

30V

Display

LCD

UPS Status, Input/output Voltage and Frequency, Load, AC, battery , fault, etc

Operating Environment

Temperature

0℃～40℃

Humidity

5%～95%(<40℃, no condensation)

Storage Temperature

-25℃～55℃

Elevation Noise (within 1 metre)

Less than 1500 meter
＜45dB

Physical

Weight(KG)

Net weight

2.0

2.5

2.5

2.0

Gross weight

2.2

2.7

2.7

2.2

Dimension:WXDXH mm

224×225×80

Back Panel Description of LCD UPS Inverter IG3110C 500-2000VA:
LCD 240VAC 24VDC UPS Power Inverter IG3110C 500VA / 300W, 1000VA / 600W for office

LCD 240VAC 24VDC UPS Power Inverter IG3110C 500VA / 300W, 1000VA / 600W for office
