1.25G EPON OLT SFP SC 1000BASE-PX20 Fiber Optic Transceiver
1.25G EPON OLT SFP SC 1000BASE-PX20 Fiber Optic Transceiver
1.25G EPON OLT SFP SC 1000BASE-PX20 Fiber Optic Transceiver
1.25G EPON OLT SFP SC 1000BASE-PX20 Fiber Optic Transceiver
1.25G EPON OLT SFP SC 1000BASE-PX20 Fiber Optic Transceiver
1.25G EPON OLT SFP SC 1000BASE-PX20 Fiber Optic Transceiver
1.25G EPON OLT SFP SC 1000BASE-PX20 Fiber Optic Transceiver
1.25G EPON OLT SFP SC 1000BASE-PX20 Fiber Optic Transceiver
1.25G EPON OLT SFP SC 1000BASE-PX20 Fiber Optic Transceiver
1.25G EPON OLT SFP SC 1000BASE-PX20 Fiber Optic Transceiver
1.25G EPON OLT SFP SC 1000BASE-PX20 Fiber Optic Transceiver
1.25G EPON OLT SFP SC 1000BASE-PX20 Fiber Optic Transceiver
Specifications
Brand Name :
Sopto
Model Number :
SPT-ET4311-SE2BD
Certification :
CE / RoHS / ISO9001
Place of Origin :
China Shenzhen
Payment Terms :
T/T; L/C; Paypal
Delivery Time :
3-5 working days
Packaging Details :
10 pcs/plate
Wavelength :
1490nmTx/1310nmRx
Fiber type :
SM
Data rate :
1.25Gb/s 1000BASE-PX20
Interface :
SC
Operating temperature :
Commercial 0 to 70℃
Product name :
Transceiver EPON OLT SFP
Description

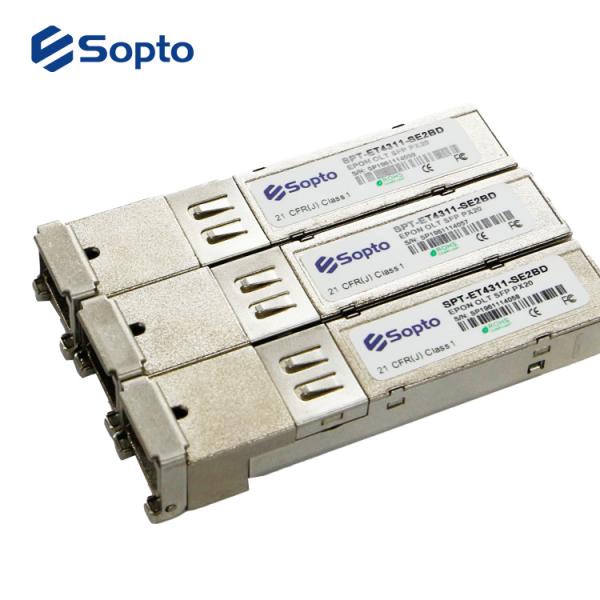

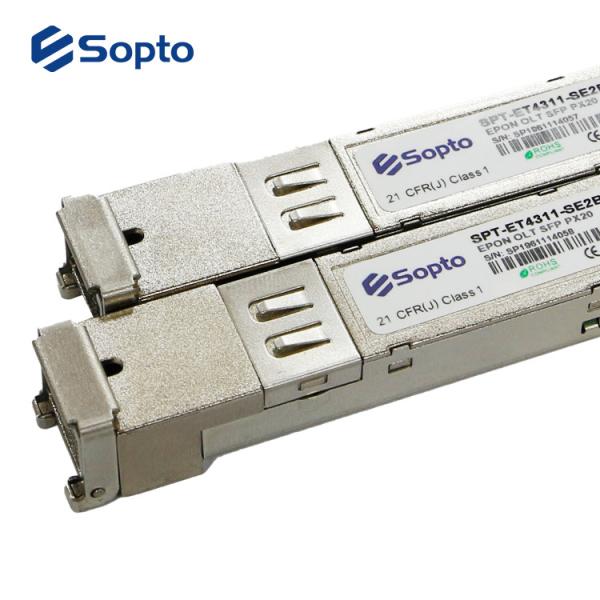

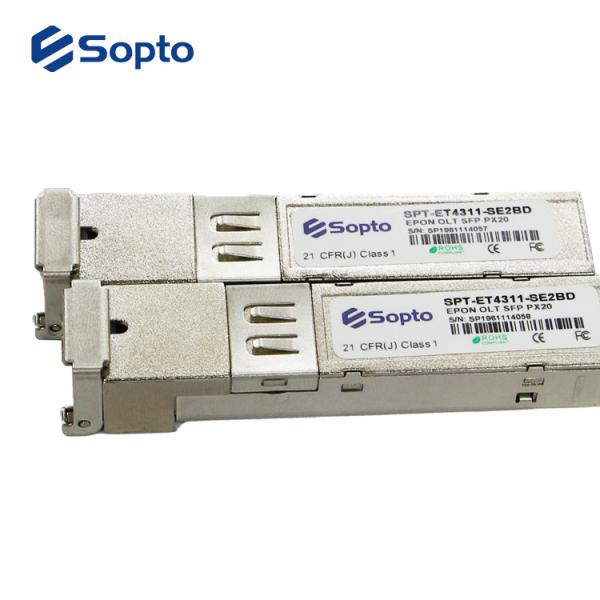

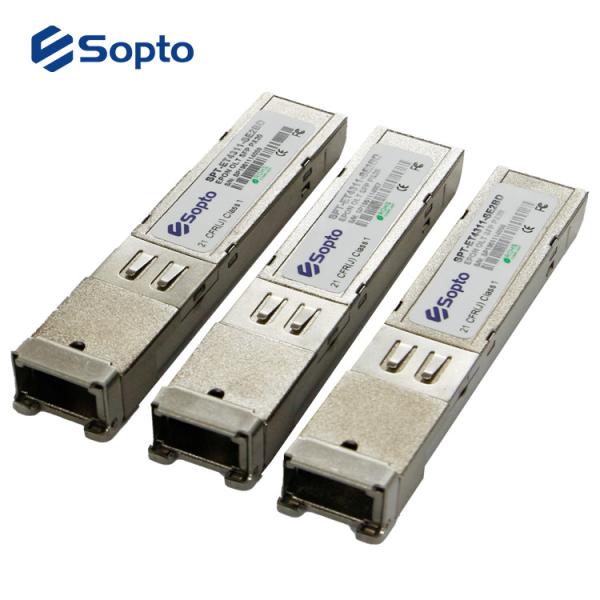

1.25G EPON OLT SFP SC 1000BASE-PX20 Fiber Optic Transceiver

1.25G Tx / 1.25G Rx SC Interface 1000BASE-PX20 EPON SFP Module with DDM

SOPTO’s EPON SFP is a series of optical transceiver modules operating in Ethernet Passive Optical Networks (EPON). From the Central Office’s (CO) Optical Line Terminal (OLT, with EPON SFP transceiver/module) a single strand of fiber goes out to a passive optical splitter where its signal is multiplied to maximum 64 different lines in EPON. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers.

Features

● Built-in digital diagnostic functions

● Single +3.3 Power Supply, Hot-pluggable

● Up to 20km distance at 9/125µm G.652 SMF

● Operating Case Temperature: Standard: 0~70°C

● SFP Package with SC Interface or Pigtailed, both ONU and OLT series

● Ethernet Passive Optical Networks (GEPON or EPON) IEEE 802.3ah standards have defined downstream data rates up to 1.25Gbps.

Compliant

● SFP MSA and SFF-8472

● 1000BASE- PX20/PX20+/ PX20++

Sopto fiber optic transceiver took the first lead to pass the ISO9001 quality system, the requirements of European CE, RoHs

1.25G EPON OLT SFP SC 1000BASE-PX20 Fiber Optic Transceiver

Application

● EPON For P2MP Application

1.25G EPON OLT SFP SC 1000BASE-PX20 Fiber Optic Transceiver

Ordering Information

PN Application

Data Rate

(Gbps)

 Distance Fiber

Output Power

(dBm)

Sensitivity

(dBm)

 Interface Temp. DDM
SPT-ET4311-SE2BD

PON ports of

EPON OLT

 1.25/1.25 PX20 SM 1.5～5 -28 Simplex SC 0 to 70℃ D
SPT-ET4311-SE2AD

PON ports of

EPON OLT

 1.25/1.25 PX20+ SM 3～8 -30 Simplex SC 0 to 70℃ D
SPT-ET4311-SE2CD

PON ports of

EPON OLT

 1.25/1.25 PX20++ SM 4～10 -30 Simplex SC 0 to 70℃ D
SPT-EU3411-SE2AD

PON ports of

Some EPON ONU

 1.25/1.25 PX20+ SM 0.5～5 -28 Simplex SC 0 to 70℃ D
