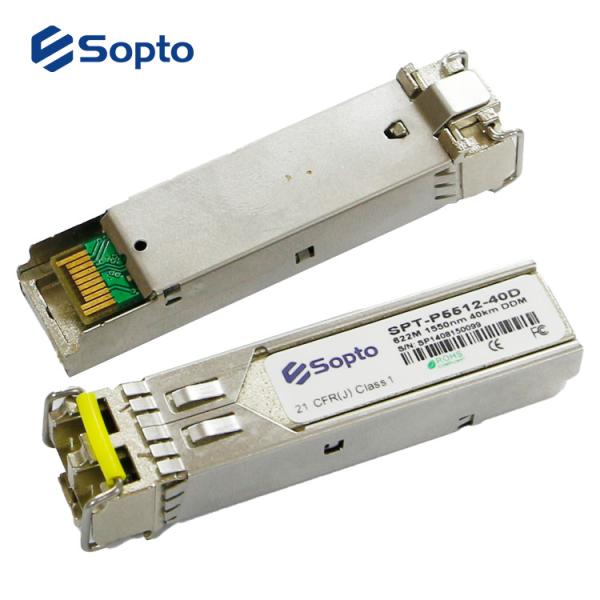

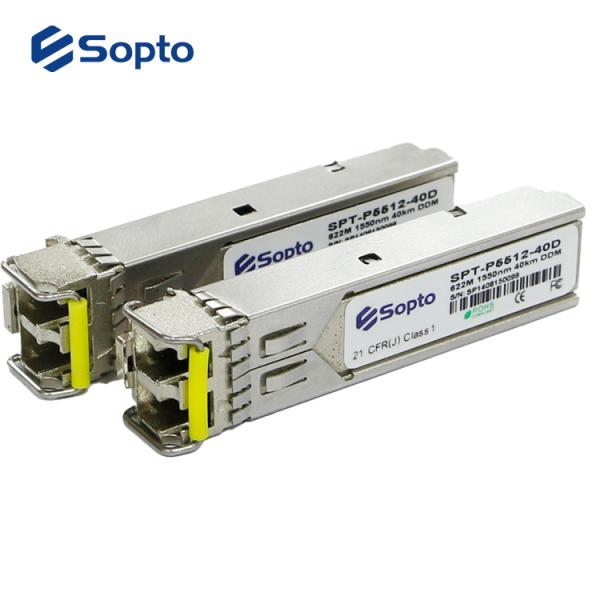

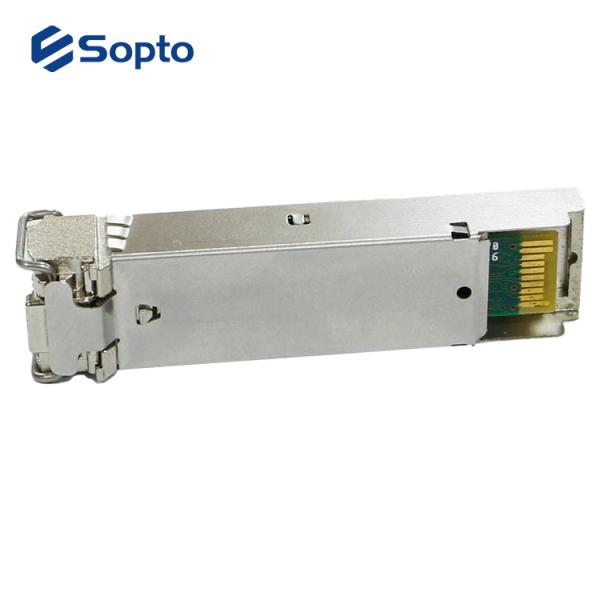

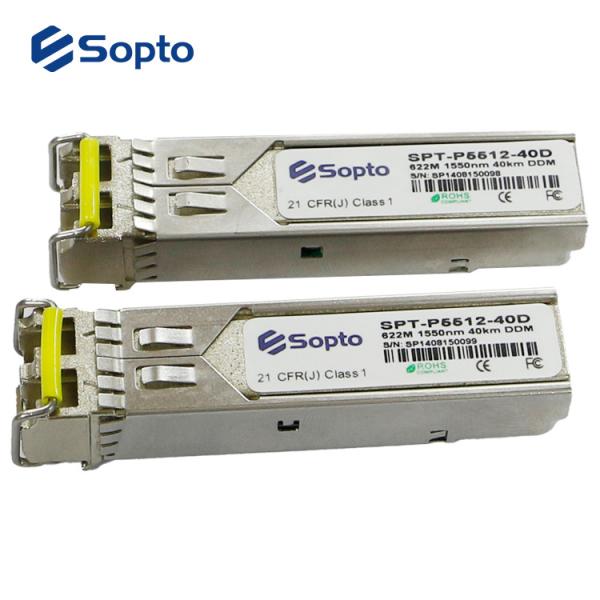

622m 40km 1550nm Sfp Gigabit Ethernet Module Lc Interface With DDM
622m 40km 1550nm Sfp Gigabit Ethernet Module Lc Interface With DDM
622m 40km 1550nm Sfp Gigabit Ethernet Module Lc Interface With DDM
622m 40km 1550nm Sfp Gigabit Ethernet Module Lc Interface With DDM
622m 40km 1550nm Sfp Gigabit Ethernet Module Lc Interface With DDM
622m 40km 1550nm Sfp Gigabit Ethernet Module Lc Interface With DDM
622m 40km 1550nm Sfp Gigabit Ethernet Module Lc Interface With DDM
622m 40km 1550nm Sfp Gigabit Ethernet Module Lc Interface With DDM
622m 40km 1550nm Sfp Gigabit Ethernet Module Lc Interface With DDM
622m 40km 1550nm Sfp Gigabit Ethernet Module Lc Interface With DDM
Specifications
Brand Name :
Sopto
Model Number :
SPT-P5512-40D
Certification :
ISO9001 / CE / RoHS
Place of Origin :
China Shenzhen
Payment Terms :
T/T; L/C; Paypal
Delivery Time :
3-5 working days
Packaging Details :
0.024 kg/pcs
Wavelength :
1550nm
Fiber type :
SM
Operating temperature :
Commercial 0 to 70℃
Application :
Gigabit Ethernet
Distance :
40KM
Connector :
LC Interface with DDM
Date rate :
622M
Description

622m 40km 1550nm Sfp Gigabit Ethernet Module Lc Interface With DDM

The SFP transceivers are high performance, cost effective modules supporting data-rate of 622Mbps and 40km transmission distance with SMF.

The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Features

l Up to 622Mbps data-rate

l 1550nm DFB laser and PIN photo detector for 40km transmission

l Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

l Digital Diagnostic Monitoring: Internal Calibration or External Calibration

l Compatible with SONET OC-24-LR-1

l Compatible with RoHS

l +3.3V single power supply

l Operating case temperature:

Standard: 0 to +70°C

Industrial: -40 to +85°C

Applications

l SDH STM-4 L-4.1

l SONET OC-12 LR1

l Other optical links

622m 40km 1550nm Sfp Gigabit Ethernet Module Lc Interface With DDM

622m 40km 1550nm Sfp Gigabit Ethernet Module Lc Interface With DDM

622m 40km 1550nm Sfp Gigabit Ethernet Module Lc Interface With DDM

622m 40km 1550nm Sfp Gigabit Ethernet Module Lc Interface With DDM

Ordering Information

Part Number Product Description
SPT-P5512-40 1550nm, 622Mbps, 40km, 0ºC ~ +70ºC
SPT-P5512-40D 1550nm, 622Mbps, 40km, 0ºC ~ +70ºC, DDM
SPT-P5512-40TD 1550nm, 622Mbps, 40km, -40ºC ~ +85ºC, DDM
