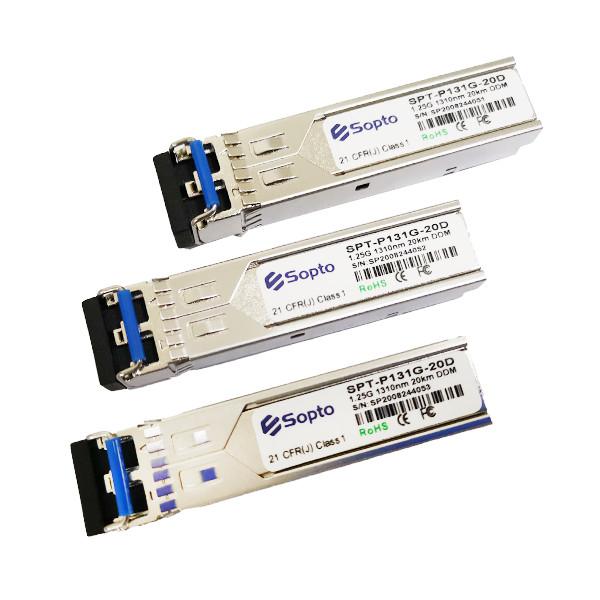

1.25gbps 1310nm Sm Duplex Lc 20km Fiber Optic Sfp Module
1.25gbps 1310nm Sm Duplex Lc 20km Fiber Optic Sfp Module
1.25gbps 1310nm Sm Duplex Lc 20km Fiber Optic Sfp Module
1.25gbps 1310nm Sm Duplex Lc 20km Fiber Optic Sfp Module
1.25gbps 1310nm Sm Duplex Lc 20km Fiber Optic Sfp Module
1.25gbps 1310nm Sm Duplex Lc 20km Fiber Optic Sfp Module
1.25gbps 1310nm Sm Duplex Lc 20km Fiber Optic Sfp Module
1.25gbps 1310nm Sm Duplex Lc 20km Fiber Optic Sfp Module
1.25gbps 1310nm Sm Duplex Lc 20km Fiber Optic Sfp Module
1.25gbps 1310nm Sm Duplex Lc 20km Fiber Optic Sfp Module
Specifications
Brand Name :
Sopto
Model Number :
SPT-P131G-20(D)
Certification :
CE RoHS FCC
Place of Origin :
Shenzhen China
MOQ :
200pcs
Payment Terms :
L/C, T/T,Paypal, D/P
Supply Ability :
50000 pcs per month
Delivery Time :
5-8 days
Packaging Details :
10 pcs standard boxes, mass order with carton box package can do OEM according to customer's request.
Brand :
Sopto,OEM
Wavelength :
1310/1550nm
Fiber type :
SM
Product name :
fiber transceiver,low cost single mode fiber optic transceiver 1310nm sfp 20km
Connector :
duplex lc
Transmission distance :
20km
Application :
FTTH FTTB FTTX Network,Datacom 10G Ethernet/ 2x 4x 8x FC
Date rate :
1.25Gbps
Operating temperature :
Commercial 0 to 70 Industrial -40 to 85
MOQ :
200pcs
DDM :
Available
Description

1.25gbps 1310nm Sm Duplex Lc 20km Fiber Optic Sfp Module

Description of 1.25g sfp module

The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.

The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Features of 1.25g sfp module

● Dual data-rate of 1.25Gbps/1.063Gbps operation

● 1310nm FP laser and PIN photo detector for 20km transmission

● Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

● Digital Diagnostic Monitoring: Internal Calibration or External Calibration

● Compatible with SONET OC-24-LR-1

● Compatible with ROHS

● +3.3V single power supply

● Operating case temperature:

Standard: 0 to +70°C

Industrial: -40 to +85°C

Applications

● Gigabit Ethernet

● Fiber Channel

● Switch to Switch interface

● Switched backplane applications

● Router/Server interface

● Other optical transmission systems

Specifications

Product NO. SPT-P131G-20D
Wavelength 1310/1550nm
Fiber Type Single mode
Transmission Distance 10KM/20KM
Operating temperature

Standard: 0 to +70°C

Industrial: -40 to +85°C
Date rate 1.25Gbps/1.063Gbps
Connector Duplex LC

Optical and Electrical Characteristics

SPT-P131G-20D: (FP and PIN, 1310nm, 20km Reach)

Parameter Symbol Min Typical Max Unit Notes
Transmitter
Centre Wavelength λc 1260 1310 1360 nm
Spectral Width (RMS) σ 4 nm
Average Output Power Pout -9 -3 dBm 1
Extinction Ratio ER 9 dB
Optical Rise/Fall Time (20%~80%) tr/tf 0.26 ns
Data Input Swing Differential VIN 400 1800 mV 2
Input Differential Impedance ZIN 90 100 110 Ω
TX Disable Disable 2.0 Vcc V
Enable 0 0.8 V
TX Fault Fault 2.0 Vcc V
Normal 0 0.8 V
Receiver
Centre Wavelength λc 1260 1580 nm
Receiver Sensitivity -24 dBm 3
Receiver Overload -1 dBm 3
LOS De-Assert LOSD -26 dBm
LOS Assert LOSA -36 dBm
LOS Hysteresis 1 4 dB
Data Output Swing Differential Vout 400 1800 mV 4
LOS High 2.0 Vcc V
Low 0.8 V

Mechanical Dimensions

1.25gbps 1310nm Sm Duplex Lc 20km Fiber Optic Sfp Module

Ordering Informations
Part Number Product Description
SPT-P131G-20 1310nm 1.25Gbps 20km 0ºC ~ +70ºC Single-mode Duplex lc SFP Module Fiber Optic Transceiver
SPT-P131G-20D 1310nm 1.25Gbps 20km 0ºC ~ +70ºC DDM,Single-mode Duplex lc SFP Module Fiber Optic Transceiver
SPT-P131G-20TD 1310nm 1.25Gbps 20km -40ºC ~+85ºC DDM,Single-mode Duplex lc SFP Module Fiber Optic Transceiver
SPT-P131G-20T 1310nm 1.25Gbps 20km -40ºC ~+85ºC Single-mode Duplex lc SFP Module Fiber Optic Transceiver
