Specifications
Model NO. :
SNSF
Brand :
Wxsoon
Function :
Chamfer
Customized :
Drawings or Details
Coating :
Coating
Tooth Form :
Spiral Tooth
Tooth Space :
Extra Dense Tooth
Structure :
Integral
Material :
Tungsten Steel
Type :
Cylindrical Milling Cutter
Transport Package :
1 Piece/Plastic Tube
Specification :
D1~20mm
Trademark :
wxsoon
Origin :
China
HS Code :
8205100000
Production Capacity :
50000 Pieces/Month
MOQ :
100
Price :
8
Description

Product name: 2 flutes tungsten carbide inner corner round end mill
Flutes Number: 2
Flute Diameter: 1.00~12.00 mm
Angle: 60 90 120 degree
Shank Diameter: 4.00 ~12.00 mm
Total Length: 50.00/75.00 mm
Material: tungsten carbide
application: CNC milling machine/machining center
place of origin: China
Brand: wxsoon

OEM/ODM: According to samples/drawings
Minimum Order Quantity: 1-5pcs

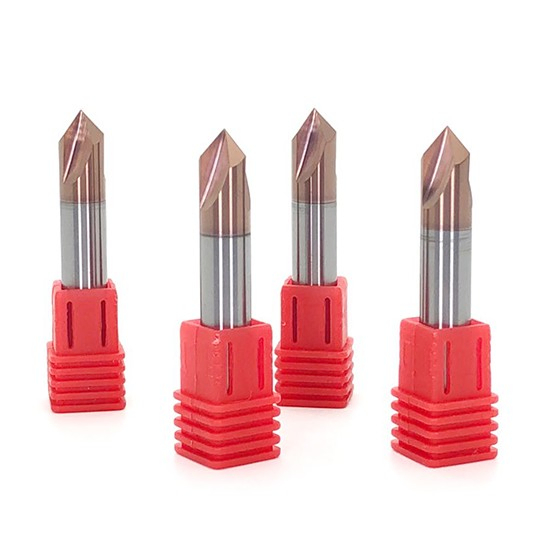

Wxsoon 60 90 120 Degree Carbide Chamfer Endmill for Steel

60 90 120 degree tungsten carbide chamfer end mill for steel specifications

tungsten carbide chamfer end mill standard type

No. Flute Diameter(mm) Angle(°) Shank Diameter(mm) Overall length(mm) Number of Teeth
D1*90°*D4*50 1 90° 4 50 2
D1.5*90°*D4*50 1.5 90° 4 50 2
D2*90°*D4*50 2 90° 4 50 2
D2.5*90°*D4*50 2.5 90° 4 50 2
D3*60°*D4*50 3 60° 4 50 3
D3*90°*D4*50 3 90° 4 50 3
D3*120°*D4*50 3 120° 4 50 3
D3.5*90°*D4*50 3.5 90° 4 50 3
D4*60°*D4*50 4 60° 4 50 3
D4*90°*D4*50 4 90° 4 50 3
D4*120°*D4*50 4 120° 4 50 3
D5*60°*D5*50 5 60° 5 50 3
D5*90°*D5*50 5 90° 5 50 3
D5*120°*D5*50 5 120° 5 50 3
D6*60°*D6*50 6 60° 6 50 3
D6*90°*D6*50 6 90° 6 50 3
D6*120°*D6*50 6 120° 6 50 3
D8*60°*D8*60 8 60° 8 60 3
D8*90°*D8*60 8 90° 8 60 3
D8*120°*D8*60 8 120° 8 60 3
D10*60°*D10*75 10 60° 10 75 3
D10*90°*D10*75 10 90° 10 75 3
D10*120°*D10*75 10 120° 10 75 3
D12*60°*D12*75 12 60° 12 75 3
D12*90°*D12*75 12 90° 12 75 3
D12*120°*D12*75 12 120° 12 75 3

tungsten carbide chamfer end mill extra length type

No. Flute Diameter(mm) Angle(°) Shank Diameter(mm) Overall length(mm) Number of Teeth
D8*90°*D8*75 8 90° 8 75 3
D10*90°*D10*75 10 90° 10 75 3
D12*90°*D12*75 12 90° 12 75 3

Wxsoon 60 90 120 Degree Carbide Chamfer Endmill for SteelWxsoon 60 90 120 Degree Carbide Chamfer Endmill for SteelWxsoon 60 90 120 Degree Carbide Chamfer Endmill for SteelWxsoon 60 90 120 Degree Carbide Chamfer Endmill for SteelWxsoon 60 90 120 Degree Carbide Chamfer Endmill for SteelWxsoon 60 90 120 Degree Carbide Chamfer Endmill for SteelWxsoon 60 90 120 Degree Carbide Chamfer Endmill for SteelWxsoon 60 90 120 Degree Carbide Chamfer Endmill for SteelWxsoon 60 90 120 Degree Carbide Chamfer Endmill for SteelWxsoon 60 90 120 Degree Carbide Chamfer Endmill for SteelWxsoon 60 90 120 Degree Carbide Chamfer Endmill for Steel
1. Are you manufacturer? Do you have factory?
Yes,WXSOON is Professional manufacturer which located in Wuxi City Jiangsu Province in China,we have more than 20 years experience in this field metal cutting tools.

2. What machines are you using to produce carbide tools?
WXSOON have Hawemat Walter,ANCA grinding machines in our factory, also have Zoller detection machine &PG1000 Checking machine from USA

3.How about shipping cost?
WXSOON can offer shipping method according to customers request, we will give you some discount if you buy large quantity products.

4. Can you delivery products to our Forwarder in China?
Yes, ,we will delivery the order to the place if you have forwarder in China

5. Do you make OEM/ODM?
Yes, we can offer OEM/ODM service. We have laser machine,can laser your logo and sizes on the body of cutting tools,also can print labels.

6. How about the delivery time?
Usually 5~12 days. According to the quantity,delivery time is different. We will confirm before you plan to order with wxsoon.

7. Do you attend International Exhibition?
Yes, we had attended exhibitions in Germany(EMO), Indonesia, Malaysia .Russia. India, Thailand, Vietnam, Taiwan, etc. We are ready to go to America and Brazil.

8. Can you produce Special carbide Tools ?
Yes We can. Our factory main market change from standard cutting tools to special tools. Special tools according your drawings or samples.
