Waste Water Vacuum Belt Filter Slurry Treatment Steel Frame Support Automatic Control
Waste Water Vacuum Belt Filter Slurry Treatment Steel Frame Support Automatic Control
Waste Water Vacuum Belt Filter Slurry Treatment Steel Frame Support Automatic Control
Waste Water Vacuum Belt Filter Slurry Treatment Steel Frame Support Automatic Control
Specifications
Brand Name :
UNIVEE
Model Number :
U-BF
Place of Origin :
China
Certification :
ISO
MOQ :
1 pcs
Price :
Customized
Payment Terms :
T/T, L/C
Supply Ability :
1 sets per 2 month
Delivery Time :
8 weeks
Packaging Details :
Steel frame, Wooden Case, Tray, Suitable for multi transpiration
Name :
Vacuum Belt FIlter
Color :
Customized
Framework :
Steel and Roller
Power :
60W
Belt Width :
2800mm
Filtration :
Slurry
Application :
Solid Liquid Separation
Control :
PLC or DCS
Operation :
Continously
Guarantee :
1 Year
Service :
Available
Description

Waste Water Vacuum Belt Filter Slurry Treatment Steel Frame Support Automatic Control

Product Description:

Significant developments in belt press filter technology include: cloth developments, using three belts and, the V-fold belt. Cloth developments include the double weave which incorporates different yarn types to combine the specific advantages of each. A double weave woven wire belt is also available which has a better life span and durability than a conventional wire belt.

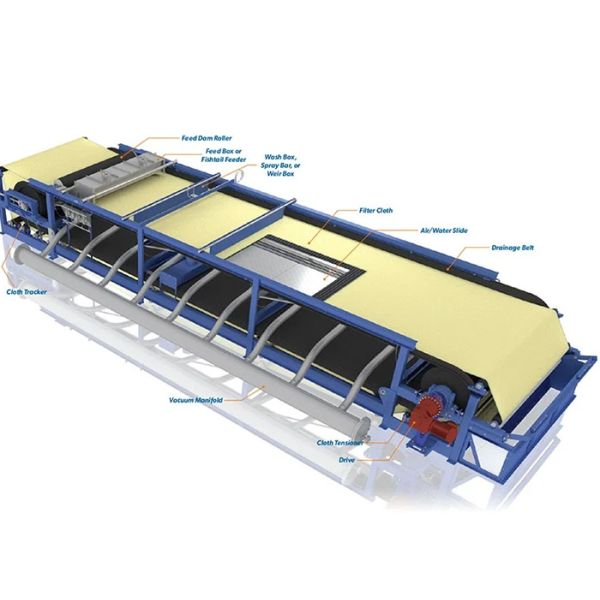

The vacuum belt filter is a continously operating filter for vacuum filtration, cake washing and drying of high solids slurries. The technology is based upon a filter cloth supported by a drainage belt made of rubber, EPDM and other synhetic materials.

In the mining, chemical, and water treatment industries, the belt filter is a type of industrial equipment used in solid and liquid separation technologies such as sludge dewatering.

Waste Water Vacuum Belt Filter Slurry Treatment Steel Frame Support Automatic Control

Features:

Assembled frame block-design, it is very easy for transportation, installation and maintenance.
High automatic control; continuously automatic control of feeding, filtration, washing, dewatering, discharging, cloth washing; improve productivity efficiency; reduce operation cost; reduce the working strength of labors; improve working environment.
Convenience filtrating process; by adjusting the thickness of cake, amount of washing water, countercurrent washing grade, vacuum degree and speed of cloth can achieve to a best filtration efficient.
Convenience filtrating process; by adjusting the thickness of cake, amount of washing water, countercurrent washing grade, vacuum degree and speed of cloth can achieve to a best filtration efficient.

Applications:

Application of Materials Liquid / Solid Ratio
Ciric Acid 5/1 - 3/1
Zinc Oxide 10/1
Ferromagnet 2.5/1 - 4/1
Sulphur Mine 4/1 - 2.5/1
Coal Ash 10/1
Gold Mine 2/1
Sulphuric Sludeg 1.5/1
Alumine 5/1 - 4/1
Wet Cement 2/1
Mining Tailings 6/1
ABS Resin 10/1

Technical Parameter:

Control System PLC Or DCS
Filtration Area 10-1000 M2
Drive System Variable Speed Drive
Application Solid-Liquid Separation
Filter Cake Wash Counter-Current Wash
Type Continuous Vacuum Filter
Filter Cake Discharge Scraper Or Belt Press
Material Of Construction Stainless Steel Or Carbon Steel
Operation Continuous
Vacuum Source Vacuum Pump

FAQ:

Q: What is the brand name of the vacuum belt filter?

A: The brand name of the belt filter is UNIVEE.

Q: What is the model number of the vacuum belt filter?

A: The model number of the belt filter is U-BF.

Q: Where is the belt filter manufactured?

A: The belt filter is manufactured in China.
