Automatic Dehydration Sludge Filter Press Machine Separation Waste Water Filter Press
Automatic Dehydration Sludge Filter Press Machine Separation Waste Water Filter Press
Automatic Dehydration Sludge Filter Press Machine Separation Waste Water Filter Press
Automatic Dehydration Sludge Filter Press Machine Separation Waste Water Filter Press
Specifications
Brand Name :
UNIVEE
Model Number :
U-PF-2405
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Customized
Payment Terms :
T/T, L/C
Supply Ability :
3 sets per month
Delivery Time :
10-12 weeks
Packaging Details :
Wooden Case, Steel Frame suitable for Multi-transportation
Name :
Press Filter
Application :
Food, Mining, Ceramic Industry
Voltage :
380V
Frequency :
50Hz
Condition :
Brand New
Operation :
Continuously
Control :
Automatic
Material :
Mild Steel
Type :
Chamber
Service :
Engineering service available
Description

Automatic Sludge Dehydration Press Filter Separation Application

1. Brief Introduction

Filter press is a common solid-liquid separation equipment, using special filtering medium to press on the object and dialyze out the liquid. In the beginning of 18th century, the filter press has been applied in chemical industry, till now, it is applied in chemical industry, pharmacy, metallurgy, dyestuff, food, brewing industry, ceramic and environmental protection industries.

Automatic Dehydration Sludge Filter Press Machine Separation Waste Water Filter Press

2. Application

Pharmacy, chemical industry, metallurgy, food, brewing industry, ceramic, petroleum refining, sewage treatment, etc..

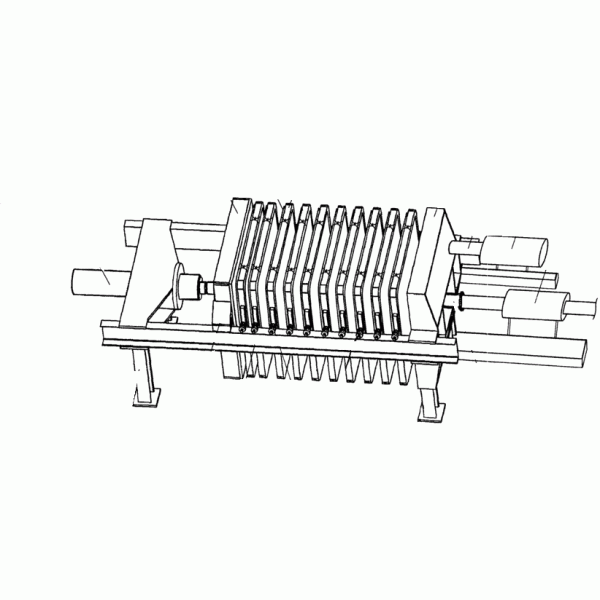

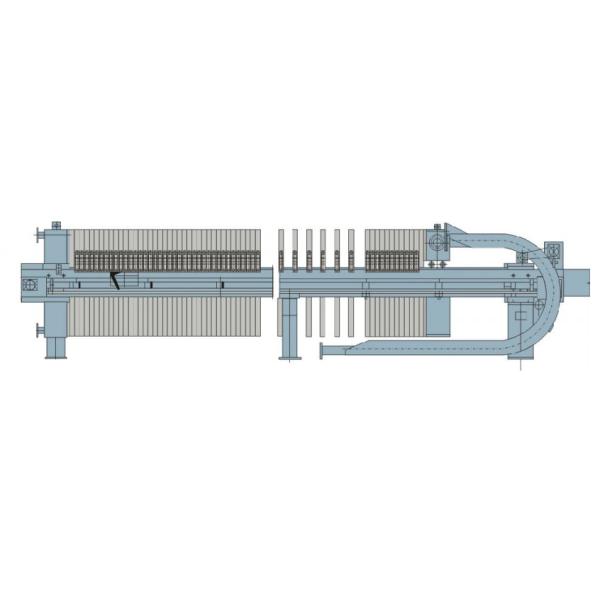

3. Consist Structure

Frame

Frame is the basic component of filter press. Thrust plate and compass plate is on the two side of filter press, connected by side beams. Main beam supports the filter plate, filter frame and press plate.

Thrust plate

Thrust plate connects filter press and foundation. The feeding hole of chamber type filter press is in the middle of thrust plate, other four holes are on four corners. The upper two holes are inlet of cleaning solution and compressed air; the lower holes are outlet.

Compass plate

Compass plate uses to press the filter plate and filter frame tightly, the rollers on two side to compass plate can slide on the rail of main beam.

4. Advantages of Press Filter

Stable operation, low consumption

Widely applicated in different area for different cake moisture requirement

Integrated PLC, HMI and automatic instrumentation control system, intelligent, hi-efficient, more conveniency

Cloth washing more cleanly

Reasonable design structure

Automatic Dehydration Sludge Filter Press Machine Separation Waste Water Filter Press

5. Support and Services

Customized design
Equipment supply
Installation and commissioning
Operator training and process optimization
Routine maintenance and troubleshooting
Spare Parts and consumables

6. Packing and Delivery

UNIVEE has rich experiences of products packing, loading and delivery for mutli-transporation.

Type of Packing:

Packed in Crate / Wooden Case / Tin Lined Wooden Case / Plywood Case.

Packed with fumigation package

Packed in plastic lorap, double bister and jute rope

6. FAQ

Q1: How to process an order for press filter?

A: The product is customized, first of all, please provide your requirement details, our engineers will provide the prelimianry plan for your reference.

Q2: Do you offer guarantee?

A: Yes, we offer one year guarantee from the date of commissioning.

Q3. Can you offer Design Service?

A: Yes, we could design full solution drawings as per client's request.
