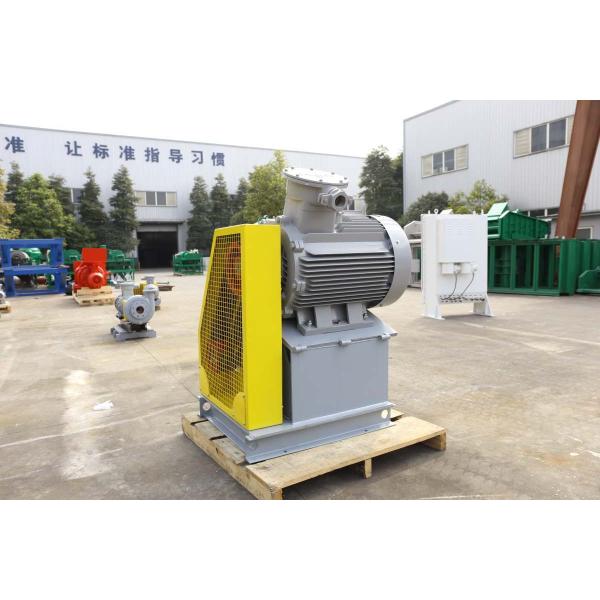

WJQ Shear Pumps 95% Efficiency High Shear Mixer Pump For Drilling Mud Polymer

Specifications

Place of Origin :

Sichuan，China

Brand Name :

XBSY

Certification :

USE 18000,USE14000，EAC，CE，ISO9000

MOQ :

Packaging Details :

Ply Wood Box,iron box

Delivery Time :

1-2 months

Payment Terms :

Supply Ability :

1000

Price :

Price Negotiable

Model :

WJQ5 × 6J-75

Flow (m³/h) :

150

Head (m) :

Rotational Speed (rpm) :

2110

Efficiency (%) :

Power (kW) :

39.4，75

Weight (kg) :

1220

L × W × H (mm) :

1093×1161×1488

Description

XBSY WJQ Shear Pump: 95%+ Efficiency for Drilling Mud Polymer & Clay Processing

The XBSY WJQ series shear pump revolutionizes drilling fluid conditioning with targeted polymer/clay processing. Engineered for high-viscosity mud systems, it eliminates "fish eyes" and prevents polymer chain agglomeration, accelerating hydration by 40% while reducing bentonite consumption by 15–30% . Its multi-stage shearing mechanism (≥95% efficiency) ensures uniform additive dispersion, slashing mud configuration time by 30% and enhancing fluid-loss control for stable wellbore pressure . Compatible with all water-based/oil-based muds.

WJQ Shear Pumps 95% Efficiency High Shear Mixer Pump For Drilling Mud Polymer

Features
Patented Seal Technology - Service life is 6 times longer than an ordinary mechanical seal. (Patent No. ZL200720079857.2)
High Shearing Efficiency - Special impeller and shear plate are used - shearing efficiency≥95%.
Long Service Life - The impeller and shear plate are made of stainless steel, and the rest of the overflow parts are made of high wear-resistant cast iron.
Patented Appearance - Compact and reasonable structure (Patent No. ZL200730094452.1).

Model	Flow (m³/h)	Head (m)	Rotational Speed (rpm)	Efficiency (%)	Power (kW)		Weight (kg)	L × W × H (mm)
/	/	/	/	/	Shaft power	Motor Power	/	/
WJQ5 × 6J-75	150	27	2110	28	39.4	75	1220	1093×1161×1488
