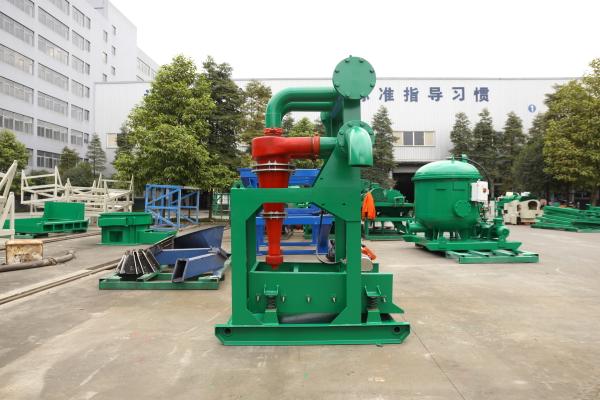

1150kg 0.75kW Desander Machine ​​Desander Pump ExplosionProof For Harsh Drilling Environments
1150kg 0.75kW Desander Machine ​​Desander Pump ExplosionProof For Harsh Drilling Environments
1150kg 0.75kW Desander Machine ​​Desander Pump ExplosionProof For Harsh Drilling Environments
1150kg 0.75kW Desander Machine ​​Desander Pump ExplosionProof For Harsh Drilling Environments
1150kg 0.75kW Desander Machine ​​Desander Pump ExplosionProof For Harsh Drilling Environments
1150kg 0.75kW Desander Machine ​​Desander Pump ExplosionProof For Harsh Drilling Environments
1150kg 0.75kW Desander Machine ​​Desander Pump ExplosionProof For Harsh Drilling Environments
1150kg 0.75kW Desander Machine ​​Desander Pump ExplosionProof For Harsh Drilling Environments
Specifications
Place of Origin :
Sichuan，China
Brand Name :
XBSY
Certification :
USE 18000,USE14000，EAC，CE，ISO9000
MOQ :
1
Packaging Details :
Ply Wood Box,iron box
Delivery Time :
1-2 months
Payment Terms :
TT
Supply Ability :
1000
Price :
Price Negotiable
Model :
CSS / 250 × 3-A
Vibaration Track :
Liner
Motor Power :
2 × 0.75 kW
Screen Size :
1053 × 697 mm
Screen Number :
2
Cyclone Specifications :
250
Cyclone Number :
3
Tilt Adjustment Range :
-1° ~ +5°
Pressure :
0.15 ~ 0.3 MPa
Power :
AC 380V / 50HZ
Explosion-proof Grade :
Ex d II B T4 Gb
Description

​​Explosion-Proof Desander Pump (Ex d II B T4 Gb) for Harsh Drilling Environments | Customizable​

  1. Certified for hazardous environments (Ex d II B T4 Gb), the motor housing prevents ignition risks in oil/gas zones. The full-wrap anti-splash enclosure reduces mud leakage by 70%, protecting operators and equipment. Dual-bearing support and mechanical seals eliminate lubricant contamination, complying with ISO 9001 safety standards for petroleum machinery.
    Pre-assembled skid base enables plug-and-play installation in 3 hours. Compatible with all major shale shaker brands via standardized flange connections. Integrated control panel with overload alerts and auto-shutdown functions. Optional IoT sensors for real-time monitoring of pressure and solids content.

  2. 1150kg 0.75kW Desander Machine ​​Desander Pump ExplosionProof For Harsh Drilling Environments

Features
High-quality motor - adapt to the harsh environment of outdoor explosion-proof use.
Frame screen & adjustable deck angle - easy and reliable to replace, maintenance-free.
Compact arrangement and easy operation.
Patented fast pressing screen - easy to replace the screen.
Anti-loosening thread technology - reliable connections in vibrating environments.
All-round anti-splash – significantly reduces mud splash.
Heavy-duty anti-corrosion coating - ensures the long-term use of the equipment.

Product Desander
Model CSS / 250 × 3-A
Vibaration Track Liner
Motor Power 2 × 0.75 kW
Screen Size 1053 × 697 mm
Screen Number 2

Cyclone Specifications

 250
Cyclone Number 3
Tilt Adjustment Range -1° ~ +5°
Pressure 0.15 ~ 0.3 MPa
Power AC 380V / 50HZ
Explosion-proof Grade Ex d II B T4 Gb
L×W×H L 1990 × W 1000 × H 1995 mm
Weight 1150kg
Notes 1. The models in the table are only examples, desander cyclone specifications(250/300) and quantities(2/3) can be configured according to user requirements.
2. Desilter cyclone specifications(100/125) and quantities(10/12) can be configured according to user requirements.
