Efficient Deep Hole Drilling Machine BTA Hole Drilling Tool Industrial For Cast Iron Workpiece
Efficient Deep Hole Drilling Machine BTA Hole Drilling Tool Industrial For Cast Iron Workpiece
Specifications
Brand Name :
ARNOLD
Place of Origin :
China
Certification :
ISO9001:2000
MOQ :
2
Price :
40—300 USD
Packaging Details :
standard packaging
Delivery Time :
7-15day
Supply Ability :
1000000 Piece/Pieces per Month
Cutting Tool Material :
High-speed Steel
Cutting Tool Geometry :
Single Flute
customized support :
OEM, ODM
Machine Type :
Deep Hole Drilling Machine
Application :
Deep Hole Drilling
Drilling Depth Range :
Up To 1000mm
Workpiece Material :
Steel, Cast Iron, Aluminum
Drilling Speed :
Up To 1000mm/min
Description

Product Description:

BTA Deep Hole Drilling Overview

BTA Deep Hole Drilling is a metal cutting process known for its high efficiency in producing deep holes with depth-to-diameter ratios exceeding 10:1. The term "BTA" originates from Boring and Trepanning Association, representing a specialized drilling technique widely utilized in sectors including oil and gas, aerospace, mold making, hydraulic cylinders, gun barrels, and heavy machinery.

Features:

Key Features

Feature: Deep Drilling Capability
Capable of drilling holes several meters deep, with depth-to-diameter ratios of 100:1 or more.

Feature: Efficient Chip Evacuation
Chips are removed internally, minimizing clogging and improving stability.

Feature: High Productivity
Faster cutting speeds compared to gun drilling, ideal for diameters over Ø20mm.

Feature: Excellent Hole Quality
Produces holes with superior roundness, straightness, and surface finish.

Feature: Versatile Material Compatibility
Suitable for machining a wide range of materials including steel, alloys, and stainless steel.

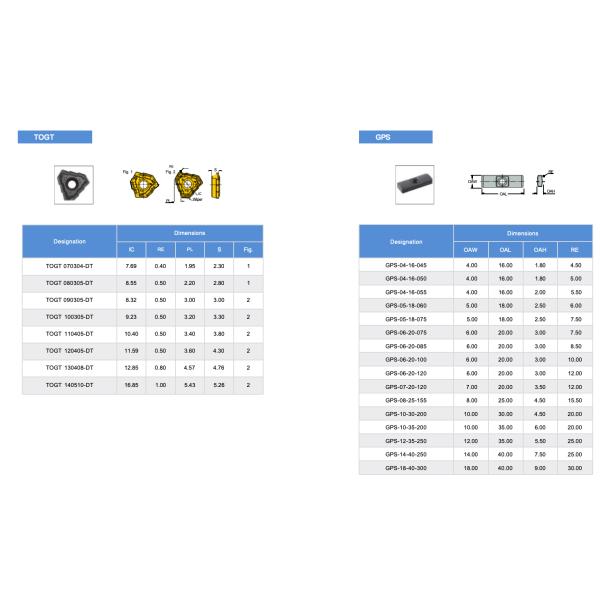

Technical Parameters:

Efficient Deep Hole Drilling Machine BTA Hole Drilling Tool Industrial For Cast Iron Workpiece

Diameter range(mm)

Insert

Guide Pads

14.00-15.99

TOGT 070304-DT

GPS-05-18-060

16.00-18.00

TOGT 080305-DT

GPS-05-18-075

18.01-20.00

TOGT 090305-DT

GPS-06-20-085

20.01-21.00

TOGT 100305-DT

GPS-06-20-085

21.01-21.99

TOGT 100305-DT

GPS-06-20-100

22.00-25.00

TOGT 110405-DT

GPS-06-20-100

25.01-28.00

TOGT 120405-DT

GPS-06-20-120

28.01-29.99

TOGT 130408-DT

GPS-06-20-120

30.00-32.00

TOGT 130408-DT

GPS-07-20-120

32.01-39.00

TOGT 140510-DT

GPS-07-20-120

39.01-40.00

TOGT 140510-DT

GPS-08-25-155

Applications:

Typical Applications

Oil & Gas: Drilling operations are commonly performed on various components in the Oil & Gas industry, including drill collars, tubing, and casing.

Hydraulics: Machining processes are utilized for creating precise hydraulic cylinder bores in this sector.

Defense & Firearms: Manufacturing activities involving gun barrels and artillery tubes are essential in the Defense & Firearms industry.

Mold & Die: Deep guide holes in large molds are accurately machined to precision within the Mold & Die sector.

Heavy Machinery: The drilling of main shafts or heat exchanger plates is a key operation in the Heavy Machinery domain.

FAQ:

Q: What is the brand name of this drilling product?

A: The brand name is ARNOLD.

Q: Where is this drilling product manufactured?

A: The product is made in China.

Q: What certification does this drilling product have?

A: The product is certified with ISO9001:2000.

Q: What is the minimum order quantity for this drilling product?

A: The minimum order quantity is 2 units.

Q: What are the packaging details for this drilling product?

A: The product comes in standard packaging.
