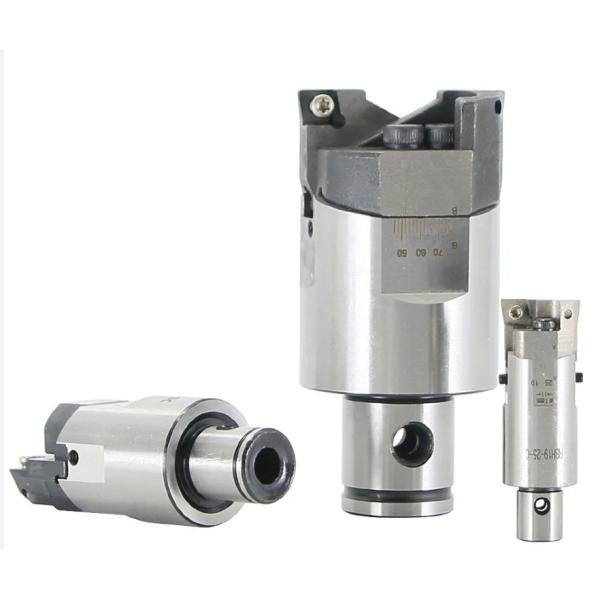

20-203mm Boring Range Milling Boring Tool Precision Boring Tool With Robust Design
20-203mm Boring Range Milling Boring Tool Precision Boring Tool With Robust Design
Specifications
Brand Name :
ARNOLD
Place of Origin :
China
Certification :
ISO9001:2000
MOQ :
negotiable
Price :
20—300 USD
Packaging Details :
standard packaging
Delivery Time :
7-15days
Supply Ability :
100000 sets per month
Boring Range :
20-203 Mm
Insert Shape :
Round
Type :
Rough Boring Head
Mounting Style :
Screw-On
Accuracy :
0.01 Mm
Application :
Rough Boring
Coolant Type :
Through Coolant
Material :
Steel
Description

Product Description:

A Rough Boring Head is a specialized tool used in machining. It is particularly essential for boring operations, where precision is crucial. In such operations, the tool enlarges a hole that has already been drilled or cast with high precision.

Features:

Key Features of a Rough Boring Head:

Purpose: Designed for removing a large amount of material quickly before a finish boring operation.

Construction:

  • Usually equipped with multiple cutting inserts or tools to handle heavier cutting loads.
  • Adjustable for different diameters.

Mounting: Fits into a machine spindle, often via a modular connection system (like a shank or adapter).

Balance: May be counterbalanced to reduce vibrations at high speeds.

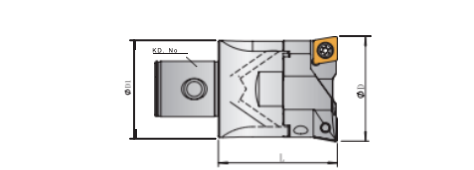

Technical Parameters:

20-203mm Boring Range Milling Boring Tool Precision Boring Tool With Robust Design

D

processing diameter

KD.NO.

Blade seat model

D1

L

LocK Screw combination

kg

weight

20 -26

CMR20 -26KD1(RSC2026)

1

CMR20 -26KD1

RSC-2026

18 . 7

32 . 5

RMM4xl6

25-33

CMR25 -33KD2(RSC2533)

2

CMR25-33KD2

RSC-2533

23 . 5

35 . 5

RMM5X16

32-42

CMR32-42KD3(RSC3242)

3

CMR32 -42KD3

RSC-3242

30 . 5

40

RMM6X20

41 -51

CMR32-42KD3(RSC4151)

RSC-4151

0 . 21

41 -54

CMR41 -54KD4(RSC4154)

4

CMR41 -54KD4

RSC-4154

38 . 5

47

RMM8X25

0 . 38

53- 66

CMR41 -54KD4(RSC5366)

RSC-5366

0 . 42

53-70

CMR53 -70KD5

RSC5370

5

CMR53 - 70KD5

RSC-5370

49 . 5

57

RMM10X30

0 . 75

69 - 86

CMR53 -7 KD5(RSC6986)

RSC- 6986

0 . 87

68 - 90

CMR68 - 110KD6(RSC6890)

6

CMR68- 110KD6

RSC- 6890

64

71

RMM10X35

88- 1lo

CMR68- 110KD6(RSC88110)

RSC- 88110

1 . 73

98- 126

CMR98- 153KD6(RSC98126)

6

CMR98- 153KD6

RSC- 98126

93

71

RMM12X40

2 . 32

125- 153

CMR98- 153KD6

RSC125153

RSC- 125153

2 . 58

98- 126

CMR98- 153KD7(RSC98126)

7

CMR98- 153KD7

RSC-98126

93

87

3 . 85

125- 153

CMR98- 153KD7(RSC125153)

RSC- 125153

4 . 11

148 - 176

 CMR148 -203KD6(RSC98126) CMR148-203KD6(RSC125153

6

CMR148 -203KD6

RSC- 98126

138

71

2 . 9

175-203

RSC- 125153

3 . 15

Differences Between Rough and Finish Boring Heads:

Feature

Rough Boring Head

Finish Boring Head

Purpose

Rough Boring Head: Material removal

Finish Boring Head: High-precision finishing

Inserts

Rough Boring Head: Multiple, heavier-duty

Finish Boring Head: Finer, fewer inserts

Accuracy

Rough Boring Head: Moderate (±0.1 mm typically)

Finish Boring Head: High (±0.01 mm or better)

Speed & Feed Rates

Rough Boring Head: Higher

Finish Boring Head: Lower

Applications:

Applications:

  • Large hole machining (e.g., engine blocks, valve bodies).
  • CNC machining centers and boring mills.
  • Often used in pre-finishing steps to reduce tool wear on precision boring tools.

Let me know if you want diagrams or recommendations for specific brands or machines.
