DW Type Exchangeable Tip Drills High Flexibility At 316 F/Mm/Min Environmentally Friendly
DW Type Exchangeable Tip Drills High Flexibility At 316 F/Mm/Min Environmentally Friendly
Specifications
Brand Name :
ARNOLD
Place of Origin :
China
Certification :
CE/ISO9001:2008
MOQ :
negotiable
Price :
50—300 USD
Packaging Details :
standard packaging
Supply Ability :
1000000 Piece/Pieces per Month
Model Number :
EP065-P
S(r/min) :
1400
Tool Life :
1100 Holes
Cutting :
2
Material :
High-speed Steel
Vc(m/min) :
85.7
Drilling Depth :
45
Material Grade :
P20
Drill type :
DW
Description

Product Description:

Exchangeable Tip Drilling is an innovative drilling technique that employs a tool body which can be reused and features interchangeable cutting tips. This method is designed to provide cost-effective solutions, ensure consistent performance, and minimize operational downtime, especially in high-volume machining processes.

The concept of Exchangeable Tip Drilling revolves around utilizing a tool body that can be used multiple times while replacing only the cutting tips, thus reducing the overall cost of tool maintenance. By offering a reusable tool body, this drilling method promotes cost-efficiency and sustainability in machining operations.

In addition to its economic benefits, Exchangeable Tip Drilling is known for delivering reliable and stable performance during high-volume machining tasks. The use of replaceable cutting tips ensures consistent quality and precision, contributing to enhanced productivity and accuracy in manufacturing operations.

Features:

Key Advantages of Exchangeable Tip Drilling:

Reduced Tooling Costs
Only the tip needs to be replaced, minimizing the cost per hole compared to solid drills.

Minimized Downtime
Quick and easy tip changes reduce machine setup time and increase productivity.

Consistent Hole Quality
Precision-manufactured tips ensure high repeatability in hole diameter, roundness, and surface finish.

Extended Tool Body Life
The durable tool holder can be reused for many cycles, reducing waste and total tool replacement frequency.

High Flexibility
A single tool body can accommodate different tip geometries and sizes for various materials and applications.

Lower Inventory Requirements
Fewer complete tools need to be stocked; just a range of tips and a few tool bodies are sufficient.

Environmentally Friendly
Less material waste compared to replacing entire drills supports sustainable manufacturing practices.

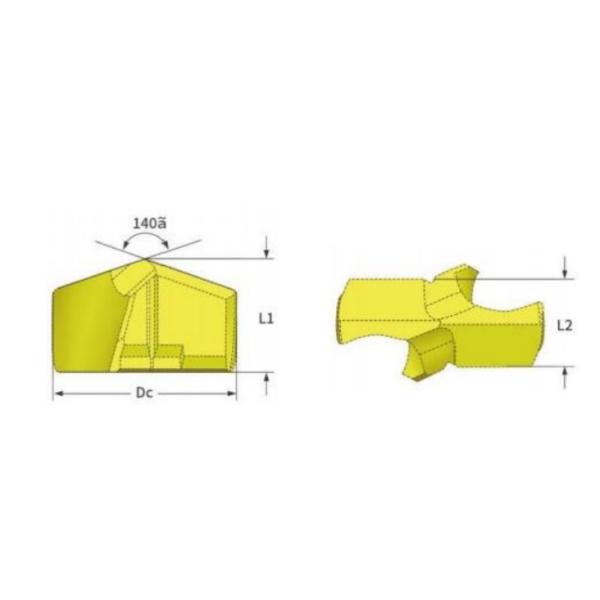

Technical Parameters:

DW Type Exchangeable Tip Drills High Flexibility At 316 F/Mm/Min Environmentally Friendly

Order Code

Cutting

Edges No.

Dc

L2

L1

Seat Size

Matching Dril Body

EP065-P-1700

EP065-P-1724

EP065-P-1740

EP065-P-1750

EP065-P-1760

EP065-P-1786

2

2

2

2

2

2

17.00 17.24 17.40 17.50 17.60

17.86

7.0

7.0

7.0

7.0

7.0

7.0

12.6

12.6

12.6

12.6

12.6

12.6

1

1

1

1

EP-G8810.-17-B20

EP065-P-1800

2

18.00

7.0

12.6

1

EP-G8810.-18-B20

EP065-P-1801

EP065-P-1826

EP065-P-1850

EP065-P-1875

EP065-P-1890

2

2

2

2

2

18.01 18.26 18.50 18.75

18.90

7.5

7.5

7.5

7.5

7.5

13.6

13.6

13.6

13.6

13.6

2

2

2

2

2

EP-G8810.-181-B25

EP065-P-1900

EP065-P-1927

EP065-P-1930

EP065-P-1933

EP065-P-1950

EP065-P-1990

2

2

19.00 19.27 19.30 19.33 19.50

19.90

7.5

7.5

7.5

7.5

7.5

7.5

13.6

13.6

13.6

13.6

13.6

13.6

2

2

2

2

2

2

EP-G8810.-19-B25

EP065-P-2000

EP065-P-2010

EP065-P-2060

EP065-P-2080

2

2

2

2

20.00 20.10 20.60

20.80

8.5

8.5

8.5

8.5

14.6

14.6

14.6

14.6

3

3

3

3

EP-G8810.-20-B25

EP065-P-2100

EP065-P-2143

EP065-P-2150

EP065-P-2190

2

2

21.00 21.43 21.50

21.90

8.5

8.5

8.5

8.5

14.6

14.6

14.6

14.6

3

3

3

EP-G8810.-21-B25

EP065-P-2200

2

22.00

8.5

14.6

3

EP-G8810.-22-B25

EP065-P-2201

EP065-P-2290

2

2

22.01

22.90

9.5

9.5

15.6

15.6

4

4

EP-G8810.-221-B25

EP065-P-2300

EP065-P-2342

EP065-P-2350

EP065-P-2390

2

2

2

2

23.00 23.42 23.50

23.90

9.5

9.5

9.5

9.5

15.6

15.6

15.6

15.6

4

4

4

EP-G8810.-23-B25

EP065-P-2400

2

24.00

9.5

15.6

4

EP-G8810.-24-B25

EP065-P-2401

EP065-P-2450

EP065-P-2461

EP065-P-2490

2

2

24.01 24.50 24.61

24.90

10.0

10.0

10.0

10.0

16.6

16.6

16.6

16.6

5

5

5

5

EP-G8810.-241-B32

EP065-P-2500

EP065-P-2527

EP065-P-2533

EP065-P-2540

EP065-P-2567

2

2

2

25.00 25.27 25.33 25.40

25.67

10.0

10.0

10.0

10.0

10.0

16.6

16.6

16.6

16.6

16.6

5

5

5

5

5

EP-G8810.-25-B32

EP065-P-2600

2

26.00

10.0

16.6

5

EP-G8810.-26-B32

EP065-P-2601

EP065-P-2619

EP065-P-2650

EP065-P-2690

2

2

2

2

26.01 26.19 26.50

26.90

11.0

11.0

11.0

11.0

17.6

17.6

17.6

17.6

6

6

6

6

EP-G8810.-261-B32
Example Ordering:EP065-P-1900 such as EP065-P-1900(workpiece material type P);EP065-M-1900(workpiece material type M);EP065-S-1900(wokpiece material type S)

Applications:

Applications of Exchangeable Tip Drilling

Automotive Industry
Engine blocks, cylinder heads, transmission components
High-volume, high-speed drilling of cast iron, steel, and aluminum alloys

Aerospace Industry
Aircraft structural components, landing gear parts
Drilling of high-strength alloys like titanium and Inconel

General Machining
CNC machining centers, multi-spindle machines
Efficient holemaking in various mechanical parts and tools

Oil & Gas / Energy Sector
Valve bodies, pumps, and pipeline components
Deep hole drilling in tough materials like stainless steels

Heavy Equipment / Construction Machinery
Large frame components, gear housings, hydraulic systems
Durable drilling performance under high torque loads

Die & Mold Industry
Pre-drilling for EDM or cooling channels
Precision holemaking in hardened tool steels

Metal Fabrication
Structural steel fabrication, tubular assemblies
Fast and reliable drilling in beams, plates, and hollow sections
