Dc 12.5-42mm Carbide Tipped Drill Bits For Industrial Applications 8XD
Dc 12.5-42mm Carbide Tipped Drill Bits For Industrial Applications 8XD
Specifications
Brand Name :
ARNOLD
Place of Origin :
China
Certification :
CE/ISO9001:2008
MOQ :
negotiable
Price :
50—300 USD
Packaging Details :
standard packaging
Supply Ability :
1000000 Piece/Pieces per Month
Model Number :
EP-G88108
Function :
A Variety Of Drill Heads Are Available
Dc :
12.5-42
Material :
High-speed Steel
Suitable for materials :
P、M、K、N、S
customized :
Oem
Coating :
Titanium Nitride
Cutting :
2
Drill type :
Indexable Drill Bit, Customized Step Drills, Interchangeable Drills
Description

Product Description:

The drill body serves as the primary structural component of a drill bit, with the exception of the cutting edge and shank. It serves various functions such as supporting the cutting portion, transmitting drilling force, and aiding in chip removal while in operation.

Typically, the drill body incorporates elements like flutes for chip evacuation, margins for guidance, and a core for added strength. Some designs may also feature coolant channels to enhance drilling efficiency and extend tool life.

Commonly used materials for the drill body include high-speed steel (HSS), carbide, and coated alloys. It plays a critical role in ensuring stability, precision, and overall performance throughout drilling operations.

Features:

Drill Body – Features & Advantages
Key Features:
  • Spiral Flutes: Efficient chip removal and smooth drilling.
  • Strong Core: Ensures structural rigidity and reduces breakage.
  • Precision Margins: Improve hole accuracy and reduce vibration.
  • Optional Coolant Channels: Enhance heat dissipation in high-speed drilling.
Main Advantages:
  • Stable Performance: Maintains alignment during drilling.
  • High Durability: Made from wear-resistant materials like HSS or carbide.
  • Versatile Design: Suitable for various materials and machining environments.
  • Improved Productivity: Supports higher cutting speeds and longer tool life.

Technical Parameters:

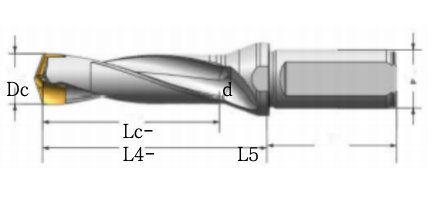

Dc 12.5-42mm Carbide Tipped Drill Bits For Industrial Applications 8XD

Order Code

Lc

mm

L4

mm

L5

mm

d

mm

Seat size

Dc

Dc

max

EP-G88108-125-B16

EP-G88108-13-B16

EP-G88108-135-B16

EP-G88108-136-B16

EP-G88108-14-B16

119

119

119

129

48

16

C

12.50

13.00

129

48

16

C

13.00

13.50

129

48

16

C

13.50

13.50

128

128

137

48

16

B

13.51

14.00

137

48

16

B

14.00

14.50

EP-G88108-145-B20

128

137

48

20

B

14.50

14.50

EP-G88108-146-B20

139

150

50

20

A

14.51

15.00

EP-G88108-15-B20

139

150

50

20

A

15.00

15.50

EP-G88108-155-B20

139

150

50

20

A

15.50

15.87

EP-G88108-16-B20

156

169

50

20

1

15.88

17.00

EP-G88108-17-B20

156

169

50

20

1

17.00

18.00

EP-G88108-18-B20

156

169

50

20

1

18.00

18.00

EP-G88108-181-B25

176

191

56

25

2

18.01

19.00

EP-G88108-19-B25

176

191

56

25

2

19.00

19.99

EP-G88108-20-B25

193

207

56

25

3

20.00

21.00

EP-G88108-21-B25

193

207

56

25

3

21.00

22.00

EP-G88108-22-B25

193

208

56

25

3

22.00

22.00

EP-G88108-221-B25

211

224

56

25

4

22.01

23.00

EP-G88108-23-B25

211

224

56

25

4

23.00

24.00

EP-G88108-24-B25

211

224

56

25

4

24.00

24.00

EP-G88108-241-B32

232

250

60

32

5

24.01

25.00

EP-G88108-25-B32

232

250

60

32

5

25.00

26.00

EP-G88108-26-B32

232

250

60

32

5

26.00

26.00

EP-G88108-261-B32

248

265

60

32

6

26.01

27.00

EP-G88108-27-B32

248

265

60

32

6

27.00

28.00

EP-G88108-28-B32

EP-G88108-281-B32

248

265

60

32

6

28.00

28.00

265

281

60

32

7

28.01

29.00

EP-G88108-29-B32

265

281

60

32

7

29.00

30.00

EP-G88108-30-B32

265

281

60

32

7

30.00

30.00

EP-G88108-301-B32

286

303

60

32

8

30.01

31.00

EP-G88108-31-B32

286

303

60

32

8

31.00

32.00

EP-G88108-32-B32

EP-G88108-321-B40

286

303

60

32

8

32.00

32.00

301

324

70

40

9

32.01

33.00

EP-G88108-33-B40

301

324

70

40

9

33.00

34.00

EP-G88108-34-B40

301

324

70

40

9

34.00

35.00

EP-G88108-35-B40

319

341

70

40

9

35.00

36.00

EP-G88108-36-B40

319

341

70

40

9

36.00

36.00

EP-G88108-361-B40

EP-G88108-37-B40

338

359

70

40

10

36.01

37.00

338

359

70

40

10

37.00

38.00

EP-G88108-38-B40

EP-G88108-39-B40

EP-G88108-40-B40

EP-G88108-41-B40

EP-G88108-42-B40

338

357

357

377

377

359

70

40

10

38.00

39.00

377

70

40

10

39.00

40.00

377

397

397

70

40

10

40.00

41.00

70

40

10

41.00

42.00

70

40

10

42.00

42.00

Applications:

Application Areas of Drill Body

1. Mechanical Manufacturing

  • Drilling metal components
  • High-precision drilling in CNC machining
  • Used in automotive, machine tools, and industrial equipment production

2. Aerospace Industry

  • Drilling structural parts made of titanium or composites
  • Deep hole drilling with high heat and stability requirements

3. Construction and Structural Engineering

  • Drilling in concrete, brick, and other hard materials
  • Used for installation, reinforcement, or cable passage holes

4. Mold and Precision Machining

  • Drilling mold cavities, cooling channels, and other complex shapes
  • Suitable for small-diameter, high-precision drilling

5. Electrical and Electronics

  • Micro-hole drilling in printed circuit boards (PCBs) or connectors
  • Requires high drilling accuracy and surface finish

6. Oil and Mining Equipment

  • Part of specialized drilling tools such as core drills
  • Operates in high-impact, high-temperature, and high-torque environments
