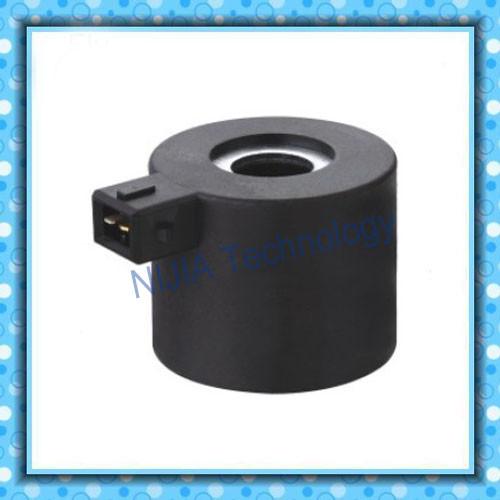

20W Waterproof Automotive Solenoid Landi Type Relieve Valve Coil Φ 16.1 × 41.7mm
20W Waterproof Automotive Solenoid Landi Type Relieve Valve Coil Φ 16.1 × 41.7mm
20W Waterproof Automotive Solenoid Landi Type Relieve Valve Coil Φ 16.1 × 41.7mm
20W Waterproof Automotive Solenoid Landi Type Relieve Valve Coil Φ 16.1 × 41.7mm
20W Waterproof Automotive Solenoid Landi Type Relieve Valve Coil Φ 16.1 × 41.7mm
20W Waterproof Automotive Solenoid Landi Type Relieve Valve Coil Φ 16.1 × 41.7mm
Specifications
Brand Name :
NIJIA
Model Number :
NJT211
Certification :
ISO9001CE
Place of Origin :
China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
T/T,western Union,Paypal,Credit card
Supply Ability :
100,000pcs per month
Delivery Time :
1-10 working days after received payment
Packaging Details :
Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Color :
black,or customized
Inner hole :
Φ 16.1 × 41.7mm
Standard power consumption :
20W
Coil insulation :
H
Connection type :
DEUTCH
Material :
Thermoplastic
Standard operating voltages: :
12-24 VDC Other voltages on request.
Operating temperature range: :
-40°C ÷ +120°C
Description

DC12V IP65 100%ED 20W Car Pressure Reducing Valve Coil Landi type Relieve Valve Coil Φ 16.1 × 41.7mm

The NJT211 coils are designed thermoplastic composite material or flame retardant temperature resistant

resin,widely used in compression release valve etc.

The NJT211 coil system includes a wide range of electrical coils suitable for cartridge valves for LPG LNG and CNG system.

Landi type Relieve Valve Coil NJT211 suitable for automotive valve system.

Φ 16.1 × 41.7mm DC12V 20W ,Other special voltage and power could be customized

It can be supplied with different power consumptions according to specific requirements.

Specifications:

item relieve valve coil
product code NJT211
specification DEUTCH
applied of voltage DC12V
resistant breakdown voltage ≥1800V 1MA/min
voltage range ±10%
insulation class H grade
protection grade IP65
ED 100%
temperature resistant range B. H
coated materials Thermoplastic composite material or flame retardant temperature resistant resin
advantages high temperature resistant, excellent moistureproof property
applications widely used in compression release valve etc.

Drawings:

20W Waterproof Automotive Solenoid Landi Type Relieve Valve Coil Φ 16.1 × 41.7mm

Competitive Advantage:

High temperature resistant, excellent moistureproof property,widely used in car dual-fuel LPG/CNG modified

system, pressure reducer,motorcycle device etc.

Coil other parameter:

Insulation temperature class

A

E

B

F

H

Maximum allowable temperature/degree

105

120

130

155

180

Permissible temperature rise(K)

60

75

80

105

125

Performance reference temperature/degree

80

95

100

120

145

Thermal margin

5

5

10

10

15

Maximum ambient temperature/degree

40

40

40

40

40
