AEB Injection Rail Auto Solenoid Coil DC 6V 18W 1Ω 2Ω 3Ω , Φ 18.9 × 23.8 mm
AEB Injection Rail Auto Solenoid Coil DC 6V 18W 1Ω 2Ω 3Ω , Φ 18.9 × 23.8 mm
AEB Injection Rail Auto Solenoid Coil DC 6V 18W 1Ω 2Ω 3Ω , Φ 18.9 × 23.8 mm
AEB Injection Rail Auto Solenoid Coil DC 6V 18W 1Ω 2Ω 3Ω , Φ 18.9 × 23.8 mm
AEB Injection Rail Auto Solenoid Coil DC 6V 18W 1Ω 2Ω 3Ω , Φ 18.9 × 23.8 mm
AEB Injection Rail Auto Solenoid Coil DC 6V 18W 1Ω 2Ω 3Ω , Φ 18.9 × 23.8 mm
AEB Injection Rail Auto Solenoid Coil DC 6V 18W 1Ω 2Ω 3Ω , Φ 18.9 × 23.8 mm
AEB Injection Rail Auto Solenoid Coil DC 6V 18W 1Ω 2Ω 3Ω , Φ 18.9 × 23.8 mm
AEB Injection Rail Auto Solenoid Coil DC 6V 18W 1Ω 2Ω 3Ω , Φ 18.9 × 23.8 mm
AEB Injection Rail Auto Solenoid Coil DC 6V 18W 1Ω 2Ω 3Ω , Φ 18.9 × 23.8 mm
AEB Injection Rail Auto Solenoid Coil DC 6V 18W 1Ω 2Ω 3Ω , Φ 18.9 × 23.8 mm
AEB Injection Rail Auto Solenoid Coil DC 6V 18W 1Ω 2Ω 3Ω , Φ 18.9 × 23.8 mm
AEB Injection Rail Auto Solenoid Coil DC 6V 18W 1Ω 2Ω 3Ω , Φ 18.9 × 23.8 mm
AEB Injection Rail Auto Solenoid Coil DC 6V 18W 1Ω 2Ω 3Ω , Φ 18.9 × 23.8 mm
Specifications
Brand Name :
NIJIA
Model Number :
NJT207
Certification :
ISO9001CE
Place of Origin :
China
MOQ :
1 pcs
Price :
negotiation
Payment Terms :
T/T,western Union,Paypal,Credit card
Supply Ability :
100,000pcs per month
Delivery Time :
1-10 working days after received payment
Packaging Details :
Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Product Name :
NJT207
Inner hole :
Φ 18.9 × 23.8 mm
Standard power consumption :
18W or customized
Coil insulation :
H
Resistance :
1Ω 2Ω 3Ω 5Ω 12Ω,other can be customized
Material :
Polyamide 66
Standard operating voltages: :
6-48 VDC Other voltages on request.
Operating temperature range: :
-40°C ÷ +120°C
Description

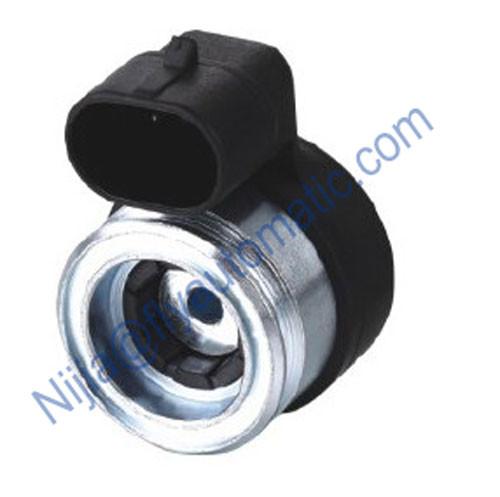

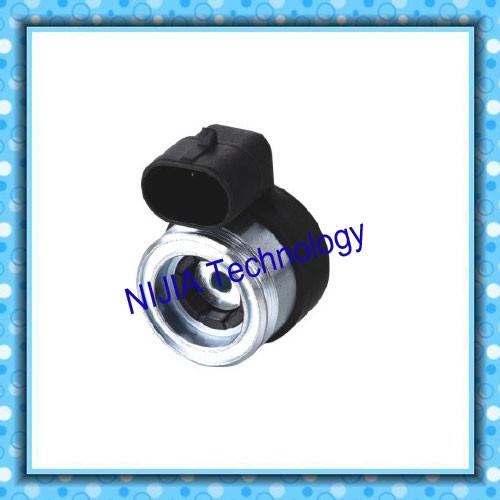

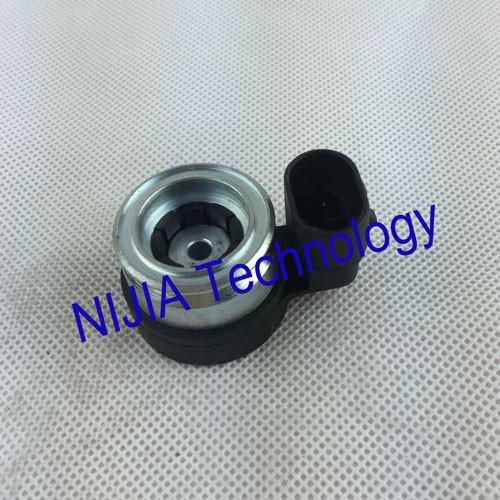

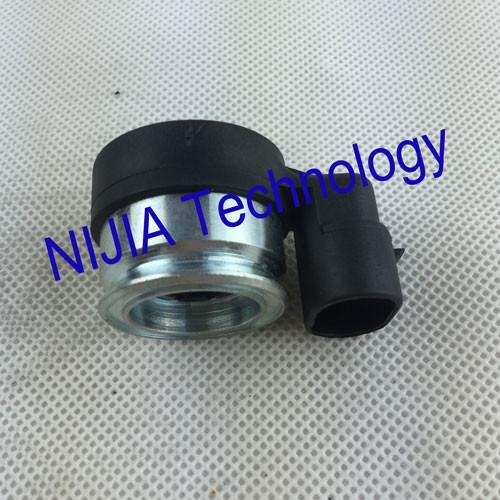

AEB injection rail Automotive solenoid coil Φ 18.9 × 23.8 mm DC6V 18W resistance 1Ω 2Ω 3Ω

The Automotive valve coil NJT207 suitable for injection rail.

It can be supplied with different power and resistance consumptions , according to specific requirements.

Other special voltage and power could be customized.

The NJT207 coil system includes a wide range of electrical coils suitable for cartridge valves for LPG CNGand

LNG AEB injection rail system.

Specifications:

1. Normal voltage :6VDC 12VDC

2. Normal power : 18W (other voltage and power can be customized)

3. Color : Black,(can be customized)

4. Inner Hole : Φ 18.9 × 23.8 mm

5. Protect class:IP65

6. Material : Polyamide 66

7. Insulation class : H

8. Connection Type : DEUTCH

9. Used to AEB injection rail
10. Heavy duty long service life

Drawings:

AEB Injection Rail Auto Solenoid Coil DC 6V 18W 1Ω 2Ω 3Ω , Φ 18.9 × 23.8 mm

AEB Injection Rail Auto Solenoid Coil DC 6V 18W 1Ω 2Ω 3Ω , Φ 18.9 × 23.8 mm

Applications

High temperature resistant, excellent moistureproof property,widely used in car dual-fuel LPG/CNG AEB injection rail system , automotive solenoid coil device etc.

Coil other parameter:

Insulation temperature class

A

E

B

F

H

Maximum allowable temperature/degree

105

120

130

155

180

Permissible temperature rise(K)

60

75

80

105

125

Performance reference temperature/degree

80

95

100

120

145

Thermal margin

5

5

10

10

15

Maximum ambient temperature/degree

40

40

40

40

40

Competitive Advantage:

1. Efficient equipment,creative research and development technology

2. Keep seeking high-quality products

3. Best service from the whole company.

4. Professional factory

5. Good package,Standard export packing
