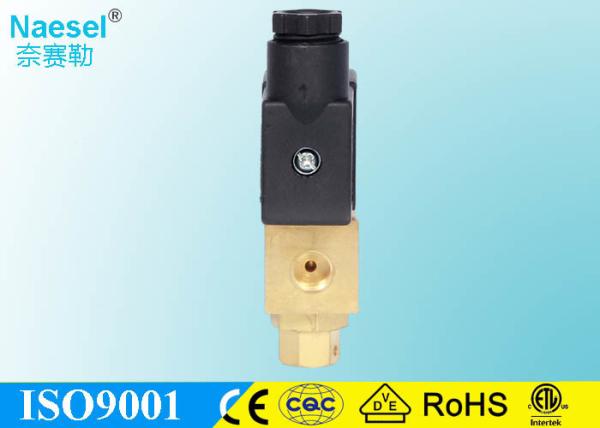

flow adjustable solenoid valve for fuel diesel oil 1 / 8 inch bspp

1. How To Order

Model Orifice Port Thread Body Seal Coil Voltage

NL070613 2.0 1-1/8" G- G B-Brass V-FKM S81B 1-DC12V 2.DC24V

2.5 E-EPDM

Flow adjustable solenoid valve for fuel diesel oil 1 / 8 inch bspp

Example : NL070613 GBV S81B1: NL070613 Series, Normal closed, 2.0mm orifice, G1/8", brass, Viton seals, AC220V.

2.Solenoid Valve Specification

Medium: Air, fuel, diesel etc. Temperature: EPDM seal:-30℃~120℃(-22℉~248℉)

Orifice: 2.0, 2.5 (mm) Viton seal:-30℃~150℃(-22℉~302℉)

Pressure: NL070613:0.00MPA~1.6MPA (0.0PSI~230PSI) Port thread: G Thread

Port size: 1/8”.

Voltage: DC:12VDC, 24VDC Coils: S81B, 6.5W(DC),Coil IP65,100%ED

Tolerance: ±10% Character: 1. Compact design to save the space.

Material: Body- Brass, stainless steel, Aluminum, 2. Direct acting, 0 bar generated.

Seal- VITION, NBR,

Armature- SS304

Plunger- SS430F

Stop- SS430F

Spring- SS304

Shading Rings- Copper

Special Coils: Latching coil DC6~24V

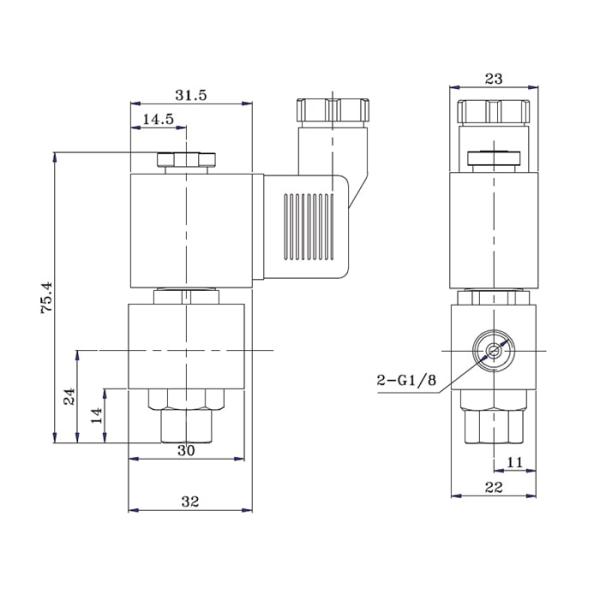

3. Dimension

4. Specification Detail

5. Packing Detail

Plastic Sealed packing to prevent metal being oxidized.

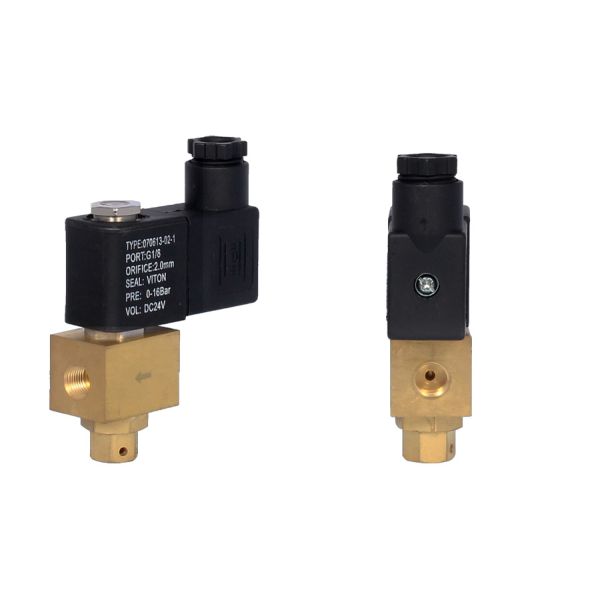

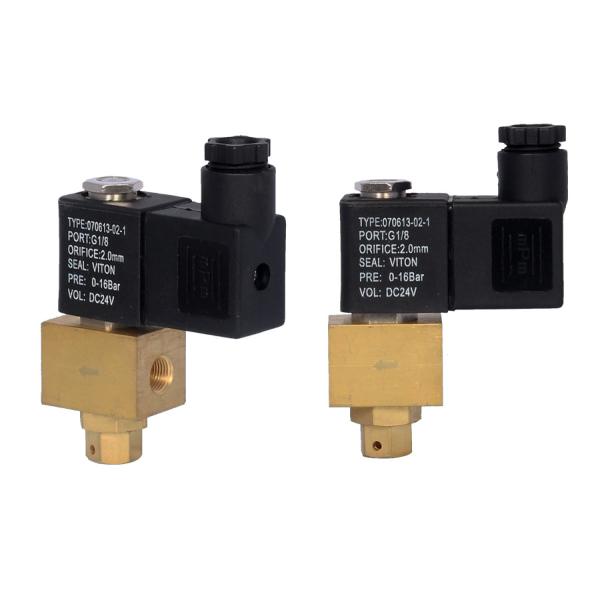

6. More Product Photo and Certifications
