Specifications
Model Number :
CDN-D011A
Brand Name :
CDN
Place of Origin :
Guangdong, China
Certification :
CE, Rohs
MOQ :
10
Price :
$3.80-4.05
IP Rating :
IP68
Input Voltage :
1.2V
Luminous Efficiency :
0.12 lm/w
Luminous Flux :
100 lm
Light Source :
LED
Working Temperature :
-25 - 70 ℃
Material :
Aluminum Alloy
Solar Panel :
0.3w Mono-crystalline Silicon
Battery :
NI-MH 1.2V/800MAH
LED Count :
2pcs/side
LED Color :
Red Blue Yellow White Green
Size :
105*105*23mm
Weight :
0.33kg/pc
Compression Resistance :
>10 tons
View Distance :
> 500m
Description

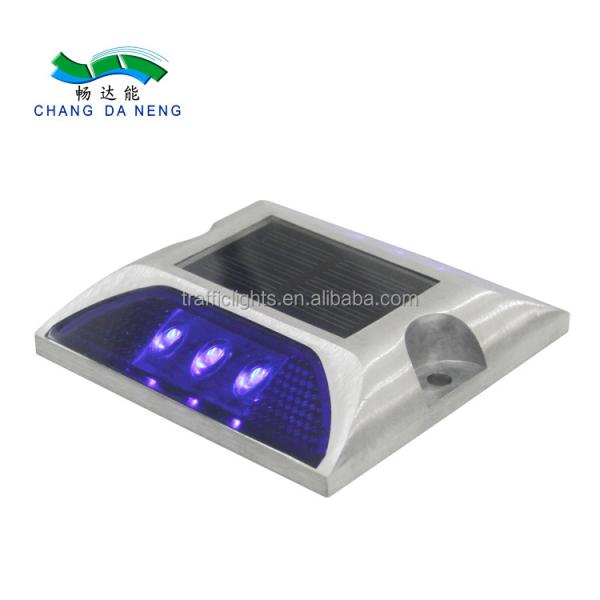

Factory price reflective aluminum solar road stud

Reduce Traffic Congestion, stay away from traffic accident, save more life!

Product Description

1.Power Supply: Solar Cell(monocrystalline silicon )2.5V/120MA
2.Power storage: NI-MH Battery 1.2V/800MAH
3.Working Time: Under the normal light intensity,it can work over 72h when it basked for 8h.
4.Aluminum alloy body with high resist compression >10 tons
5 Display: bright anti-fog LED, color can be customized
6.working mode: flashing (2Hz + 20%) and steady light
7.Luminance:front light < 800Lux
8.View distance: > 500m

9.Work Life: > 3 years.

10.Work temperature: -20+70 degree centigrade

11.Waterproof : IP68

Detailed Images

IP68 Solar Road Stud 105x105mm Aluminum Alloy LED Marker LightIP68 Solar Road Stud 105x105mm Aluminum Alloy LED Marker LightIP68 Solar Road Stud 105x105mm Aluminum Alloy LED Marker LightIP68 Solar Road Stud 105x105mm Aluminum Alloy LED Marker Light

Product features

1.Easy to install. Solar Panel ,low power consumption.
2.High luminous intensity. Anti -high (low) temperature.
3.Long lifespan > 3 years. Passed CE,ROHS.

4.Long standby time, still can flashing when there is no sun for 15 days.

5.IP68 waterproof. Our road stud still can work normally after 72 hours dipping in water. IP68 Solar Road Stud 105x105mm Aluminum Alloy LED Marker Light IP68 Solar Road Stud 105x105mm Aluminum Alloy LED Marker Light

IP68 waterproof Load-bearing > 20tons

6. Aluminum alloy shell, load-bearing is over 20tons, can hold a car on the road.

7.Good warranty for quality, one year warranty at least, 2 year warranty can do as client's require!

Company information

We are at your service 24 hours!

We support customer's own design!

We support OEM design orders!

IP68 Solar Road Stud 105x105mm Aluminum Alloy LED Marker LightIP68 Solar Road Stud 105x105mm Aluminum Alloy LED Marker Light

Our Project

IP68 Solar Road Stud 105x105mm Aluminum Alloy LED Marker LightIP68 Solar Road Stud 105x105mm Aluminum Alloy LED Marker Light

Packaging & Shipping

1.Two pieces pack in one box , 60pcs in one carton box , carton size: 400*275*280mm.

IP68 Solar Road Stud 105x105mm Aluminum Alloy LED Marker Light

2. Ship by UPS ,DHL,FEDEX, by sea or air accoring to clients request

IP68 Solar Road Stud 105x105mm Aluminum Alloy LED Marker Light

Installation

Spike installation is not a complicated matter, but there are many details that require attention. These details play an important role in ensuring the quality and service life of spike.

1. This is most important, please placed in isolation facilities installation safety first, then everyone should be in the safe facility when installing.

2. Determine the installing location. To ensure the installing location is smooth, should level scalable, craks, uneven pavement first, also please be sure the solar panel is being shined by sunlight .

3. To ensure the installing location dry, should clean up it with the brush,

4. Evenly apply appropriate glue on the spike;

5. Firmly press the spike on the installation location with right direction, if the glue is more, please must clean it up;

6. If it is aluminum alloy with pillar, the hole depth must be 1cm deeper than the pillar, hole diameter must be 2mm larger than pillar diameter.

7. After installing, please check it every 2h, to ensure that all the spikes are installed at the right direction and good condition.

8. After the glue curing for 4 hours, removed installation isolation facilities.

FAQ

Q1. What's the MOQ?
It's 10pcs, but if you need less, it’s ok, but the price will be changed based on your quantity.

Q2.What is your quality warranty?
All of our models are with 2 years quality warranty.

Q3. What’s the lead-time for orders?
Normally it takes 5 working days after receiving payment.

Q4. How long will the solar road stud work during Rainy and Foggy day?

Solar Road Stuc can work 15 rainy and foggy day after full charged.

Q5.Can the solar road stud can work well in tropical Counties?

Solar road stud is equiped with Anti-high temperature battery. it can work well in -20 to +70.

Q6. Can I have a sample order for road stud?

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q7.How do you ship the goods and how long does it take to arrive?

We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
