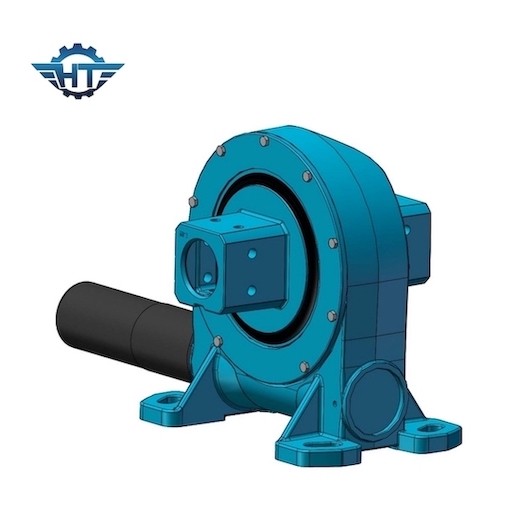

Single Axis Small Backlash Slewing Gear Drive Reducer For Sun Tracking Systems
Single Axis Small Backlash Slewing Gear Drive Reducer For Sun Tracking Systems
Single Axis Small Backlash Slewing Gear Drive Reducer For Sun Tracking Systems
Single Axis Small Backlash Slewing Gear Drive Reducer For Sun Tracking Systems
Specifications
Brand Name :
HangTuo
Model Number :
VE3"
Certification :
CE, ISO9001
Place of Origin :
Changzhou, China
MOQ :
1 piece
Price :
USD 120~504 / pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
15~45 days
Packaging Details :
plywood box
Material :
QT
Feature :
vertical small size
Gear Ratio :
31:1
Efficiency :
40%
Color :
RAL 9006
Application :
Sun Tracking Systems
Driver :
24VDC Motor
Description

Single Axis Small Backlash Slewing Gear Drive Reducer For Sun Tracking Systems

Small Backlash Slewing Gear Description

The slewing drive is a new type of slewing product, usually called slewing ring, which is usually composed of worm, slewing ring, housing, motor and other components. Since the core components are slewing bearings, they can simultaneously withstand axial forces, radial forces, and overturning moments. Compared with traditional rotary products, the new slewing drive features easy installation, easy maintenance and a greater degree of installation space.

Single Axis Small Backlash Slewing Gear Drive Reducer For Sun Tracking Systems

VE Model Performance Parameters

VE Model Performance Parameters
Model Rated Output Torque (N.m) Holding Torque (kN.m) Tilting Torque (kN.m) Axial Load (kN) Radial Load (kN) Ratio Efficiency

Precision

(Degree)

 IP Working Tep(℃) Self-locking Weight (kg)
3" 806 9 5 22 15 31:1 40% ≤0.15 66 -40～+80 Yes 12kg
5" 962 30 6 16 27 37:1 40% ≤0.15 66 -40～+80 Yes 18kg
7" 7344 60 10 34 58 51:1 40% ≤0.15 66 -40～+80 Yes 32kg
8" 8000 70 14 50 80 50:1 40% ≤0.15 66 -40～+80 Yes 28kg
9" 8784 80 16 60 130 61:1 40% ≤0.15 66 -40～+80 Yes 52kg
12" 11232 100 25 77 190 78:1 40% ≤0.15 66 -40～+80 Yes 65kg
14" 12240 120 48 110 230 85:1 40% ≤0.15 66 -40～+80 Yes 88 kg
17" 14688 136 67 142 390 102:1 40% ≤0.15 66 -40～+80 Yes 135 kg
21" 18000 140 89 337 640 125:1 40% ≤0.15 66 -40～+80 Yes 192 kg
25" 21600 150 112 476 950 150:1 40% ≤0.15 66 -40～+80 Yes 251 kg

Applications

The vertical small size slewing gear can be applied in single axis solar tracking systems.
