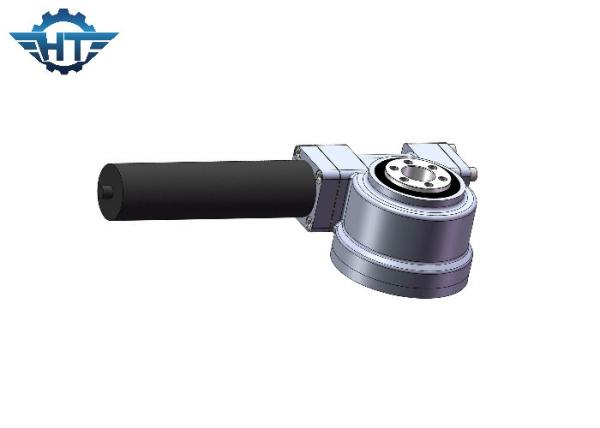

SE3 Single Worm Small Slew Drive Gear For Single Axis Sun Tracking System
SE3 Single Worm Small Slew Drive Gear For Single Axis Sun Tracking System
SE3 Single Worm Small Slew Drive Gear For Single Axis Sun Tracking System
SE3 Single Worm Small Slew Drive Gear For Single Axis Sun Tracking System
SE3 Single Worm Small Slew Drive Gear For Single Axis Sun Tracking System
SE3 Single Worm Small Slew Drive Gear For Single Axis Sun Tracking System
Specifications
Brand Name :
HangTuo
Model Number :
SE3
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 piece
Price :
USD 100~1175/ pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
15~45 days
Packaging Details :
plywood box
Model :
SE3
Self-lock :
Yes
Certificate :
ISO9001,CE
Warranty :
5~10 years
Material :
QT
Application :
Single Axis Sun Tracking System
Color :
Customized
Accuracy :
≤0.15
Description

SE3 Single Worm Small Slew Drive Gear For Single Axis Sun Tracking System

Single Worm Small Slew Drive Description

SE series slewing drive is a kind of large rotary drive with special structure, which can bear large axial load, radial load and overturning moment at the same time. It has many functions, such as supporting, rotating, driving, fixing and so on. Generally speaking, the slewing bearing can be applied in CNC machines, construction machinery ,robot, satellite antenna, solar energy, wind energy etc.

When a slewing drive is used in solar energy industry, users have to choose an ideal one according to the actual area of solar panels. 3 inch slewing drive is suitable for solar power system coming with 3- 5 m2 solar panel, 7 inch for 10-17 m2 solar panel, 9 inch for 18-30 m2, 12 inch for 31-45 m2, and 14 inch for 46-60 m2. These are provided for your reference. For more specific and detailed information, please contact me directly.

Performance Parameters of SE series

SE Model Performance Parameters
Model

Rated Output

Torque (N.m)

Tilting

Torque

(N.m)

Holding

Torque

(N.m)

Axial

Load

(kN)

Radial

Load

(kN)

 Ratio Efficiency

Precision

(degree)

 IP

Working Tep.

(℃)

Self-

locking

Weight

(kg)
1" 400 1000 1800 22 12 32:1 40% ≤0.1 66 -40～+120 Yes 6
3" 600 1500 3000 30 16 31:1 40% ≤0.1 66 -40～+120 Yes 8
5" 800 6000 9200 68 27 37:1 40% ≤0.1 66 -40～+120 Yes 12
7" 2000 13500 13200 132 58 57:1 40% ≤0.1 66 -40～+120 Yes 21
9" 4400 45000 30800 340 130 61:1 40% ≤0.1 66 -40～+120 Yes 49
12" 5800 54400 40560 480 190 78:1 40% ≤0.1 66 -40～+120 Yes 61
14" 6550 68000 54200 680 230 85:1 40% ≤0.1 66 -40～+120 Yes 63
17" 9400 135600 65040 980 390 102:1 40% ≤0.1 66 -40～+120 Yes 105
21" 16000 203400 81000 1600 640 125:1 40% ≤0.1 66 -40～+120 Yes 149
25" 21000 271160 89000 2400 950 150:1 40% ≤0.1 66 -40～+120 Yes 204

Installation

The SE slew drives can be mounted in two different ways, vertically or horizontally which is based on the evalution of the protection level and the installation demand of the project
