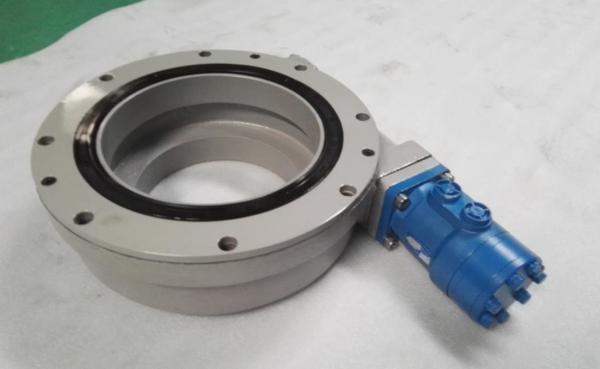

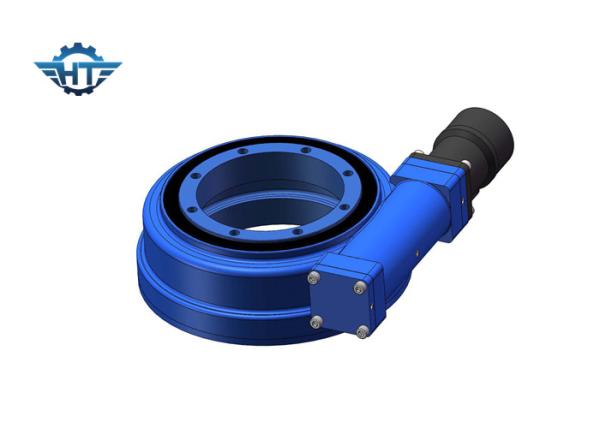

SE12 High Torque Hydraulic Slew Drive For Construction Machinery And Cranes
SE12 High Torque Hydraulic Slew Drive For Construction Machinery And Cranes
SE12 High Torque Hydraulic Slew Drive For Construction Machinery And Cranes
SE12 High Torque Hydraulic Slew Drive For Construction Machinery And Cranes
Specifications
Brand Name :
HangTuo
Model Number :
SE12"
Certification :
CE, ISO9001
Place of Origin :
Changzhou, China
MOQ :
1 piece
Price :
USD 100~1200/pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
15~45 days
Packaging Details :
plywood box
Model :
SE12
Gear ratio :
78:1
Application :
Construction Machinery
Driver :
Hydraulic Motor
Warranty :
5~10 years
Certificate :
ISO9001, CE
Installation :
Horizontal
Description

SE12 High Torque Hydraulic Slewing Bearing For Construction Machinery And Cranes

Description

Slewing ring drive, also known as slewing bearings or turntable bearing, which is able to sustain the high axial load, radial load and tilting moment. It is known as: “machine joints”, it is the essential machinery transmission parts between two objects which need to be relative rotary motion. It can transmit a torque for rotating. The rotation can be in a single axis, or in multiple axes together.

Advantages


1. It can bear axial force, radial force and tilting moment simultaneously

2. Saving space in facilities

3. Maximize load capacity in a compact design

4. Extensive lifespan

5. Reduced maintenance costs

Performance Table of SE Series

Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
1” 32:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3” 31:1 600 1500 3000 30 16 40% ≤0.1 Yes 8
5” 37:1 800 6000 9200 68 27 40% ≤0.1 Yes 12
7” 57:1 2000 13500 13200 132 58 40% ≤0.1 Yes 21
9” 61:1 4400 45000 30800 340 130 40% ≤0.1 Yes 49
12” 78:1 5800 54400 40560 480 190 40% ≤0.1 Yes 61
14” 85:1 6550 68000 54200 680 230 40% ≤0.1 Yes 63
17” 102:1 9400 135600 65040 980 390 40% ≤0.1 Yes 105
21” 125:1 16000 203400 81000 1600 640 40% ≤0.1 Yes 149
25” 150:1 21000 271160 89000 2400 950 40% ≤0.1 Yes 204

Application

Slewing drive is widely applied in modular trailers, all types of cranes, aerial working platform, solar tracking systems and wind power systems. Electric and planetary gearboxes can be designed according to customer's requirment.
