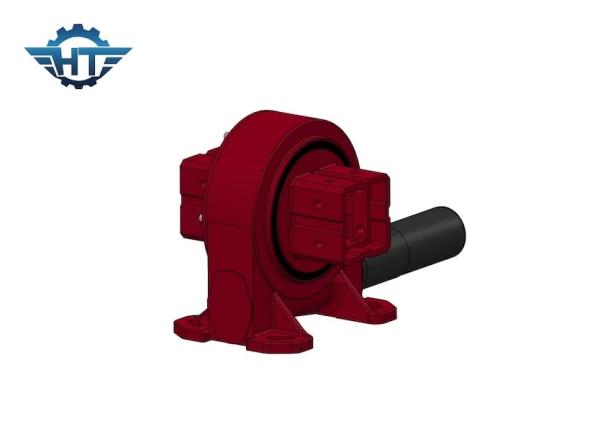

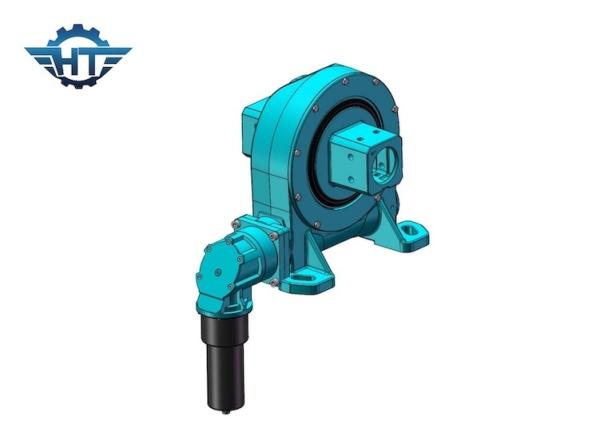

VE9 Vertical Solar Tracker Slew Drive 9 Inches For Concentrated Power System
VE9 Vertical Solar Tracker Slew Drive 9 Inches For Concentrated Power System
VE9 Vertical Solar Tracker Slew Drive 9 Inches For Concentrated Power System
VE9 Vertical Solar Tracker Slew Drive 9 Inches For Concentrated Power System
Specifications
Brand Name :
HangTuo
Model Number :
VE9"
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 piece
Price :
USD 100~1600/ pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
15~45 days
Packaging Details :
plywood box
Material :
50Mn, 42CrMo
Model :
9 inches
Gear Ratio :
61:1
Efficiency :
40%
Precise :
≤ 0.1
Application :
Concentrated Solar Power System
Color :
Standard silver gray
Life Cycle :
30 years field life
Description

VE9 Vertical Solar Tracker Slew Drive For Concentrated Solar Power System

VE9 Slewing Drive Description

There are mainly three types of CSP stations: tower/Heliostat which using sde slewing drive or se slewing drives; parabolic which using se slewing drives or ve slewing drives; fresnel which using ve slewing drives or se slewing drives.

The slewing drive is essencial part of CSP, concentrated solar power photovoltaic. Concentrated solar photovoltaics and concentrated solar thermal have optics that directly accept sunlight, typically used to orient a mirror and redirect sunlight along a fixed axis towards a stationary receiver. So the system must be angled correctly to collect the heat. All concentrated solar systems must have slewing drive trackers because the systems do not produce energy unless directed correctly toward the sun. Besides, it need high precision in order to make sure the system can orient sun all the time and make full use of the sunlight.

Vertical Slew Drive Performance Parameters

Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree Yes kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 13kg
5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 18kg
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 28kg
8" 51:1 2250 11200 a50 80 20400 40% ≤0.1 Yes 35kg
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 51kg
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 61kg
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 78 kg
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 105 kg
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 185 kg
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 244 kg

Features

With ease-of-use features and high performance, our slewing drive solar trackers are a simpler, powerful solar solutions to make the system move toward the sun from dawn to dusk to maximize energy production thoughout the day.
