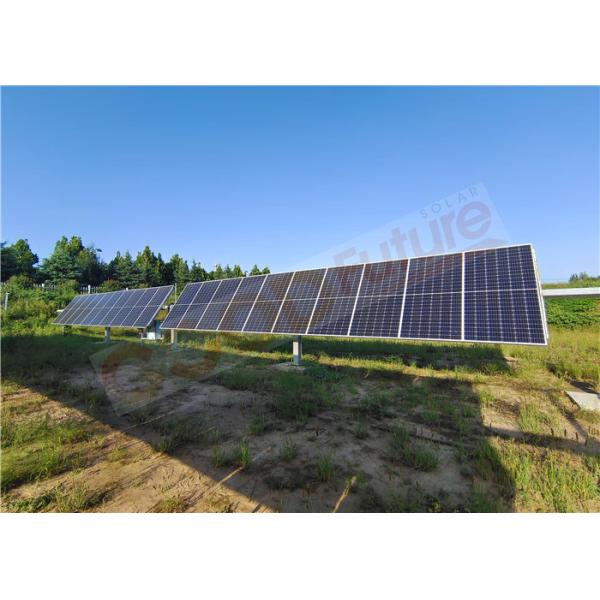

Off Grid 1 Axis Tracking Solar Panel System Night Position
Off Grid 1 Axis Tracking Solar Panel System Night Position
Off Grid 1 Axis Tracking Solar Panel System Night Position
Off Grid 1 Axis Tracking Solar Panel System Night Position
Off Grid 1 Axis Tracking Solar Panel System Night Position
Off Grid 1 Axis Tracking Solar Panel System Night Position
Off Grid 1 Axis Tracking Solar Panel System Night Position
Off Grid 1 Axis Tracking Solar Panel System Night Position
Specifications
Brand Name :
Good Future Solar
Model Number :
MG/ZG/YG/JG.ETC SOLAR SYSTEM
Certification :
CE/ISO/BV/SGS
Place of Origin :
China
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000MW per Month
Delivery Time :
30 Working Days after design confirm
Packaging Details :
Neutral packing
Product :
Off Grid Single Axis Solar Panel Tracker System
Driving System :
Slew drive for tracker
Operation Temperature :
-40℃ - 70℃
String-Powered :
Yes
Night Position :
Yes
Ground Coverage Ratio :
≥ 25%
Description

Off Grid Single Axis Solar Panel Tracker System

Working principle:
Ground mounting single axis solar tracking system components slew drive solar panel mounting brackets is controlled by the tracking controller, with simple structure, easy installation, flexible response, good reliability and strong fault identification ability. Compared with traditional fixed inclination installation, the generating capacity can be increased by 15%-20% (depending on local conditions).

Functions:
1. Single row independent drive unit, no connection between row and row, to ensure convenient traffic between square array;
2. Slew drive design, with high transfer efficiency and good environmental adaptability, the drive unit can be maintained free for 25 years;
3. Adopt the form of self-power supply, without external power supply;
4. Independently developed MCU microcomputer control system;
5. Intelligent battery management system (BMS) and automatic alarm functions can ensure the system's long-term reliable operation.

Technical Parameters of single axis solar tracking system

Off Grid Single Axis Solar Panel Tracker System
Tracking Range 士 60°
Driving System Slew drive, 28VDC motor
Modules per Tracker Max.90 modules per tracker
System Voltage 1000 V or 1500 V
Ground Coverage Ratio ≥ 25%
Power Consumption 0.2-0.5kWh/day
Power Supply Mode Powered by PV strings, back-up lithium battery
Standard Design Wind Speed 18m/s
Module Supported All commercially available modules
Operation Temperature -40℃ - 70℃
Control Algorithm Astronomical algorithms + Tilt sensor close loop
Tracking Accuracy ≤ 1°
String-Powered Yes
Backtracking Yes
Communication Options LoRa wireless /RS 485 cable
Night Position Yes

Off Grid 1 Axis Tracking Solar Panel System Night PositionOff Grid 1 Axis Tracking Solar Panel System Night PositionOff Grid 1 Axis Tracking Solar Panel System Night PositionOff Grid 1 Axis Tracking Solar Panel System Night Position
